Satellite 3 in 4 Multiswitch

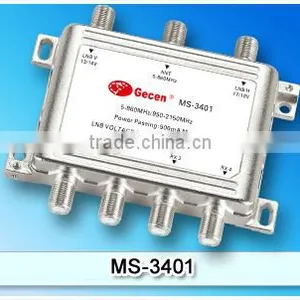

Satellite 3 in 4 Multiswitch thumbnail-1
Satellite 3 in 4 Multiswitch thumbnail-2
Satellite 3 in 4 Multiswitch thumbnail-3
Satellite 3 in 4 Multiswitch photo-1
Satellite 3 in 4 Multiswitch photo-2
Satellite 3 in 4 Multiswitch photo-3
US$ 6 - 8 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
MS-3401
Contact Supplier Request Quote Chat Now
Zhuhai Gecen Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ZHUHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM
Model Number MS-3401

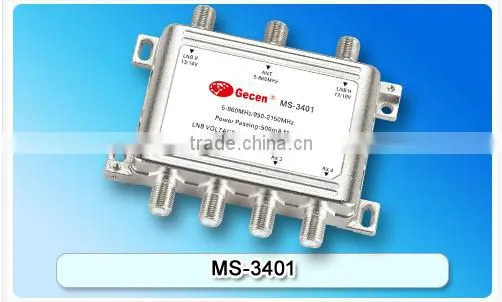

satellite 3 in 4 Multiswitch



Product Name :3 in 4 Multiswitch

Model :MS-3401

Packing Information

Giftbox Size :mm

Carton Size :cm

Features:

  • Zinc die-cast housing, nickel-plated
  • Excellent quality component, professional circuit design and low loss
  • 13/18V supplied by satellite receiver through coaxial cable to switch corresponding port
  • Capable of connecting two SATV signals, one ANT signal or FM broadcast simultaneously
  • Two SATV signals switched through 13/18V
  • Distributed into four subscribers to use simultaneously and no mutual interference
  • Applicable to multi-satellite and multi-receiver usage

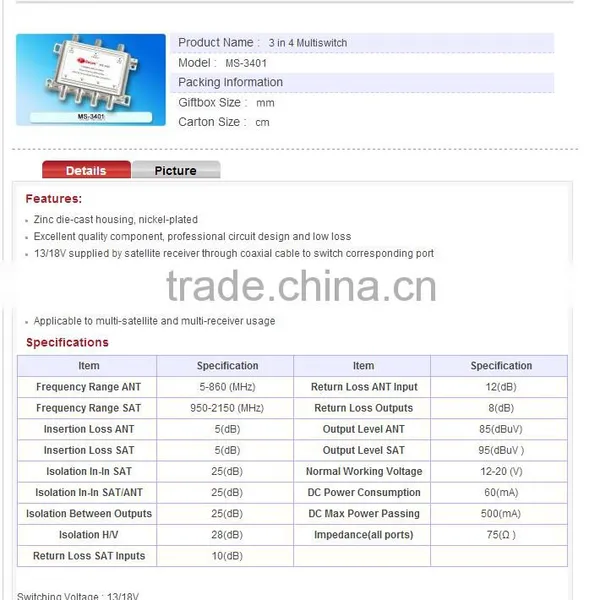

Specifications

Item Specification Item Specification
Frequency Range ANT

5-860 (MHz)

 Return Loss ANT Input 12(dB)
Frequency Range SAT

950-2150 (MHz)

 Return Loss Outputs 8(dB)
Insertion Loss ANT

5(dB)

 Output Level ANT 85(dBuV)
Insertion Loss SAT

5(dB)

 Output Level SAT 95(dBuV )
Isolation In-In SAT 25(dB) Normal Working Voltage 12-20 (V)
Isolation In-In SAT/ANT 25(dB) DC Power Consumption 60(mA)
Isolation Between Outputs 25(dB) DC Max Power Passing 500(mA)
Isolation H/V 28(dB) Impedance(all ports) 75(Ω )
Return Loss SAT Inputs 10(dB)



Switching Voltage : 13/18V
Connectors:“F” type female

satellite 3 in 4 Multiswitch



satellite 3 in 4 Multiswitch

satellite 3 in 4 Multiswitch
