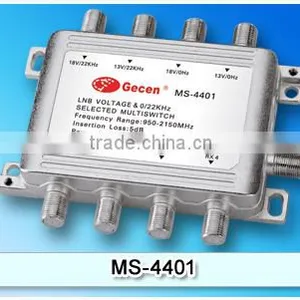

Satellite 4 in 4 Multiswitch

Satellite 4 in 4 Multiswitch thumbnail-1
Satellite 4 in 4 Multiswitch thumbnail-2
Satellite 4 in 4 Multiswitch thumbnail-3
Satellite 4 in 4 Multiswitch photo-1
Satellite 4 in 4 Multiswitch photo-2
Satellite 4 in 4 Multiswitch photo-3
US$ 10 - 12 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
MS-4401
Contact Supplier Request Quote Chat Now
Zhuhai Gecen Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ZHUHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM
Model Number MS-4401

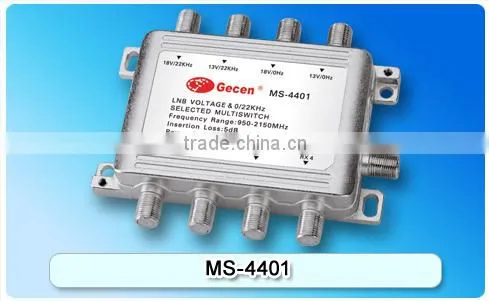

satellite 4 in 4 Multiswitch

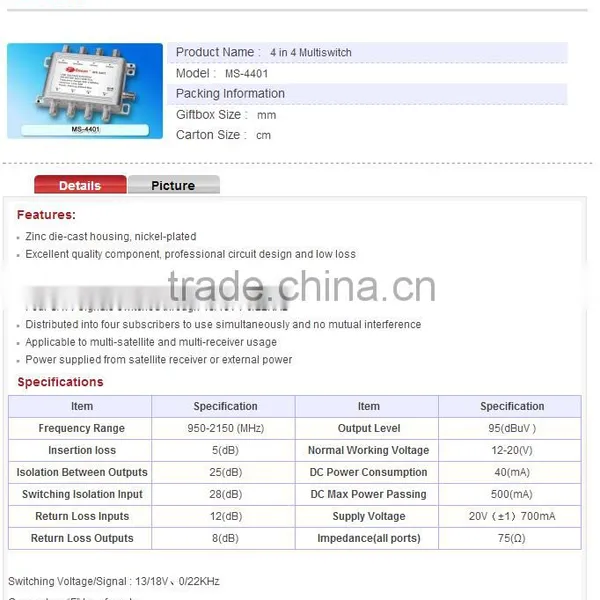

Product Name :4 in 4 Multiswitch

Model :MS-4401

Packing Information

Giftbox Size :mm

Carton Size :cm



Features:

  • Zinc die-cast housing, nickel-plated
  • Excellent quality component, professional circuit design and low loss
  • 13/18V,0/22KHz supplied by satellite receiver through coaxial cable to switch corresponding port
  • Capable of connecting four SATV signals simultaneously
  • Four SATV signals switched through 13/18V,0/22KHz
  • Distributed into four subscribers to use simultaneously and no mutual interference
  • Applicable to multi-satellite and multi-receiver usage
  • Power supplied from satellite receiver or external power



Specifications

Item Specification Item Specification
Frequency Range 950-2150 (MHz) Output Level 95(dBuV )
Insertion loss 5(dB) Normal Working Voltage 12-20(V)
Isolation Between Outputs 25(dB) DC Power Consumption 40(mA)
Switching Isolation Input 28(dB) DC Max Power Passing 500(mA)
Return Loss Inputs 12(dB) Supply Voltage 20V(±1)700mA
Return Loss Outputs 8(dB) Impedance(all ports) 75(Ω)





Switching Voltage/Signal : 13/18V,0/22KHz

Connectors:“F” type female



satellite 4 in 4 Multiswitch

satellite 4 in 4 Multiswitch



Send Inquiry to This Supplier

* Message
0/5000

Want the best price? Post an RFQ now!
Zhuhai Gecen Technology Co., Ltd.
Business Type
Manufacturer, Trading Company
Year Established
2011
Factory Size
5,000-10,000 square meters
Total Employees
301 - 500 People
Contact Supplier Request Quote Chat Now

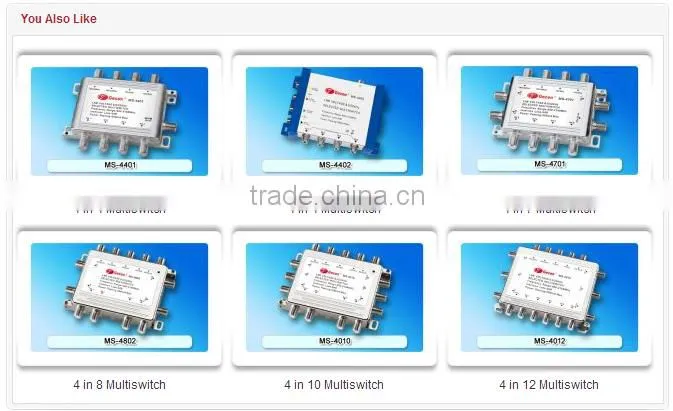

You May Also Like
