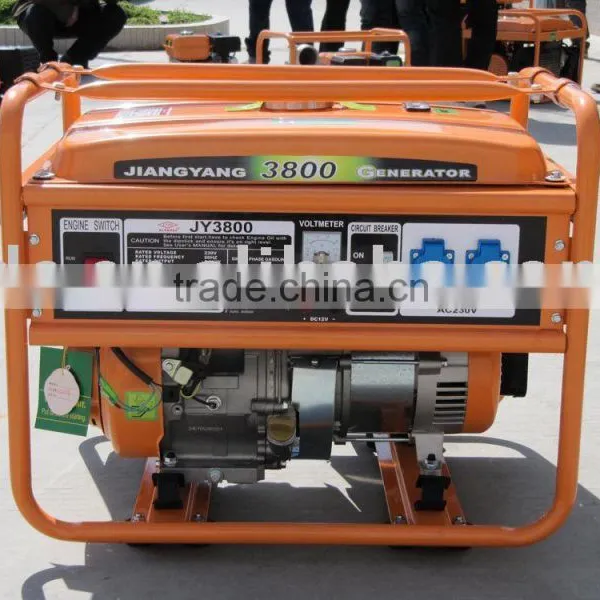

Gasoline Engine JY3800

Name: Gasoline Engine JY3800
Brand: Jiangyang
SKU: 108512103
Availability: InStock

US$ 195 - 235 MOQ: 140 Cartons

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Jiangyang

Model Number:

JY3800

Yancheng Jiangyang Foreign Trade Engine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Jiangyang

Model Number JY3800

Output Type AC Single Phase

Speed 3600

Frequency 50/60 HZ

Rated Power 3KW

Rated Voltage 110/120/220/230/240V

Specifications

1.china-made
2.high quality and low price
3.used easily
4.transport easily

Model		JY3800	JY4000	JY5000	JY6500	JY8000
Generator	Type	Brush, Single-phase
	Voltage Regulate	AVR
	Frequency (Hz)	50/60
	Rated AC Voltage (V)	110V,120V,220V,230V,240V
	Rated AC Output (KVA)	3.0/3.5	3.5/3.7	4.0/4.5	5.0/5.5	6.0/6.5
	Max. AC Output (KVA)	3.3/3.8	3.8/4.0	4.5/5.0	5.5/6.5	7.0/8.0
	Power Factor	COSΦ=1
Model		JF240	JF270	JF340	JF390	JF420
Engine	Type	OHV Forced Air-cooled 4-stroke
	Bore x Stroke (mm)	73x58	77x58	82x64	88x64	90x66
	Displacement (ml)	242	270	337	389	420
	Max. Output (HP/rpm)	8.0/3600	9.0/3600	11.0/3600	13.0/3600	15.0/3600
	Fuel	Unleaded Gasoline
	Fuel Tank Capacity (liter)	25
	Continuous Operaing Hours (h)	12.5	11	10	9	9
	Oil	SF or Higher Grade
	Oil Capacity(liter)	1.1
	Ignition System	T.C.I.
	Starting System	Recoil and hand-operated / Electric start
	Noise Level (7m) dB (A)	72
Standard Features	Fuel gauge	0	0	0	0	0
	Voltmeter	0	0	0	0	0
	AC Circuit Breaker	0	0	0	0	0
	Engine Switch	0	0	0	0	0
	AC Socket	0	0	0	0	0
Optional Features	Pilot Light	+	+	+	+	+
	Wheel & Handle	+	+	+	+	+
	Hours meter	+	+	+	+	+
	DC Output	+	+	+	+	+
	DC Circuit Breaker	+	+	+	+	+
Package Dimensions	Dimensions (LxWxH)(mm)	700x525x580				700x560x580
	Gross Weight(kg)	69	74	77.5	86	100
	Net Weight(kg)	65	70	73.5	82	96
	20/40 FT unit	124/252
NOTE:"0"=with "+"=as request "-"=without Specifications subject to change without notice
