Gasoline Generator

Specifications

1 The output steady & durable
2 New carburetor low fuel consumption, low emission
3 lpg start & electrical star
4 with wheels

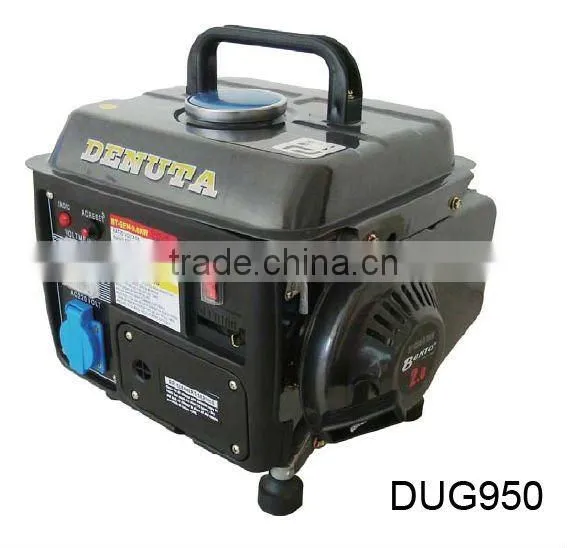

Model DUG950  DUG950Y

Rated output power (KW) 0.80

Max output power (KW) 0.85

Frequency (Hz) 60

Voltage (V) 220/230

DC output 12V-8.3A

Alternator Brushless, self-exciting, 2-pole, single phase

100% copper winding

Engine type  Air-cooled, 2-stroke, single-cylinder

Engine mode l DU1E45F

Displacement (cc)  63

Rated engine speed (rpm) 3600

Ignition method C.D.I.

Fuel type Mixed Gasoline:Oil(50:1)

Fuel tank capacity (L) 4.2

Continouse running time (h) 6.3

Noise level dB(A)/7m 57

Packing size (L*W*H) (mm) 375*320*330 (with frame: 390*320*330)

Net / Gross weight (kg) 18 / 19 (with frame: 20 / 21)

QTY/20"FCL (Sets) 750 (with frame: 680)

QTY/40’GP/40’HQ (Sets) 1514/1494(with frame)

Standard Parts (1) AC circuit breaker (2) AC socket

(3) AC plug (4) Voltmeter

(4) DC output (5) DC protector
