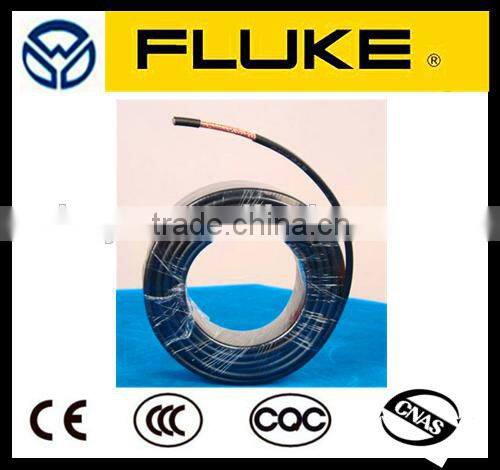

CE,UL,ROHS,ISO9001,CCC Certificate Coaxial Cable Rg11 Specifications

Henan billion net Photoelectric Technology Co., Ltd is the leading cable manufacturer in China. Cables have been our business for 2 yeas. We offer cat 7 lan cable so your customers can enjoy ultra-fast networking, Our other products cover more than 100 types of CAT6A, CAT6, CAT5E, RVV ,BV,RG ,Telephone wire, Speaker wire ,Alarm cable and so on ,
We are located at Tanghe, Henan province. eleven production lines in our ISO 9001:2008-certified 20,000 square meters factory help us fill orders for buyers in the Europe,America,Asia,Australia, and other countries. and mort than 200 employees make delivery in 20 days possible.
We turn out up to 50 million meters of cable per year, High quality standards and reliable delivery schedules are both very important to our customers. When standards apply (EIA/TIA, ISO ,ROHS, CE, UL, ETL and so on) all products will be 100%compliant .email us today.

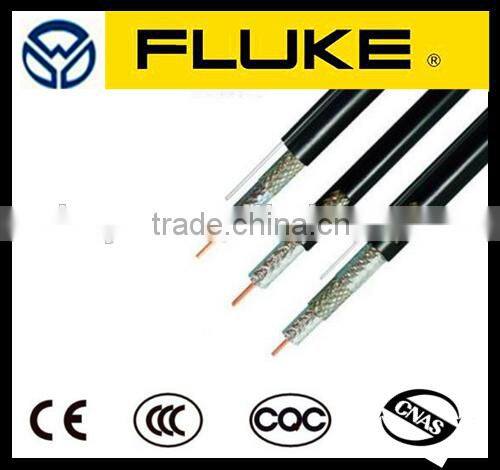

·Coaxial Cable RG6/U Messengered
·Inner conductor: 1.02mm (18AWG) BC or CCS;
·Dielectric: 4.57mm Foam PE
·Shiled 1st: Bonded/Unbonded Aluminum Foil or Al/Pet/Al;
·Shield 2nd: Braid, Al ire 0.12/0.15mm/0.16mm coverage: 60%;
·Jacket: 6.91mm PVC (UL/LSZH/FR)
·Messenger: 1.30mm Steel or CCS
·Jacket: 2.70mm PVC (UL/LSZH/FR)
·Inner Packing: Wooden/plastic drum

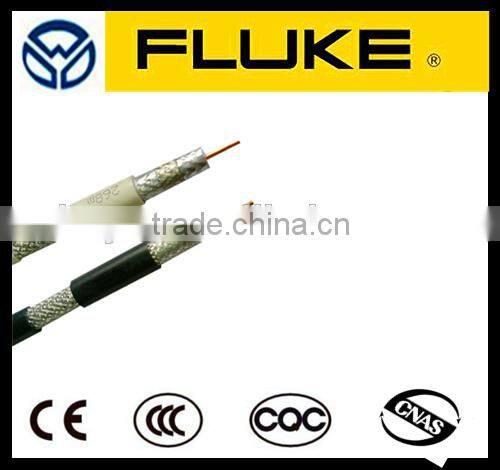

Rg11 COAXIAL CABLE Specifications:

Construction:
Inner conductor: Solid copper
Insulation: Foam PE
The first shield Aluminul Foil
The second shield 0.12mm ALMG, Customized
Braiding nets 64N, 72N, 80N, 96N, or other
Coaxial cable sheath: PVC
Power cable: 2*0.5mm² 2*0.75mm² 2*1.0mm²
3 in 1 Sheath: PE
Sheath print: Accept customized
Sheath color: Black,Customized

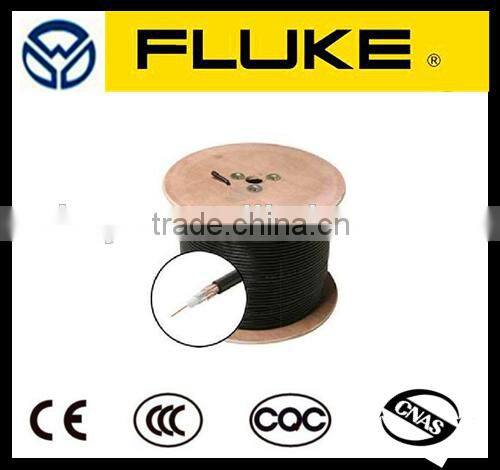

Package: 100m to 300m roll/wooden drum in carton

Application:

Used in CCTV Camera system and security equipment, to transmit audio and video signals,widely used in the hall, the important environmental and residential area monitoring.

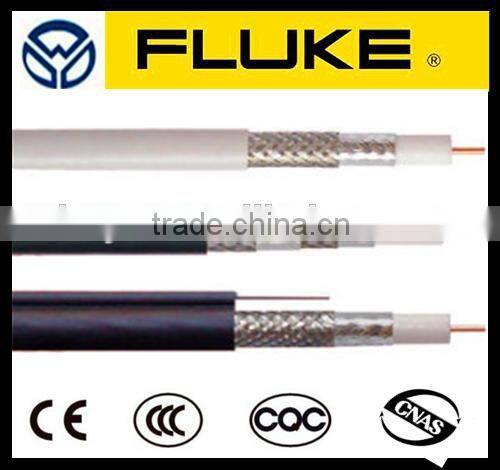

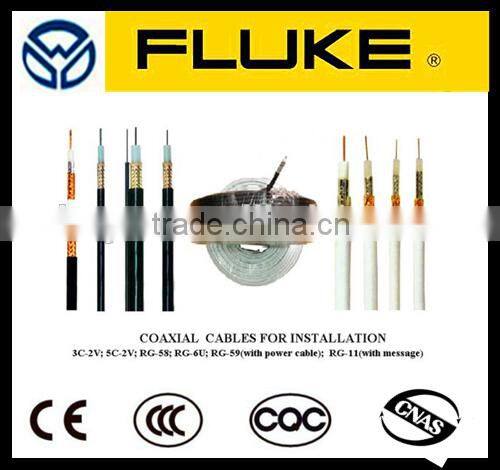

75 Ohm Coaxial Cables

50 Ohm Coaxial Cables


1) Center conductor:BC,TC,CCA,CCS

2) Al-foil:Non-bonded Al-foil, bonded Al-foil,double bonded Al-foil,and double

non-bonded Al-foil are available

3) Braiding wire:Al,BC,,TC,CCA,CCS Available

4) Braiding wire diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm available

5) Braiding net:32,48,64,72,80,96,120,128,144 and more available

6) Braiding coverage:Between 30-97%

7) PVC jacket of flame retardant,UL Available

As a professional manufacturer from China,our main and power products are
