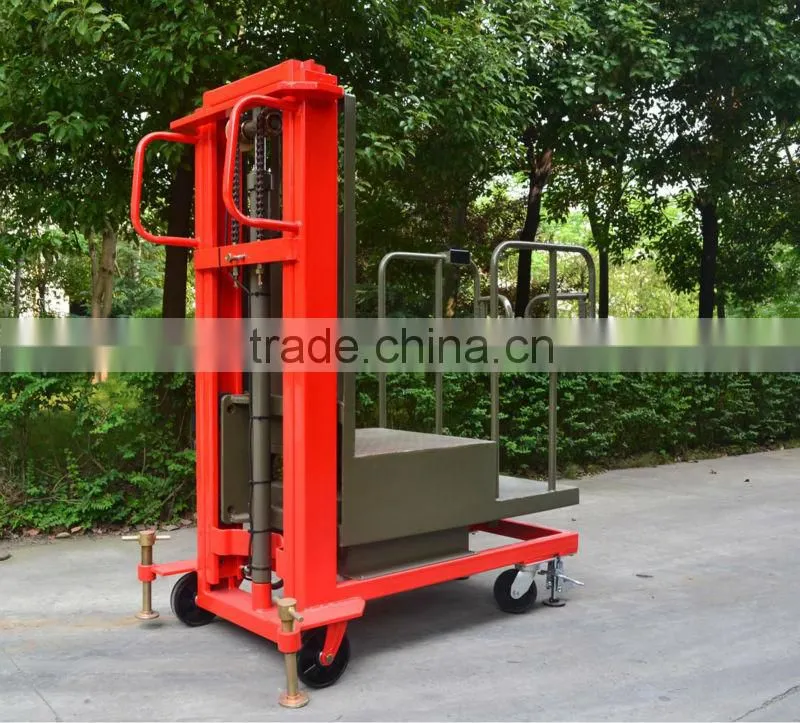

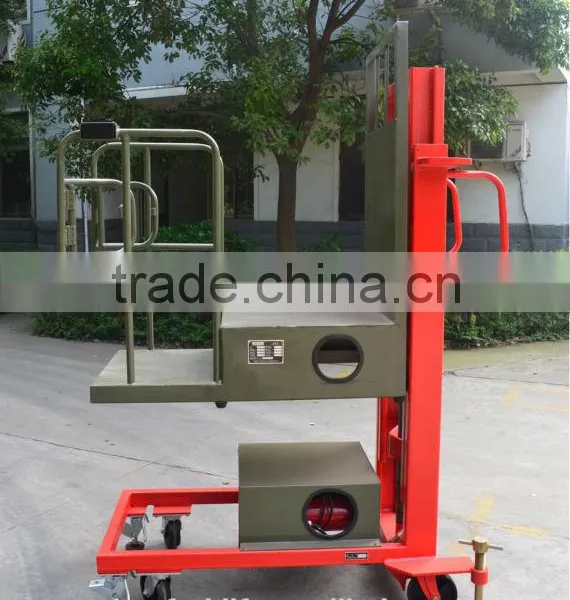

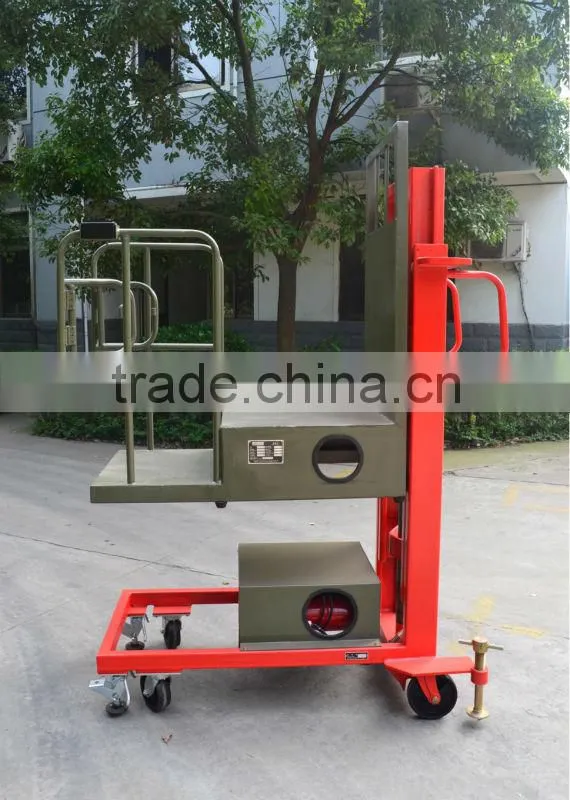

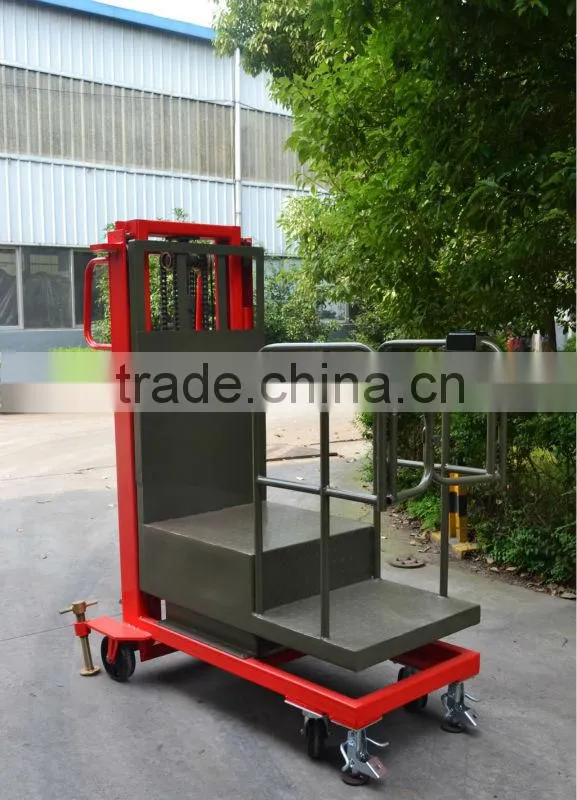

semi electric order picker;
TH series;
Rated load capacity: 300kg;
Max lift height: 3500mm, usualy used in warehouse, library, supermarket rack etc;
The secure brake and bolt protective device, to ensure the safe operation.
Our range of Semi-automatic High Level Order Picker is fabricated by a team do dexterous professionals using the finest grade factor inputs and latest technology in compliance with the international standards. This product is broadly accepted by our clients due to their superior finish, durability, high load bearing capacity and longer service life without any hassles. Offered in various technical specifications, this range of order picker is available at the most reasonable prices.
| Description Model No. |
TH0324 |
TH0330 |
| Operation Type | Stand-on |
Stand-on |
| Rated Load Capacity (KG) | 300 |
300 |
| Max Lift Height (mm)--H | 2400 |
3000 |
| Max.Height-Rack (mm)--H1 | 3710 |
4010 |
| Max.Height-Max (mm)--H2 | 2920 |
3220 |
| Height-Mast Lowered(mm)-H3 | 1690 |
1990 |
| Min.Height-Platform(mm)-H4 | 540 |
540 |
| Min. Height-Stand Platform(mm)-H5 | 345 |
|
| Min. Road Clearance (mm)-H6 | 195 |
|
| Overall Length (mm)--L | 1520 |
|
| Wheelbase (mm)--L1 | 1025 |
|
| Overall Width (mm)--W | 890 |
|
| Rear Tread (mm)--W1 | 686 |
|
| Front Tread (mm)--W2 | 485 |
|
| Body Width (mm) --W3 | 600 |
|
| Front Wheel (mm) | 150*50 |
|
| Rear Wheel (mm) | 180*50 |
|
| Load Platform Size(mm) | 600*600 |
|
| Stand Platform Size(mm) | 450*600 |
|
| Min. Turning Radius(mm)Ra | 1380 |
|
| Lift Speed(mm/s) | 85 |
|
| Lift Motor | 1.5 |
|
| Battery-V/AH | 12/120 |
|
If you have any requirements or promotion on that,pls don't hesitate to contact with us.
