Help CenterMIMA Battery Order Picker THA Series
Related Products
Specifications

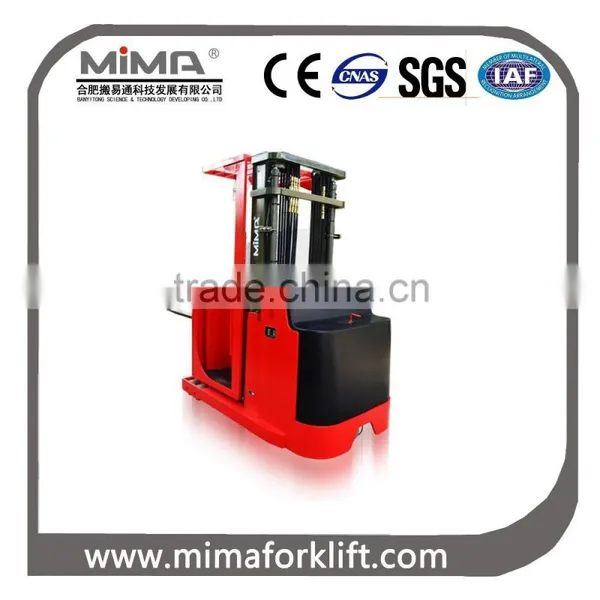

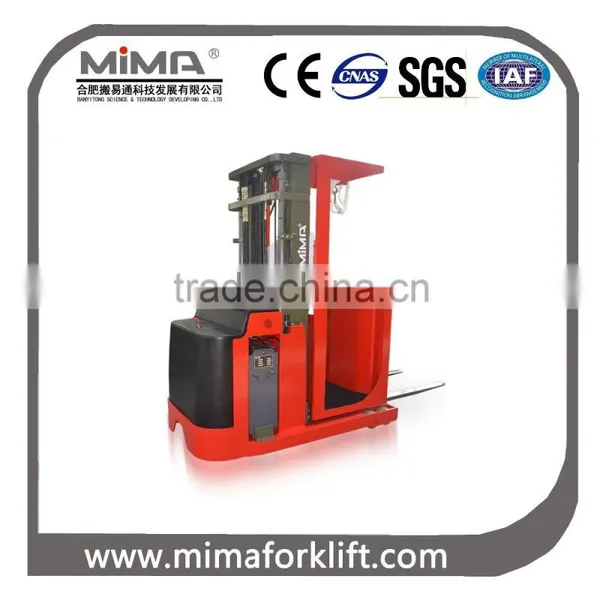

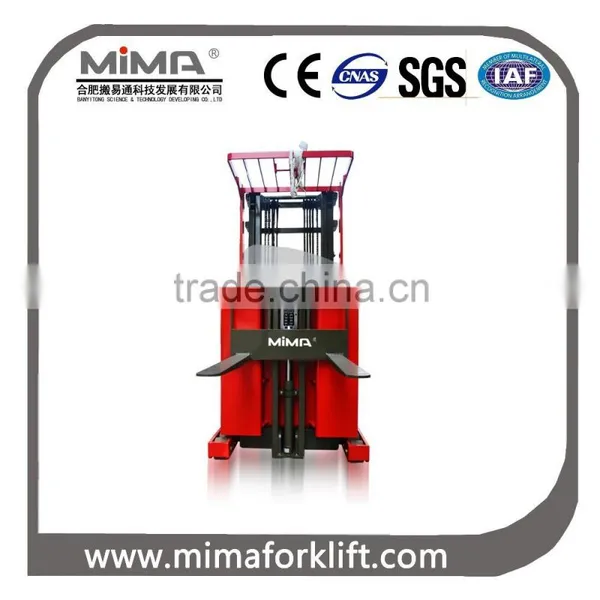

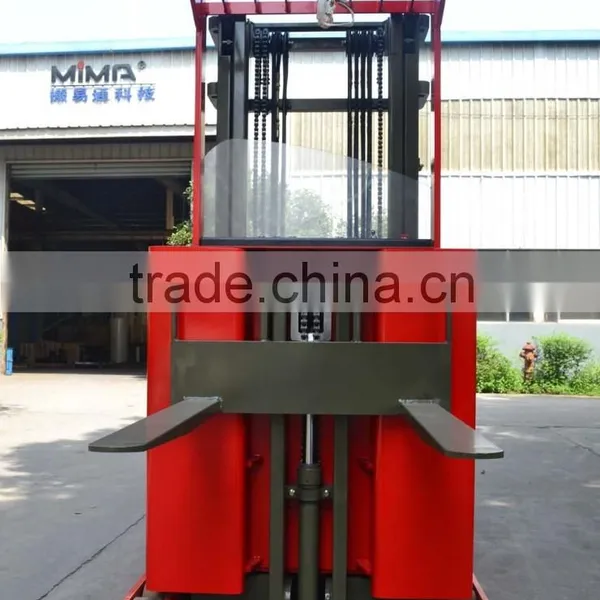

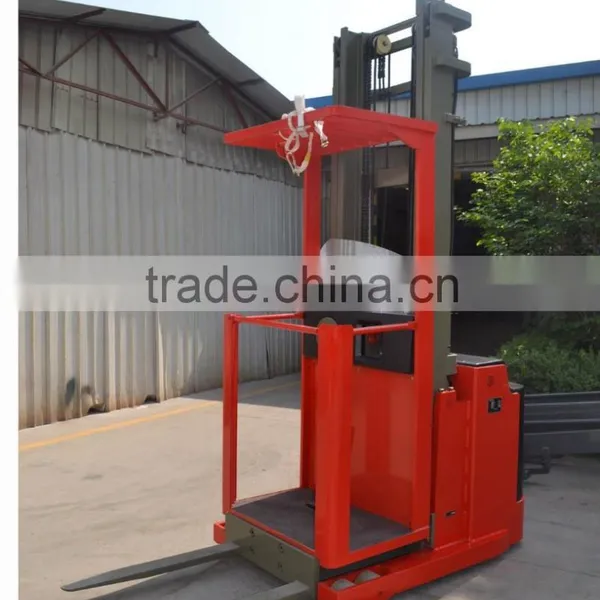

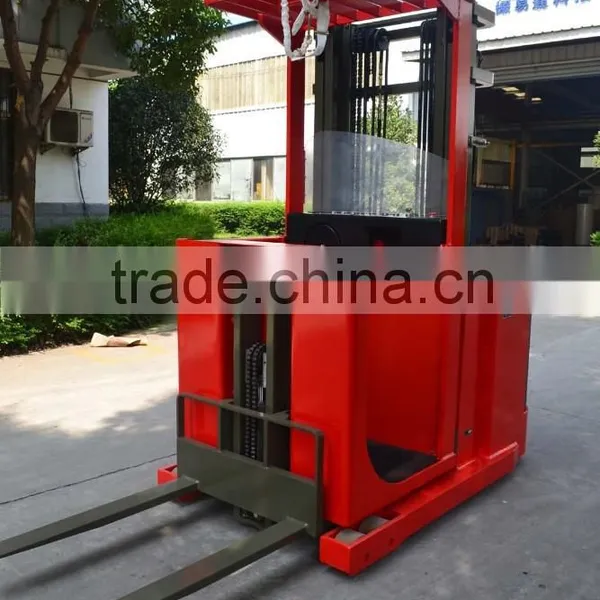

MIMA battery order picker THA series;load capacity:1000kg,lift height:4500mm;
AC driving motor;
MIMA battery order picker THA series;
THA10 series;
2. The Vehicle have driving alram,and safety belt, to ensure the safe driving;
3. Mast Buffering function;
4. The high level order picker including automatic high level order picker and semi-automatic high level order picker;
5. THA Series High level order picker, rated load capacity: 1000kg, max lift height:4500mm
6. With driving direction display, easy to know the direction even in high level;
7. With driving alarm and safety belt;
8. Mast with buffering function.
| Descriptiom Model No. |
THA1030 |
THA1040 |
THA1045 |
| Operation Type | Stand-on |
Stand-on |
Stand-on |
| Rated Load Capacity (KG) | 1000 |
8000 |
600 |
| Load center MM | 450 |
||
| Max Lift Height (mm)--H | 3000 |
4000 |
45000 |
| Min. Road Clearance- Fork(mm)--H | 35 |
35 |
35 |
| Max./Min.Height-Operation Compartment (mm)--H1 | 3205/215 |
4205/215 |
4705/215 |
| Max./Min.Height-Overhead Guard (mm)--H2 | 5237/2247 |
6237/2247 |
6737/2247 |
| Height-Mast Lowered (mm)-H3 | 2260 |
2760 |
3010 |
| Height-Mast Extended (mm)-H4 | 3745 |
4745 |
5245 |
| Min. Road Clearance (mm)-H5 | 30 |
||
| Overall Length (mm)--L | 2536 |
||
| Front Wheelbase (mm)--L1 | 1235 |
||
| Rear Wheelbase (mm)--L2 | 160 |
||
| Length-Fork (mm)-L3 | 930 |
||
| Overall Width (mm)--W | 1080 |
||
| Rear Tread (mm)--W1 | 942 |
||
| Fork Width-Outer (mm)--W2 | 700 |
||
| Fork Width-Inner (mm) --W3 | 600 |
||
| Min Turning Radius (mm)-Ra | 1440 |
||
| Wheel Type | PU |
||
| Wheel Size-Drive (mm) | 230*83.5 |
||
| Rear Wheel(mm) | 150*90 |
||
| Banalce Wheel-(mm) | 150*50 |
||
| Travel Speed-Laden/Unladen-(km/h) | 4/4.8 |
4/4.8 |
4/4.8 |
| Lift Speed-Unladen-(mm/s) | 100 |
100 |
100 |
| Descent Speed-Unladen-(mm/s) | 70-97 |
||
| Gradeability-Laden/Unladen-% | / |
||
| Driving Motor (KW) | AC1.1 |
AC1.1 |
AC1.1 |
| Lifting Motor (KW) | 3 |
3 |
3 |
| Steering Motor (KW) | 0.75 |
0.75 |
0.75 |
| Battery-V/AH | 24/480 |
24/480 |
24/480 |
| Charger V/A | 24/70 |
24/70 |
24/70 |
| Service Weight (with battery) KG | 2340 |
2440 |
2490 |
12 months warranty;
ISO CERTIFICAER
Banyiting sicence & technology developing co.,ltd was established in 1994,with 20 years experiences in material handling equipments.Our factory located in the science & technology culture and ancient city of hefei,Anhui province.It is about 400 kilometers away from the Shanghai city,45 minutes by air or 2.5 hours by high-spped train.We are high-tech enterprise,specializing in R&D and designing electric forklift,and material handling solutions for different industries.We have ISO9001:2008 Quality Management System Certification,the People's Repulic of China Special Equipment Production License and Hefei City Innovative Enterprices.All products with CE certification and SGS certification.
Now MIMA brand have 12 major series,more than 50 products,such as the electric pallet truck,electric pallet stacker,reach truck,forklift,tow tractor,narrow aisle forklift,special forklift,AGV etc.We supply the 500KG-100000KG material handling solutions to the clients,to achieve products serialization and large-scale manufacture.All MIMA products are widely used in medicine,food,chemical,electronics,machinery,furniture and many industries.
If you have any reuqirements or promotion on that,pls don't hesitate to contact with us.
