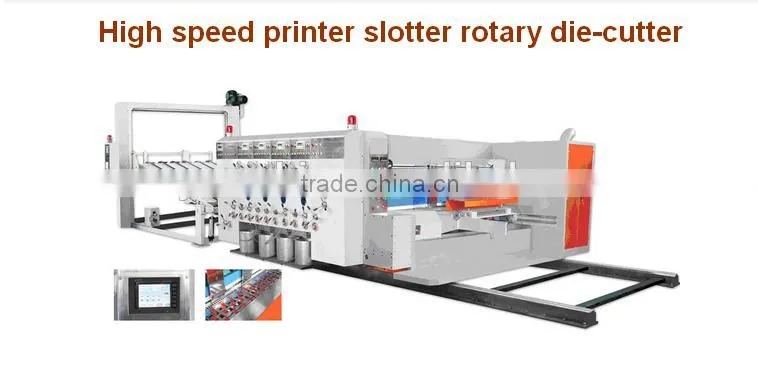

2015 hot sale flexo ink printing slotting die-cutting for corrugated paperboard making and forming
1. The whole machine is designed according to high standard strictly. Based human-computer integrated manufacturing concept, simple operation, easy maintenance, long service life. And it has multiple security features, is a good product with high cost.
2. By touching screen ,realized man-machine dialogue, and keep electrical control system. It has the functions of automatic zero, automatic reset, and store orders.
3. Man-machine interface,PLC controller, inverter,servo motor and drives, are made of world famous brands.
4. Main drive gear blanks is made of high quality alloy steel (20CrMnTi)forging, formed by the multi-channel processing technology. Tooth surface precision ground,high frequency quenching ,hardness HRC58-60,ensure long-term precision drive.
5. All roller shaft experience the static balance and dynamic balance twice to ensure smooth and reliable when high-speed running. Hard chromium is plated barrel layer of protection.
6. All gears are made free connection, eliminating the gap generated by the traditional connection to maintain long-term precision chromatic printing machine.
7. Drive organizations adopts spray splash, lubrication device, lubrication system automatically cycle.
8. Full vacuum assisted delivery to avoid damage to the print paper roll layout patterns, and to further ensure the accuracy of printed overlay.
9. Optional dual-blade system ,the sealed chamber.
10. It can install infrared drying department.
Model(roller diameter) |
Unit |
900(297) |
1200(408) |
1400(450) |
1600(535) |
Specifications |
mm |
1800/2200 |
2400/2800 |
2400/2800 |
2800/3200 |
Max mechanical speed |
mm |
200 |
180 |
170 |
150 |
Max feeding paper size |
mm |
1800*860 |
2400*1170 |
2400*1370 |
2800*1580 |
mm |
2200*860 |
2800*1170 |
2800*1370 |
3200*1580 |
|
Min feeding paper size |
mm |
650*350 |
650*450 |
700*480 |
720*520 |
Skip feed size |
mm |
1800*1170 |
2400*1400 |
2400*1550 |
2800*1770 |
mm |
2200*1170 |
2800*1400 |
2800*1550 |
3200*1770 |
|
Feed thickness |
mm |
2-12 |
2-12 |
2-12 |
2-12 |
Max printing size |
mm |
1800*860 |
2400*1170 |
2400*1370 |
2800*1580 |
mm |
2200*860 |
2800*1170 |
2800*1370 |
3200*1580 |
|
Standard plate thickness |
mm |
7.2 |
7.2 |
7.2 |
7.2 |
Positive edge min slot pitch |
mm |
125*125*125*125 |
140*140*140*140 |
140*140*140*140 |
140*140*140*140 |
Negative edge min slot pitch |
mm |
260*70*260*70 |
270*80*270*80 |
270*80*270*80 |
270*80*270*80 |
Max cutting size |
mm |
1700*860 |
2300*1170 |
2300*1370 |
2800*1580 |
mm |
2100*860 |
2800*1170 |
2800*2370 |
3200*1580 |
1. Our technician need to test the machine working condition before delivery to customer country.
2. If needed, we also can send our engineers to your country to teach you how to intall and operate the machine.
3. Our machine has one year guarantee period, during this period, if problems caused by our machine quality, we will change all parts for you by free fee.
4.If any questions,welcome to send me email by 24 hours, we will try our best to help you solve these problems
Welcome to inquiry and contact us for more details and videos, thak you.
