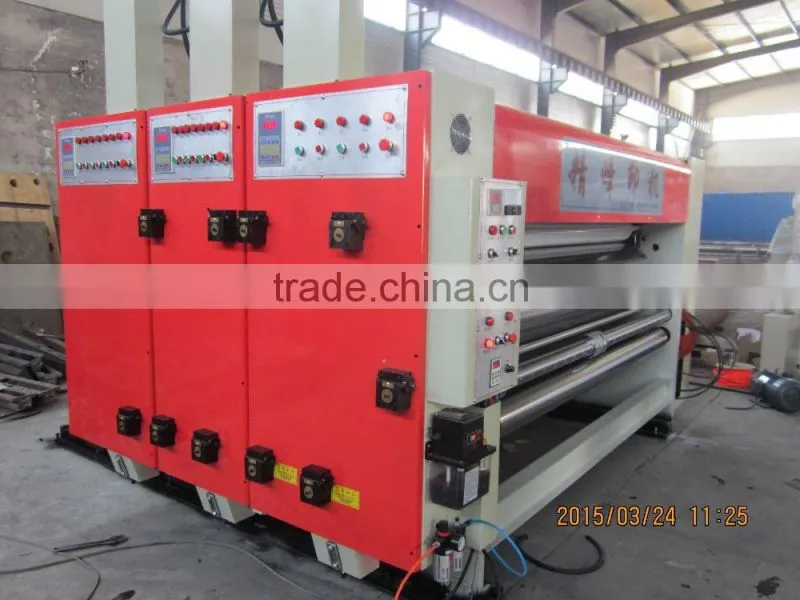

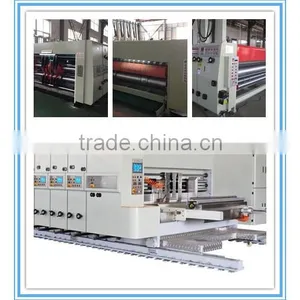

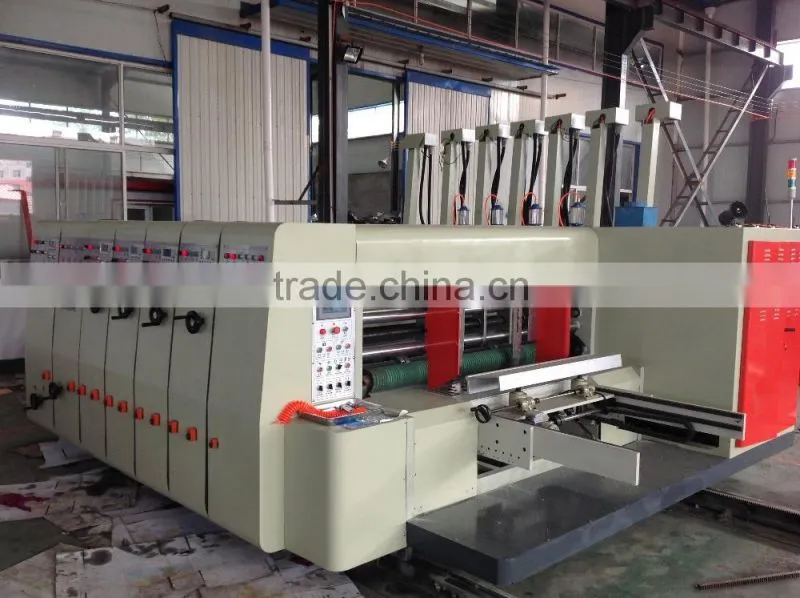

corrugated carton box flexo printing machine/ carton ink printer machine
1. The whole machine is designed according to high standard strictly. Based human-computer integrated manufacturing concept, simple operation, easy maintenance, long service life. And it has multiple security features, is a good product with high cost.
2. By touching screen ,realized man-machine dialogue, and keep electrical control system. It has the functions of automatic zero, automatic reset, and store orders.
3. Man-machine interface,PLC controller, inverter,servo motor and drives, are made of world famous brands.
4. Main drive gear blanks is made of high quality alloy steel (20CrMnTi)forging, formed by the multi-channel processing technology. Tooth surface precision ground,high frequency quenching ,hardness HRC58-60,ensure long-term precision drive.
5. All roller shaft experience the static balance and dynamic balance twice to ensure smooth and reliable when high-speed running. Hard chromium is plated barrel layer of protection.
6. All gears are made free connection, eliminating the gap generated by the traditional connection to maintain long-term precision chromatic printing machine.
7. Drive organizations adopts spray splash, lubrication device, lubrication system automatically cycle.
8. Full vacuum assisted delivery to avoid damage to the print paper roll layout patterns, and to further ensure the accuracy of printed overlay.
9. Optional dual-blade system ,the sealed chamber.
10. It can install infrared drying department.

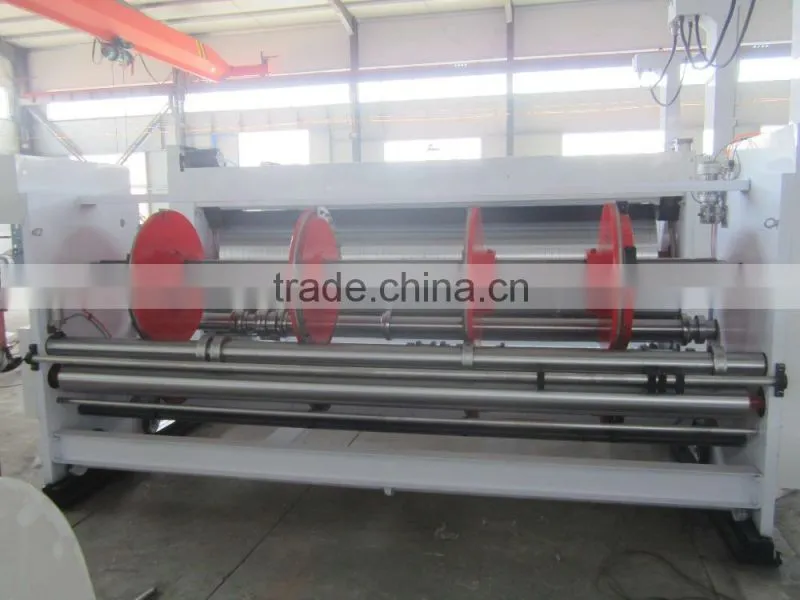

Feeding Unit(one set):
Feeding accuracy:±1mm
A. Unit Separation
1.Electric machine control of clutch bell, bell continued moving, ensure personnel safety warning.
2.Between each station, emergency stop switch, which can be stopped by the internal control of the machine to ensure the safety of the internal staff.
3.Pneumatic interlocking device.
4.Whole machine lock.
B.feeding paper roll
1.The upper paper roll diameter φ 164 mm.
2.Material:Seamless steel tubes, coated with wear-resistant rubber, and do dynamic balancing.
3.The lower paper roll diameter φ 164 mm,Embossing of hard chromium plating.
4.Paper roll gap electric adjustment, adjust the range of 0-12mm.
C,Lead edge feeding system
The leading edge of the transmission of the gear, the shaft of the transmission, guarantee the accuracy of the feeding mechanism.
Printing unit(four unit)
Printing accuracy:±0.5mm

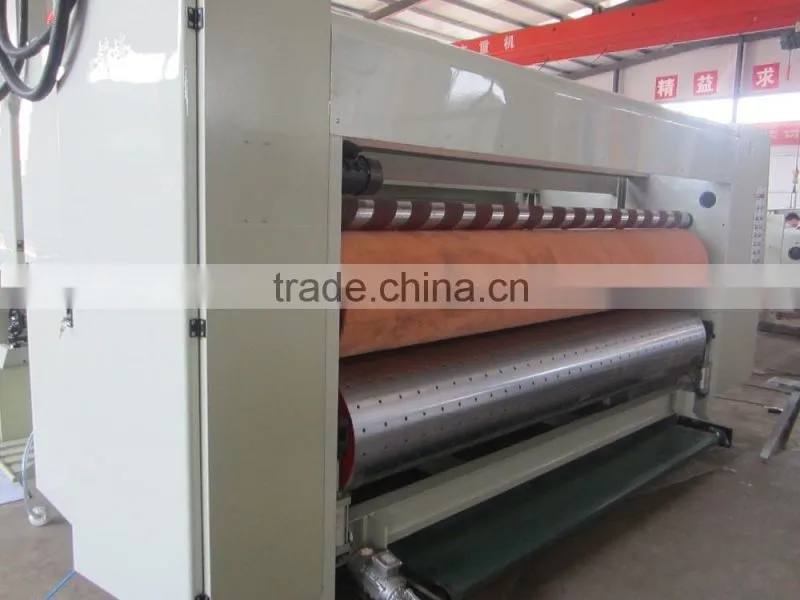

A,Cylinder
1.diameter φ408mm(with plate the diameter is φ420mm).
2.Surface grinding, hard chromium plating.
3.Dynamic and static balance correction, running smoothly.
B.Embossing roller
1.Diameter is φ 164 mm
2.Surface grinding, hard chromium plating.
3.Dynamic and static balance correction, running smoothly
4.Embossing roller gap electric adjustment, adjust the range of 0-12mm.
C.Metal anilox roller(customer can chose ceramic anilox roller)
1.Diameter is φ216 mm
2.Surface grinding, hard chromium plating.
3.Dynamic and static balance correction, running smoothly
4.Embossing roller gap electric adjustment, adjust the range of 0-12mm.
D.Rubber roller
1.Diameter is φ 188 mm
2.Material:Seamless steel tubes, coated with wear-resistant rubber, and do dynamic balancing.
3.Rubber roller have crown and been grinding,Ink effect is good.
E.Phase adjustment mechanism
1.Planetary gear structure.
2.Digital display type phase indicator, make the operation more convenient, intuitive and accurate.
3.Printing corresponding electric digital 360 degree adjustment (running or stop can be adjusted). Phase modulation precision can reach 0.15mm.
F.Ink circulation
1.Pneumatic diaphragm pump, ink supply and stability, simple operation and maintenance.
2.Province ink cleaning device, can effectively save ink.
3.Ink screen, filter impurities.
G.Axial adjustment mechanism
1.Manual type axial adjustment mechanism.
2.Position indicator, make the operation more convenient, intuitive and accurate.
Slotting part(one unit)
Slotting accuracy:±1.5mm
A.The scoring lines
1.The scoring roll diameter is φ 110 mm,with two grinding, the surface of hard chromium plating, moving smoothly.
2.The scoring lines gap,electric adjustment, the adjustment range is 0-12mm.
B.The slotting knives traverse adjustment mechanism
1.The diameter is φ 156 mm,with two grinding, the surface of hard chromium plating, moving smoothly.
2.Slotting cutter width 7mm.
3.Alloy tool steel via heat treatment, grinding tooth slotting cutter, trimming knife, high hardness and toughness, high precision.
4.The score line, slot knife shifting, adopt with electric button or button digital synchronous control.
stack unit(one set)
Pick arm
a.Manual and automatic operation.
b.Pick the paper arm drive belt, adjust the structure of the individual, and can choose the length of the arm.
Bed lift
a.Strong chain drive.
b.Stacking height is 1600 mm.
c.Bed lift motor with brake function, the bed can be kept fixed position, will not decline.
Paper baffle
a.The pneumatic action paper pallet, piled up to a predetermined height in the cardboard, paper pallets automatically extend, hold the cardboard.
b.Position of rear apron.
c.Flat wrinkle belt, to prevent cardboard slide.
Model | 2000*1500 | |
Design speed(Pcs/min) | 120 | |
Max feeding paper size(mm) | 2200*1500 | |
Min feeding paper width(mm) | 400 | |
Skip feed size(mm) | 2000*2000 | |
Feed thickness range(mm) | 3-12 | |
Max printing size(mm) | 2000*1500 | |
Standard print thickness(mm) | 6 | |
Min slotting pitch(mm) | positive(mm) | 150*150*150*150 |
inverse(mm) | 260*70*260*70 |
1. Our technician need to test the machine working condition before delivery to customer country.
2. If needed, we also can send our engineers to your country to teach you how to intall and operate the machine.
3. Our machine has one year guarantee period, during this period, if problems caused by our machine quality, we will change all parts for you by free fee.
4.If any questions,welcome to send me email by 24 hours, we will try our best to help you solve these problems
Welcome to inquiry and contact us for more details and videos, thak you.
