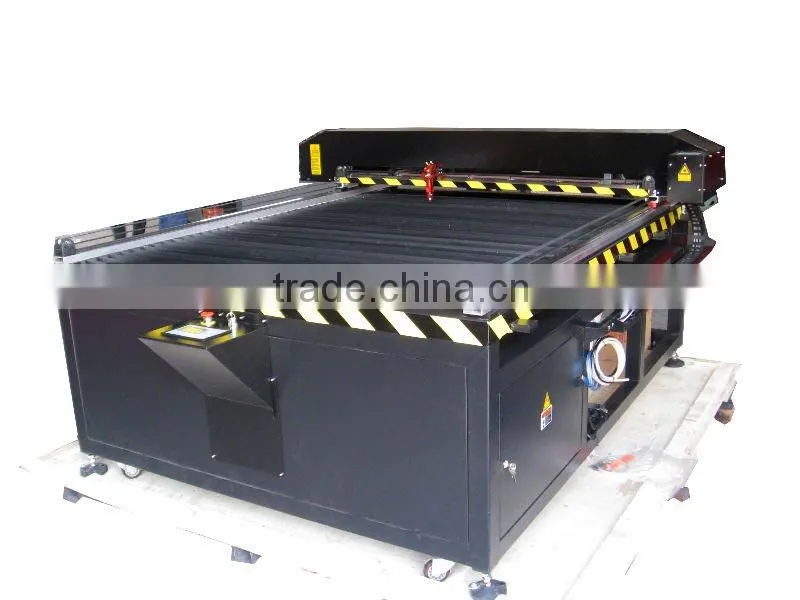

Help CenterWood Laser Machine DW 1318
Related Products
-
DW Laser Cutting Machine for Craft IndustryUS$ 3,000 - 7,000MOQ: 1 Set -
DW 1280 Laser Cutting MachneUS$ 3,200 - 6,200MOQ: 1 Set
-
DW Laser Machine for GarmentUS$ 3,500 - 6,200MOQ: 1 Set
-
DW Marble Jade Laser Engraving MachineUS$ 3,500 - 6,300MOQ: 1 Set
-
Laser Cutting Engraving Machine DWUS$ 3,500 - 5,500MOQ: 1 Set
Specifications
High precision /efficiency ,economic price4000 hours laser tube
Reasonable Gantry Structure
Applicable industries
Plastic and rubber industry, ads/crafts/presents industry.strument/machine componnents,leather cloth industry. Advertising logo signs, gifts, crystal ornaments, paper cutting techniques, relief, wood carving Jane. Printing plate, leather clothing, embroidery, decoration, frame making and other industries.
Features
1.The structure of the machine is more compact and more reasonable, the electric performance steady; The type of the machine has double efficacy of high-speed engraving and high-speed cutting, the precision is high.
2.The import guide rail equipped with the machine runs steadily, the depth of engraving can be adjusted automatically. The scrap left after engraving is only a little; The verge after cutting has no burr and does not need to polish.
3.Full up grading to operation offline and to support USB flash disc output. Rich function can effectivelly engrave on flat surface, gradient engraving by 360 degree.
4.Extensive material processing, smooth cutting edge and burr-free, avoid polishing. Optional double laser heads cutting machine to enlarge the efficiency.
5.It is integrates engraving, image scanning, grade carve, cutting etc.
Laser Generator |
Hermetic and detached CO2 laser tube |
Laser Power |
60w /80w /100w/150w |
Work area |
1300*1800mm |
Positioning Precision |
±0.01mm |
Cooling Mode |
Circulating-water-cooling |
Machine Control and Drive |
Speedy DSP controlling, stepper motor |
Power Adjustment |
0-100% controlling, no segment and adjusting by software |
Controlling Software Language |
English, Simplified Chinese, Traditional Chinese and procuring of multi-languages |
Machine Color |
grey/Red , Orange/Grey |
Minimum Character |
Chinese character 1.5mm, crisscross-row 1mm |
Max Power |
≤2000w |
Up-down Range of Working Table |
50mm |
Optional Equipment |
Rotary attachment |
Engraving Speed |
1200mm/s |
Cutting Speed |
600mm/s |
Laser energy control |
1-100% software setting |
Interface |
LCD Screen and USB interface |
| Compatible software | CoreDraw, AutoCAD, Photoshop |
| Table | moterized up and down platform, honeycomb,knief shap, flat board |
Working Voltage |
AC220V ±10%,50Hz |
Running Environment |
0-45°, Humidity: 5%-95% |
...
