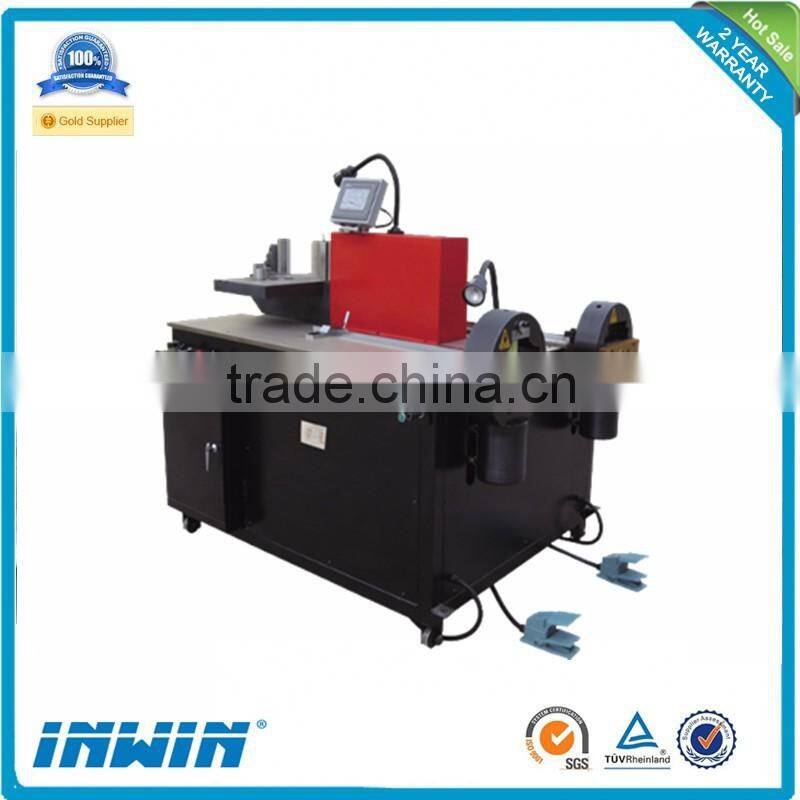

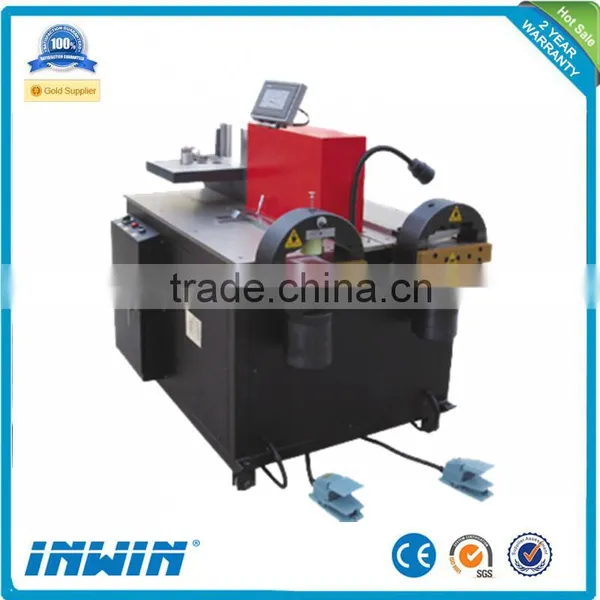

copper busbar press brake busbar bending machine
We are the most professional manufacturer for making busbar machines widely been used for processing aluminum and copper busbars in electric industry, including high/low voltage electric apparatus, the transformer, busbar duct etc.
The multifunction busbar processing machine is the patented product developed by our company.
Comparing with the traditional busbar processing machine, this product has the following advantages
and features:
- The punching and shearing units adopt round integral structure, with novel and unique design rendering reasonable
- force bearing, and thus effectively guarantees the long-term use without deformation
- The bending unit uses integral structure and CNC angle control mode, allowing easy operation and high accuracy;
This machine adopts the design approach of doublelayer work bench, truly realizing the simultaneous working of three stations without mutual interference;

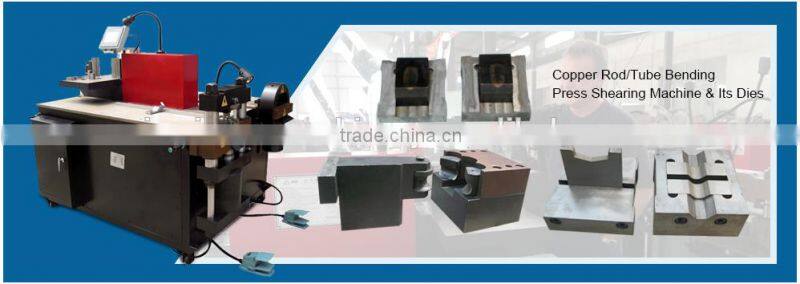

- Swappable dies offering extreme convenience;
- PLC control that is stable and reliable.
Configuration of the machine:
Work Bench Dimension (mm) |
Machine Weight (kg) |
Number of Motors |
Total Motor Power (kW) |
Working Voltage (V) |
Number of Hydraulic Units (MPa) |
Control Mode |
|
Layer I: 1500×1200 |
1460 |
3+1 |
11.37 |
380 |
3×31.5 |
PLC+ CNC angle bending |
Layer II: 840×370 |
Main technical parameters
Name |
Material |
Machining W* H (mm) |
Max Punched Hole |
Max Output Force (kN) |
|
Punching unit |
Copper/Aluminum |
15 |
Diameter32(H≤10mm) Diameter25(H≤15mm) |
350 |
|
Shearing unit |
Copper/Aluminum |
Punching and shearing: 12×160 Simple shearing: 15×160 |
350 |
|
|
Bending unit |
Copper/Aluminum |
Level bending: 15×160 Vertical bending: 12×120 |
350 |
FAQ
I. Do we have to fill up the hydraulic oil tank before shipment ?
No, and the machine without any oil and it is empty during the shipment.
II.What type of oil do we have to get ?
Pls add 46# anti-wear hydraulic oil 90Kg .
III. Do we need to bleed out air in the hydraulic system?
No, this machine is hydraulic drive no need to bleed out air.
IV. Anything else we need to do / get to get this machine operational?
We will send you operation manual and videos
