Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | inwin |
Model Number: | 303 -S | Machine Type: | Press Brake | Raw Material: | Sheet / Plate Rolling |
Material / Metal Processed: | Brass / Copper | Power: | Other, Hydraulic, 11.37 | Automation: | Manual |
Extra Services: | Other, cutting punching | Certification: | Other, CE, CE ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

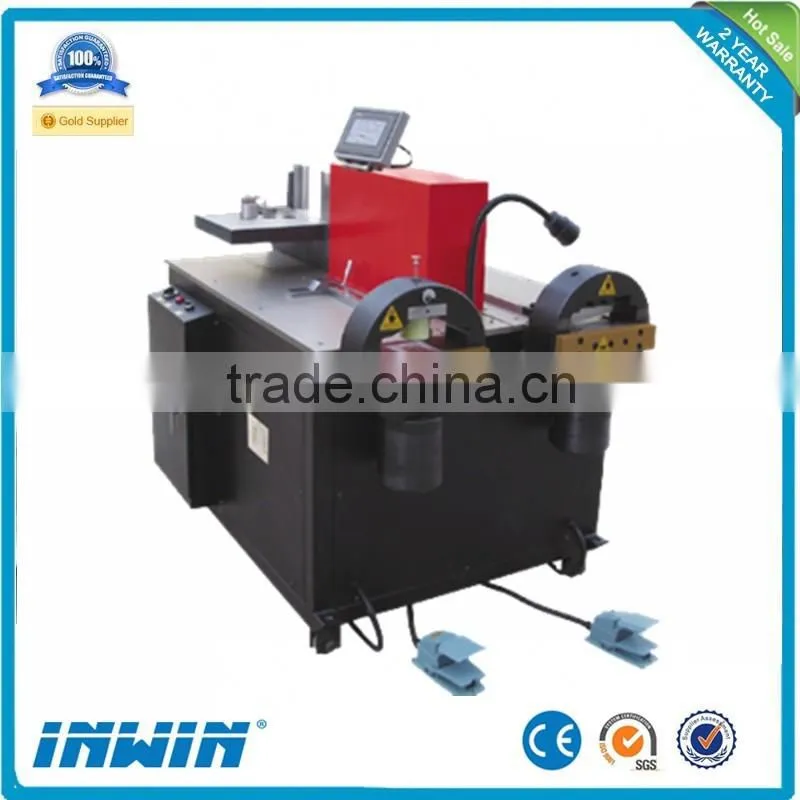

price of copper bus bar bending machine
Introduction >>> |
The multifunction busbar processing machine is the patented product developed by our company. Comparing with the traditional busbar processing machine, this product has the following advantages and features:
The punching and shearing units adopt round integral structure, with novel and unique design rendering reasonable force bearing, and thus effectively guarantees the long-term use without deformation
The bending unit uses integral structure and CNC angle control mode, allowing easy operation and high accuracy;
This machine adopts the design approach of doublelayer work bench, truly realizing the simultaneous working of three stations without mutual interference;
Swappable dies offering extreme convenience;
PLC control that is stable and reliable.
Technical Parameter >>> |
Work Bench Dimension (mm) | Machine Weight (kg) | Number of Motors | Total Motor Power (kW) | Working Voltage (V) | Number of Hydraulic Units (MPa) | Control Mode |
Layer I: 1500×1200 | 1460 | 3+1 | 11.37 | 380 | 3×31.5 | PLC+ CNC angle bending |
Layer II: 840×370 |
Name | Material | Machining W* H (mm) |
Max Punched Hole |
Max Output Force (kN) |
Punching unit |
Copper/Aluminum | 15 | Diameter32(H≤10mm) Diameter25(H≤15mm) | 350 |
Shearing unit | Copper/Aluminum | Punching and shearing: 12×160 Simple shearing: 15×160 | 350 | |
Bending unit |
Copper/Aluminum | Level bending: 15×160 Vertical bending: 12×120 | 350 |
Packages & Shipping >>> |
CE Certificate >>> |
Advantages >>> |
1.Installation Services
Installation Services are available with all Our machines. We dispatch technician to customer's factory for installation and preoperation of machines. ( Customers only need to pay the airfare and hotel )
2.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
3.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data. Machine warranty is 2 year
FAQ >>> |
Q I. Do we have to fill up the hydraulic oil tank before shipment ?
No, and the machine without any oil and it is empty during the shipment.
QII.What type of oil do we have to get ?
Pls add 46# anti-wear hydraulic oil 90Kg .
QIII. Do we need to bleed out air in the hydraulic system
No, this machine is hydraulic drive no need to bleed out air.
QIV. Anything else we need to do / get to get this machine operational?
We will send you operation manual and videos
Our users as follows >>>
Our users as follows >

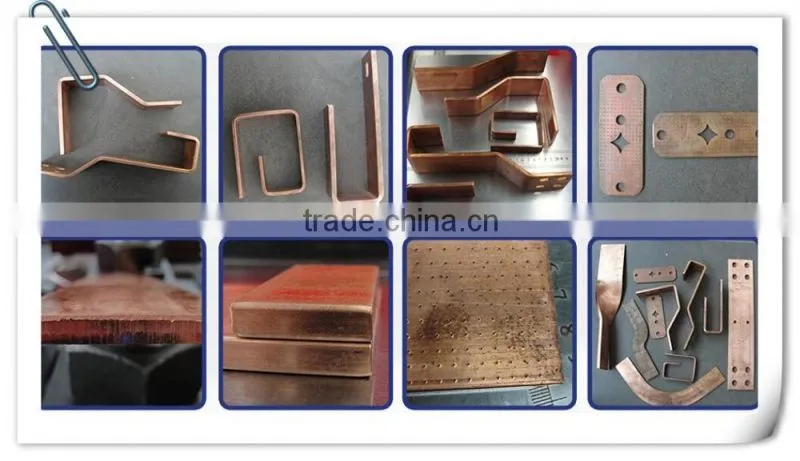

Workpieces Shown>>> |
