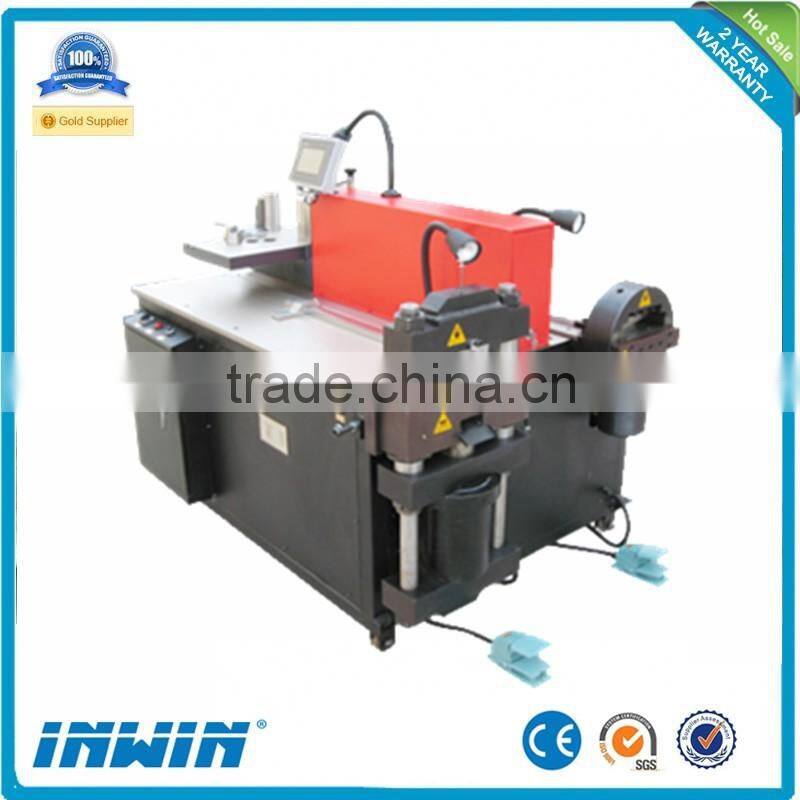

Voltage Optional Hydraulic Copper Busbar Processing Machine

Voltage Optional Hydraulic Copper Busbar Processing Machine photo-1
US$ 19,800 - 23,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Inwin
Model Number:
Inwin603-S-3
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China Seaport for voltage optional hydraulic copper busbar processing machine
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name Inwin
Model Number Inwin603-S-3
Type Other, CNC, CNC
Application Power
Gender Other, Busbar Copper

voltage optional hydraulic copper busbar processing machine

voltage optional hydraulic copper busbar processing machine



 Introduction  >>>

 We are the most professional manufacturer for making busbar machines widely been used for processing aluminum and copper busbars in electric industry, including high/low voltage electric apparatus, the transformer, busbar duct etc.

voltage optional hydraulic copper busbar processing machine



Performance & Features >>>



The multifunction busbar processing machine is the patented product developed by our

 company. Comparing with the traditional busbar processing machine, this product has

 the following advantages and features:



The punching and shearing units adopt column structure, with novel and unique design

rendering reasonable force bearing, and thus effectively guarantee the longterm use without

deformation;



2The bending unit uses integral structure and CNC angle control mode, allowing easy operation and high accuracy;



3.This machine adopts the design approach of doublelayer work bench, truly realizing the simultaneous working of three stations without mutual interference;



4.The machine is provided with an automatic oil charge and discharge system, easy to

operate, with the hydraulic oil charged into the oil tank via a filter so as to protect the entire

hydraulic system from contamination;



5.This machine is provided with stainless steel oil tank to protect the hydraulic oil from corrosive deterioration, and extend the service life of hydraulic oil and the seals;



Swappable dies offering extreme convenience;

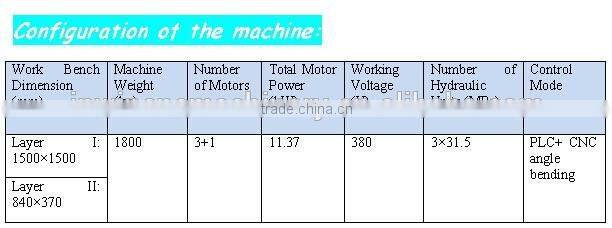

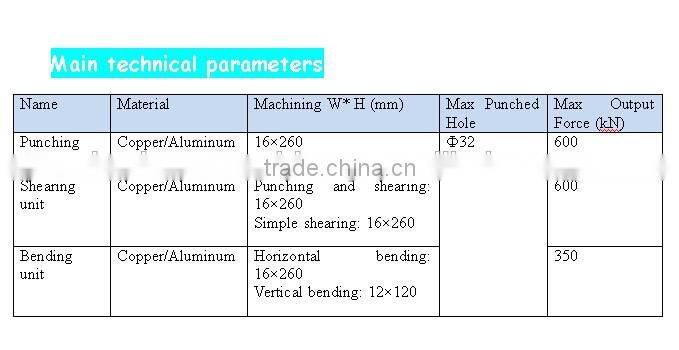

Technical Parameter >>>



voltage optional hydraulic copper busbar processing machine

voltage optional hydraulic copper busbar processing machine

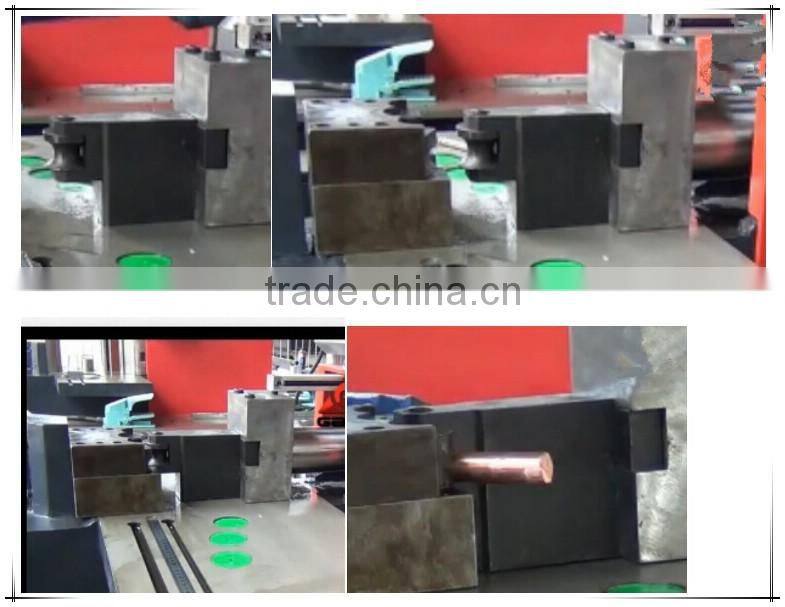

Copper Bar Bending as shown >>>





voltage optional hydraulic copper busbar processing machine



Packaging & Shipping  >>>





 CE Certificate >>>



voltage optional hydraulic copper busbar processing machine





How to place the trade assurance  >>>



voltage optional hydraulic copper busbar processing machine
