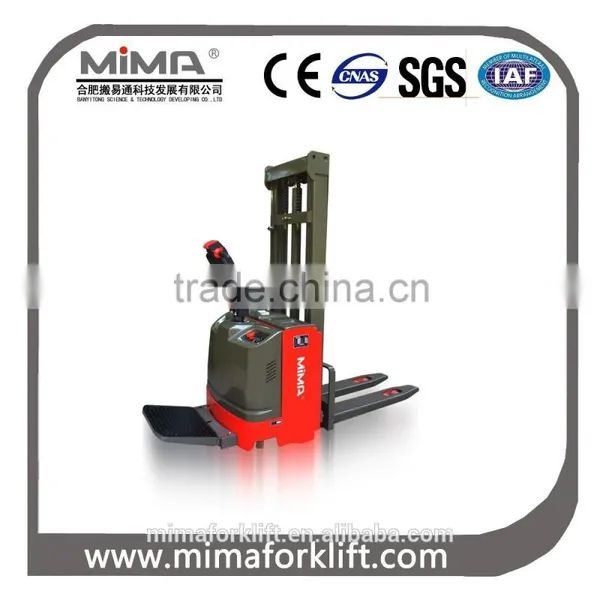

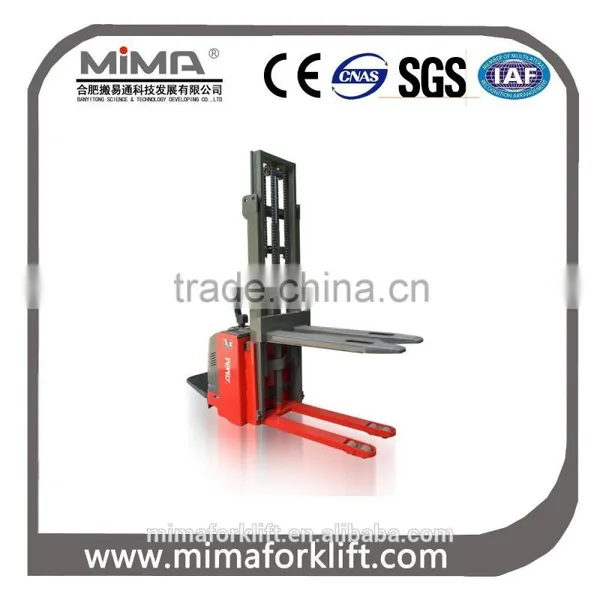

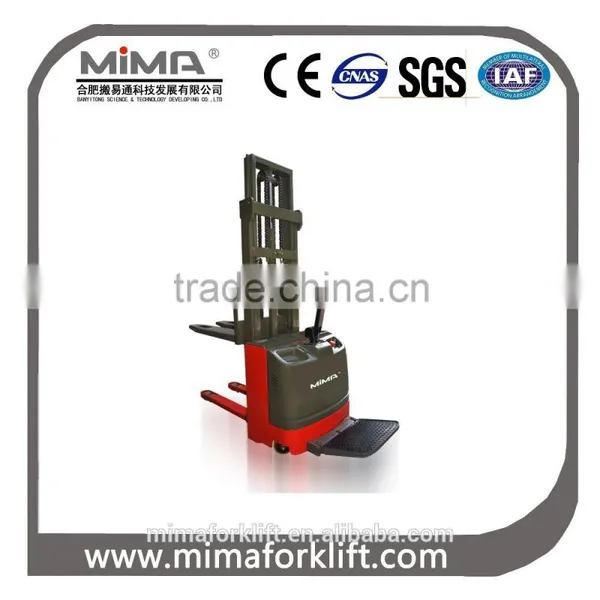

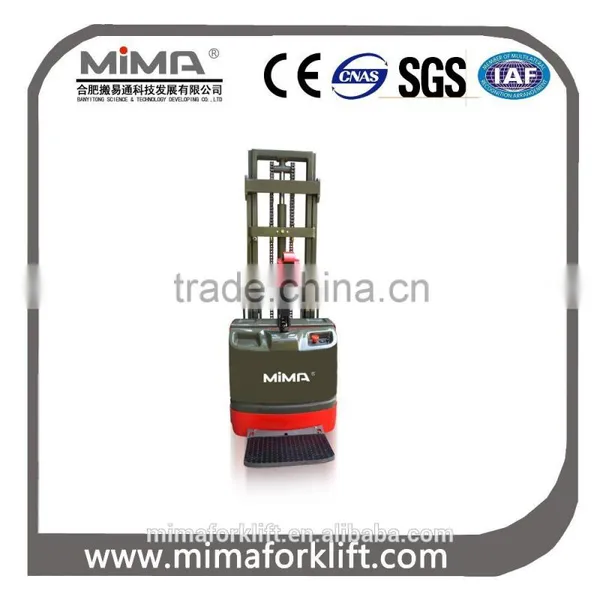

MIMA Top Rank Electric Pallet Stacker

Name: MIMA Top Rank Electric Pallet Stacker
Brand: MIMA
SKU: 108453267

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Anhui, China

Brand Name:

MIMA

Hefei Banyitong Science & Technology Developing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Anhui, China

Brand Name MIMA

Model Number TB

Type Powered Pallet Truck

Power Souce AC Motor

Rated Loading Capacity 1000~2000 Kg

Max. Lifting Height 4500mm

Min. Lifting Height 1600mm

Fork Length 1150mm

Fork Width 680mm

Overall Dimensions 2040mm*850mm*2055mm

Certification CE,ISO,SGS

After-sales Service Provided Overseas third-party support available

Description Model No.	TB10-16	TB15-25	TB15-30	TB10-35	TB15-40	TB20-45
Rated Load Capacity (KG)	1000	1500	1500	1000	1500	2000
Load Capacity At Max. Height --KG	1000	1500	1500	750	800	750
Max. Lifting Height (MM)-H3	1600	2500	3000	3500	4000	4500
Load center MM -C	500	500	500	500	500	500
Overall Length without pedal (MM)--L1	2040			2040	2058	2058
Overall Width (MM) -b1	850			850
Overall Width with Traning wheels(MM) -b4	/			1250		1250
Wheelbase (MM) --L3	1427			1427		1475
Height (MM)-Mast Lowered--H1	2085	1805	2055	2305	2570	2820
Free Lift Height (MM) --H2	/			/
Height (MM)-Mast Extended--H4	2085	3036	3536	4036	4551	5051
Height (MM)-Fork Face --H5	90			90
Height (MM)-Pedal -H6	137			137
Height (MM)-Handle-H7	1470/970			1470/970
Front Overhang (MM)--L2	338			338
Fork Size L×W (MM)	1150*190			1150*190
Outside Width--Fork(MM)--b3	680			680
Min. Turning Radius(MM)--Wa	1725			725		1743
Front Tread (MM)--b2	490			490
90°Stacking Aisle(MM) (1000*1000 Pallet)--Ast	2460			2460		2477
Grade Ability %	8			8
Travel Speed km/h-Laden/unladen	4.0/5.8			4.0/5.8
Driving Wheel (MM)	Φ215*75
Balance Wheel (MM)	Φ150*50
Front Wheel (MM)	Φ80*70
Battery V/AH-Domestic Brand	24/210
Charger V/A	24/30
Driving Motor (KW)	1.5			1.5
Lifting Motor (KW)	2.0			2.0
Service Weight (with battery)?KG	880	960	970	955	1070	1110
