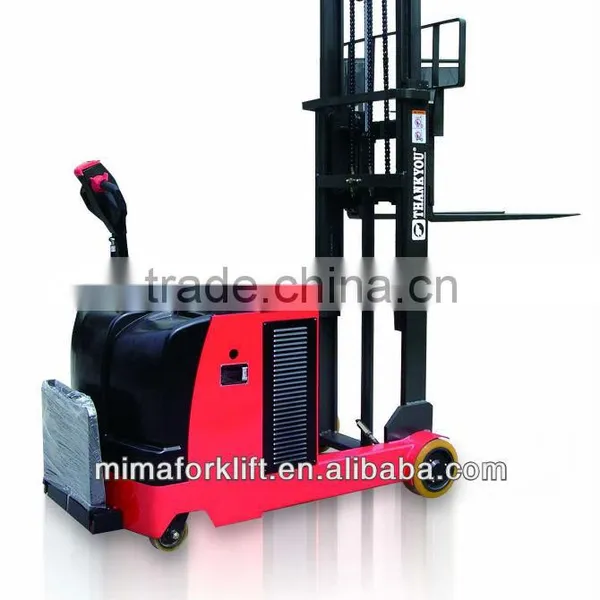

Electric Pallet Stacker(TBB Series)

Name: Electric Pallet Stacker(TBB Series)
Brand: MIMA
SKU: 108453289

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

China

Brand Name:

MIMA

Hefei Banyitong Science & Technology Developing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin China

Brand Name MIMA

Model Number TBB

Type Powered Pallet Truck

Power Souce AC Motor

Rated Loading Capacity 1000kg

Max. Lifting Height 3000mm

Min. Lifting Height 1600mm

Fork Length 1070mm

Fork Width 100mm

Certification CE,ISO,SGS

After-sales Service Provided Overseas third-party support available

Specifications

TBB Series is counterbalance pallet stacker, rated load capacity:1000kg, lift height 3000mm, used for double/single face pallet

1	Description	Electric pallet stacker with counterbalance
2	Model	TBB10-16	TBB10-25	TBB10-30
3	Load capacity Kg	1000	1000	1000
4	Load center mm	500	500	500
5	Max. lifting height mm	1600	2500	3000
6	Tilting angle (forward- backward) deg	0	0	0
7	Wheel type	Polyurethane solid tire
8	Brake	Electromagnetic
9	Fork size (LxW) mm	1070*100	1070*100	1070*100
10	Fork spread mm	220-680	220-680	220-680
11	Overall length mm	2750	2750	2750
12	Overall width mm	1010	1010	1010
13	Overall height mast closed mm	2140	1856	2106
14	Overall height fork raised (with backrest) mm	2460	3360	3860
15	Outside turning radius mm	1510	1510	1510
16	Max. walking speeds Km/h	4.0~5.0	4.0~5.0	4.0~5.0
17	Pedal length mm	500	500	500
18	Grade abitity %	5~8	5~8	5~8
19	Total weight (with battery) Kg	~1700	~1755	~1770
20	Driving wheel mm	Φ215*75	Φ215*75	Φ215*75
21	Front wheel mm	Φ267*114	Φ267*114	Φ267*114
22	Balance wheel mm	Φ150*50	Φ150*50	Φ150*50
23	Battery V/Ah	24/210	24/210	24/210
24	Charger V/A	24/30	24/30	24/30
25	Driving motor Kw	1.2	1.2	1.2
26	Lifting motor Kw	2.0	2.0	2.0
27	Control system	MOSFET
