DZH Model Special Design Professional Wood Fuel Boiler
DZH Model Special Design Professional Wood Fuel Boiler belong to biomass boilers series,please have a look DZH model wood fuel boiler phote firstly:
DZH Model Special Design Professional Wood Fuel Boiler

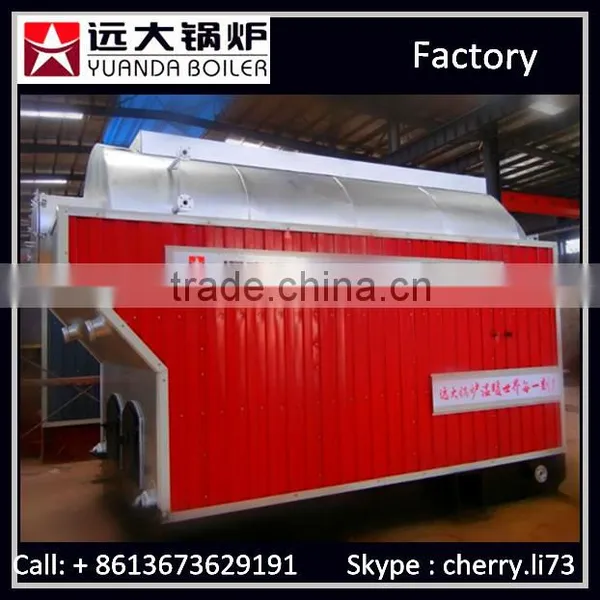

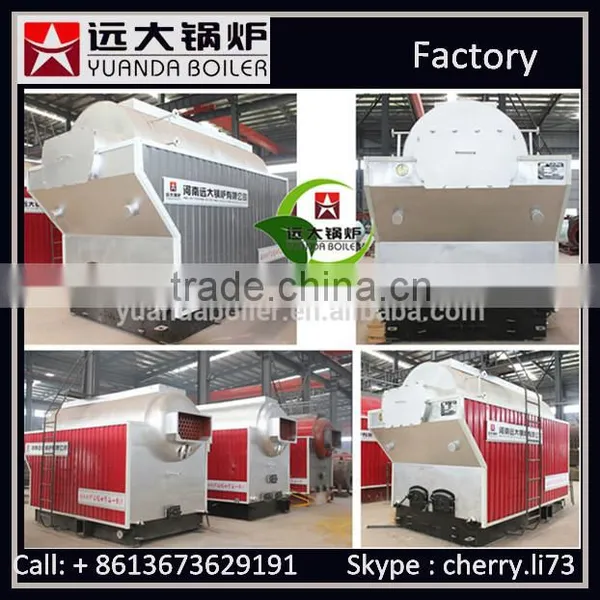

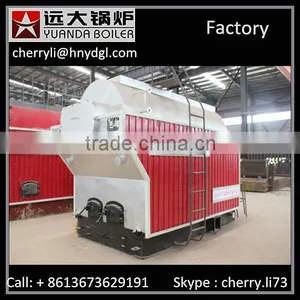

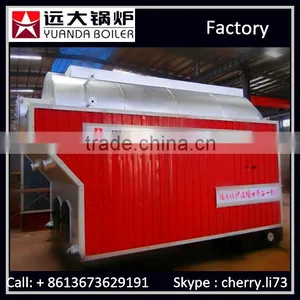

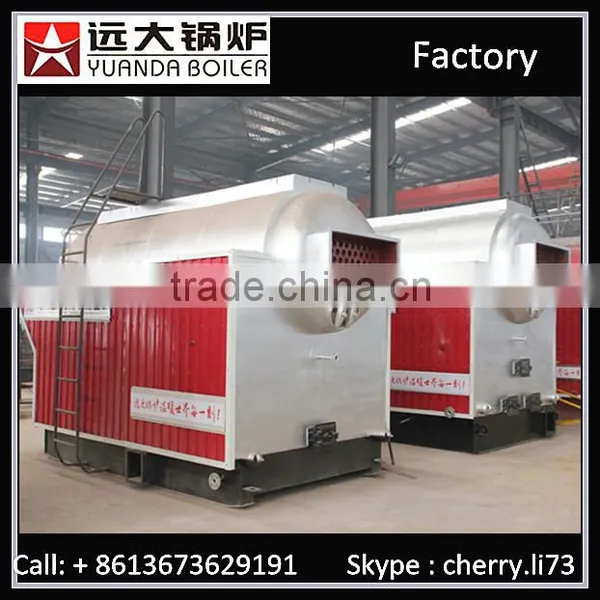

wood boilers pictures in our workshop:
Wood boilers operation site for you:
2 sets manual type wood steam boiler exported to Chile
wood fired manual type boiler woodfired boiler
Features:
1. Single cylinder, fire tube (Spirally corrugated tube) and water tube.
2. Packaged style,
3. Fuel can be wood pellet, peanut shell palm shell, coconut shell and other biomass fuel.
4. Hand fired type,and fix grate
5. Capacity 1Ton-6Ton/HR
lModel |
DZH1-0.7-AII |
DZH2-1.0-AII |
DZH4-1.25-AII |
DZH6-1.25-AII |
Rated evaporation( t/h) |
1 |
2 |
4 |
6 |
Rated steam pressure( Mpa) |
1.0 |
1.0 |
1.25 |
1.25 |
Feed water temp(°C ) |
20 |
20 |
20 |
20 |
Rated steam temp(°C ) |
184 |
184 |
194 |
194 |
active grate area( M2) |
1.85 |
3.4 |
5.18 |
7.55 |
Applicable coal style |
AII |
AII |
AII |
AII |
flue gas temperature(°C ) |
157.3 |
163.1 |
180 |
166.3 |
Designed thermal efficiency (%) |
80.33 |
80.54 |
80.28 |
80.94 |
Coal consumption (Kg/h ) |
118 |
238 |
472 |
685 |
Transportation Weight(t) |
13.2 |
13.8 |
23 |
32 |
Other fuels such like(rice husk,corn cob,coconusts shell etc)
Manual type wood boiler in the workshop:
----------Welcome to inquiry now,cherry 24H online service for you!---------------
Henan Yuanda Boiler Co.,LTD :
Henan Yuanda Boiler Co., Ltd. was established in 1956, After 50 years of development, Our main products have developed more than 150 kinds, Our main products including coal fired, biomass fired ,gas fired, oil fired boiler, which technology of all of the hot water boiler and industrial steam boiler have already quite mature . Especially in 2013, Yudan boiler did a full upgrade, first We are constantly learning and introducing new technology and second we have built another one new factory about 66,600 square meters to expand our production.
- Member of China Industrial Boiler Association
- China Welding Association
- Leading enterprises which first obtained the national boiler manufacturing license in China
YUANDA TEAM:
DZH Model Special Design Professional Wood Fuel Boiler
Yuanda Boilers Packing Standard:
Advantage: with more than 15 years exported experience,have long-term cooperation forwarder,can to suppy with lowest shipping cost for your reference.
Packing Standard: Boiler body in nude packing with protection film outsid, accessories are in export-use wooden box
0.2 to 1t/h capacity boiler with accessories put into normal 20'or 40' container
>2t/h capacity boiler main part should be put on flat rack, and accessories put into normal 20ft or 40ft container
Inquiry cherry now!
- Contact: Cherry
- Phone : 0086 13673629191
- Skype : cherry.li73
- E-mail : cherryli at
Send your Inquiry details in the below, click "Send" or send your requirements by Trademanager, click “Chat Now”!
We will send our catalogue to you soon.
