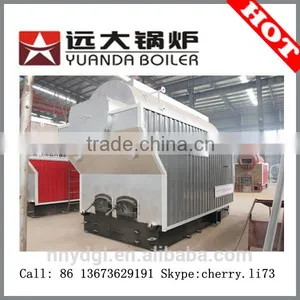

DZH4-1.25-T water tube wood fired steam boiler/furnace/generator
DZH4-1.25-T water tube wood fired steam boiler/furnace/generator
1>. Company introduction
Henan yuanda boiler - factory of 59 years experience
The Henan yuanda Boiler Co., Ltd. is a national sentinel boiler manufacturers, factories in 1956, reliable, efficient boilers, energy saving, environmental protection, performance, safety during use, the boiler can not afford to scale and improve the thermal efficiency of the boiler, increasing the life of the boiler.
Quality Assurance
We Yuanda Boiler is a more than 50 years old factory with B-grade qualification for boiler manufacturing and D-grade qualification for pressure vessel manufacturing.
Warranty
One-year warranty and full-life services with many considerate policies
Service
A full range of original spare parts are available for all Yuanda boilers.

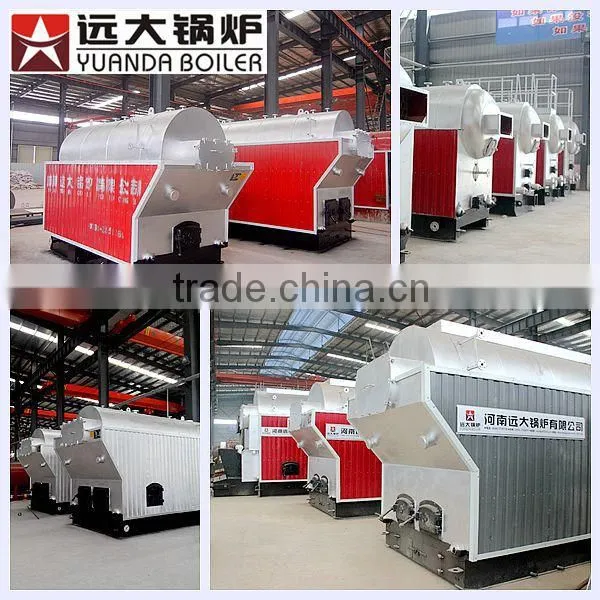

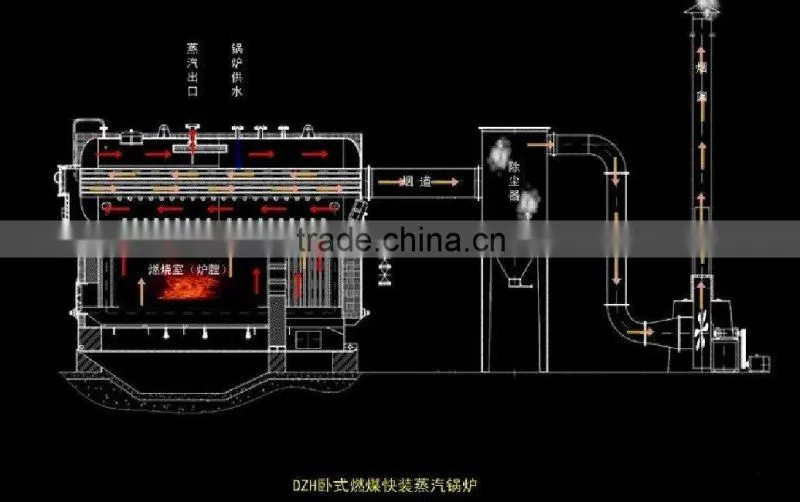

2>. DZH 1t 2t 4t 6t wood fired boilers for sale

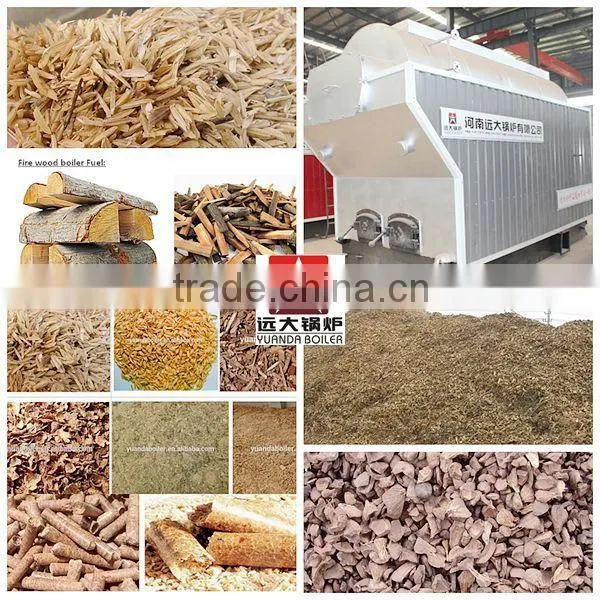

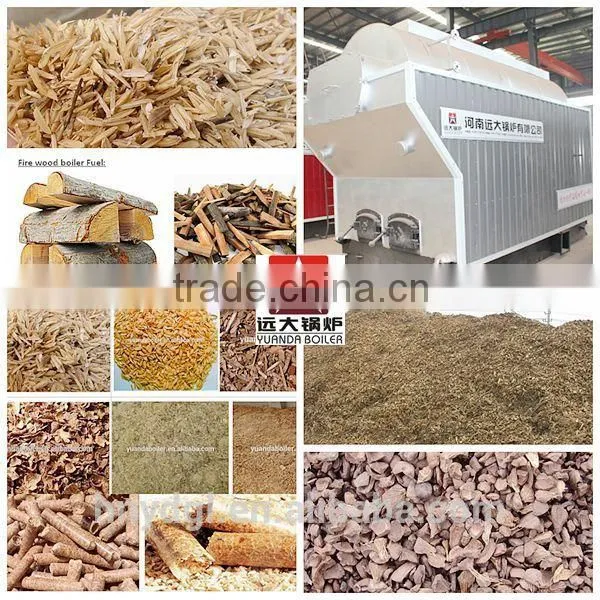

Fuel:all kinds of biomass,espeiclly in various wood
3>. Technical data---- DZH4-1.25-T water tube wood fired steam boiler/furnace/generator
DZH4-1.25-AII: 4ton coal fired steam boiler specification | |||
No. |
Name |
Unit |
Data |
1 |
Rated steam capacity |
t/h |
4 |
2 |
Rated Pressure |
Mpa |
1.25 |
3 |
Feed water temperature |
℃ |
20 |
4 |
Rated steam temperature |
℃ |
194 |
5 |
Hydraulic test |
Mpa |
2.0 |
6 |
Water volume |
m³ |
7.7 |
7 |
Cold air temperature |
℃ |
20 |
8 |
Exhaust smoke temperature |
℃ |
143 |
9 |
Design efficiency |
% |
79 |
10 |
Fuel consumption |
kg/h |
760@ 17.7MJ/kg |
11 |
Radiation heating area |
m² |
11.81 |
12 |
Convection heating area |
m² |
89.2 |
13 |
Economizer heating area |
m² |
43.2 |
14 |
Grate active area |
m² |
4.72 |
15 |
Smoke blackness |
Ringelmann |
<1 |
16 |
Applied fuel |
AII |
|
17 |
Boiler main part dimension |
mm |
5650X2550X3434 |
18 |
Boiler main part weight |
T |
18.5 |
How to control quality ?
1. Strictly control the quality of raw materials
2. With 58 year rich experience technical team,more than 500 peoples
2.The international advanced production equipment,workshop 8000M2

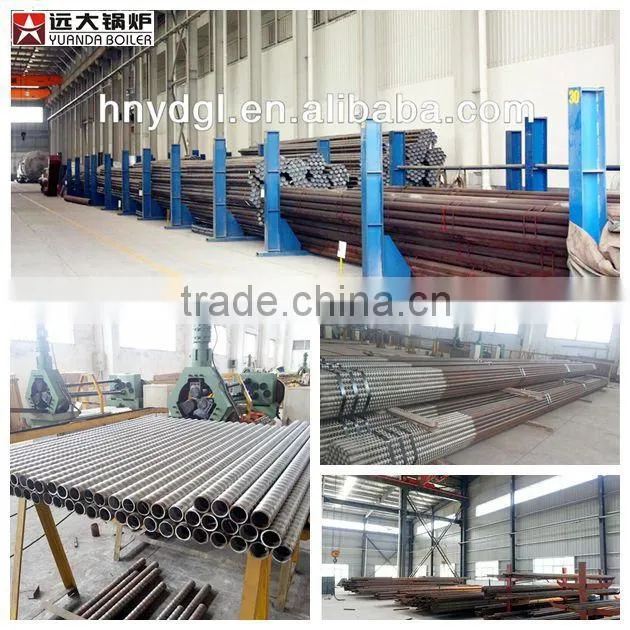

Raw Materials Shop:

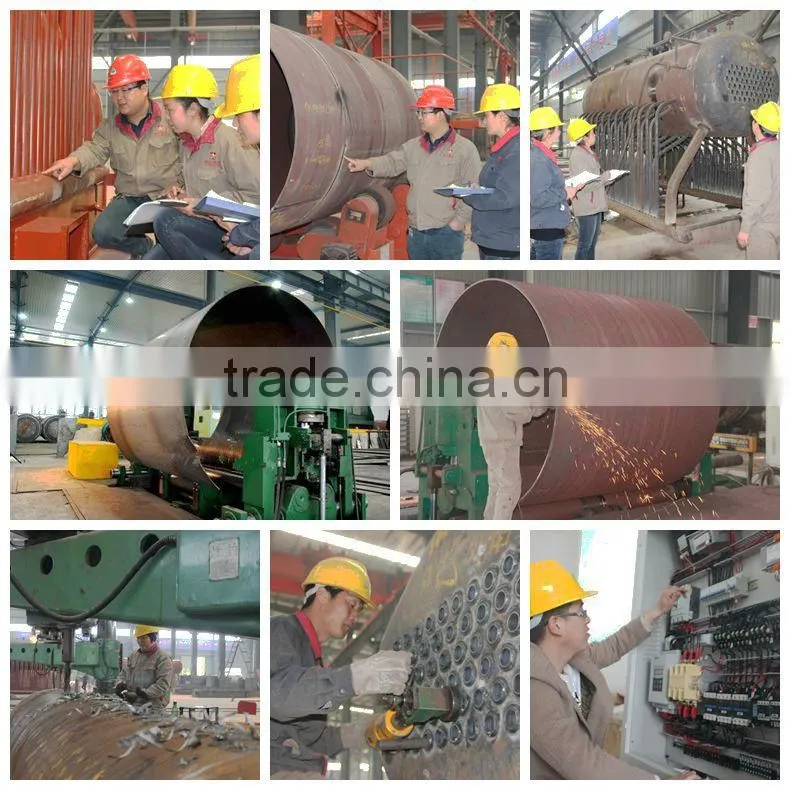

Professional Technician:
Guarantee&Service---customers is the first!
SERVICE:
Design and manufacture products according to clients' special requirement;
Respect clients, devote ourselves to improving the total value of clients.
1>. One-year warranty and full-life services with many considerate policies ;
2>. 24H On line Help clients to draft solving plans by email.
