1t 2t 4t 6t Wood for Firewood Industrial Steam Boiler

1t 2t 4t 6t Wood for Firewood Industrial Steam Boiler photo-1
1t 2t 4t 6t Wood for Firewood Industrial Steam Boiler photo-2
1t 2t 4t 6t Wood for Firewood Industrial Steam Boiler photo-3
1t 2t 4t 6t Wood for Firewood Industrial Steam Boiler photo-4
1t 2t 4t 6t Wood for Firewood Industrial Steam Boiler photo-5
1t 2t 4t 6t Wood for Firewood Industrial Steam Boiler photo-6
US$ 20,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Natural Circulation
Usage:
Industrial
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Natural Circulation
Usage Industrial
Structure Other, fire tube and water tube
Pressure Low Pressure
Style Horizontal
Fuel Other, wood,wood chips
Place of Origin Henan, China
Brand Name yuanda wood boilers
Model Number DZH wood for firewood boiler
Output Steam
Dimension(L*W*H) standard
Weight standard
Certification ISO9001,BV,SGS
After-sales Service Provided Engineers available to service machinery overseas

1t 2t 4t 6t wood for firewood industrial steam boiler



Product Description

1t 2t 4t 6t wood for firewood industrial steam boiler



wood boilers it belong to biomass boiler series,this series boiler adop high efficiency heat conducting spirally corrugated tube,and special furnace desiged,it can use all kind of biomass as fuel,especially in wood as fuel,so wood boilers can save operation cost in large degree.

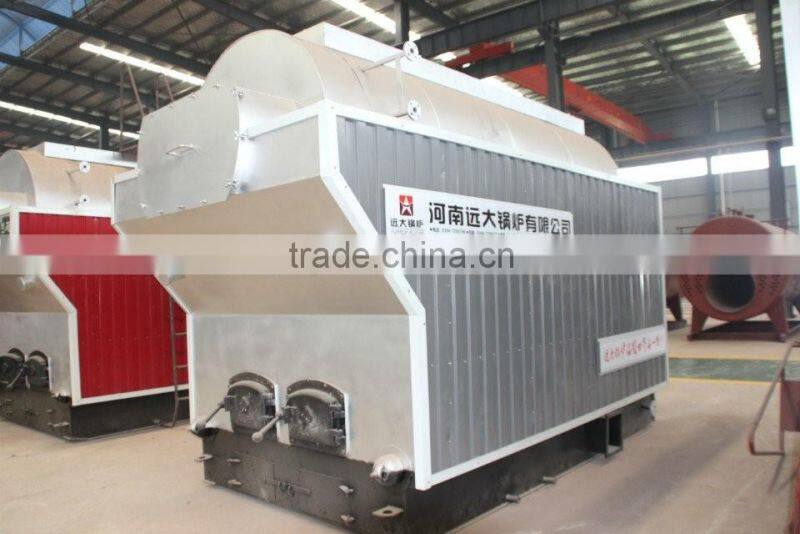

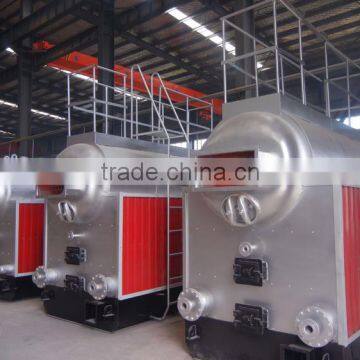

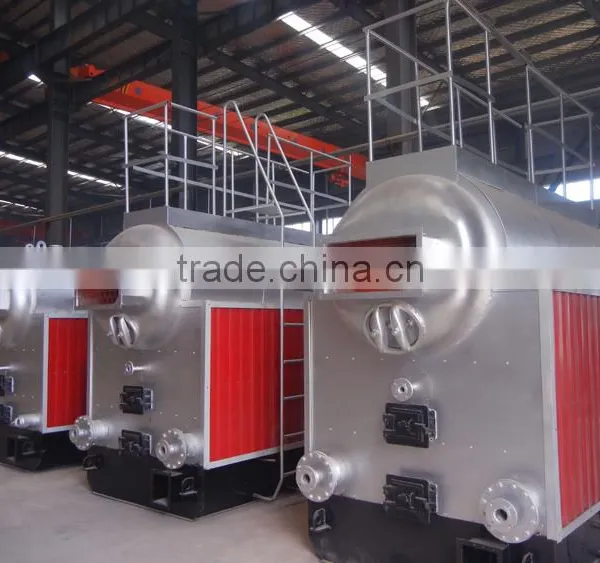

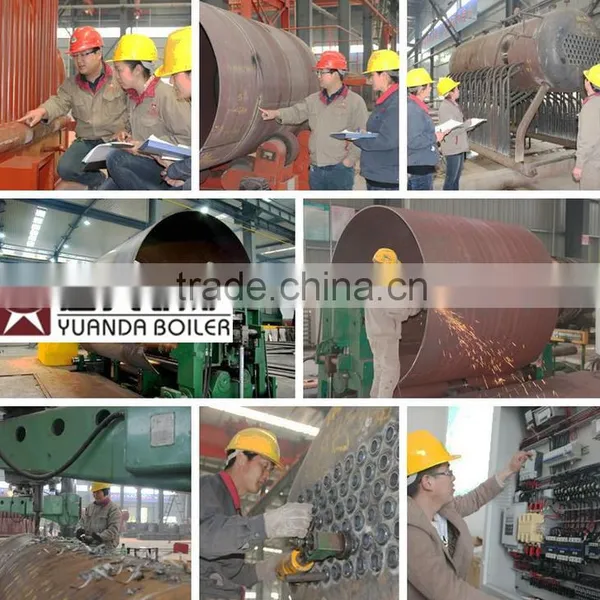

wood boilers pictures in our workshop:

1t 2t 4t 6t wood for firewood industrial steam boiler

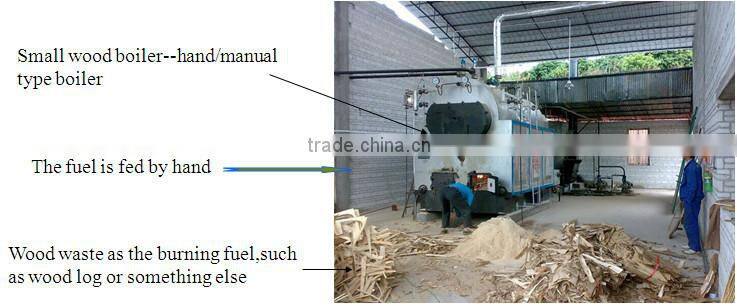

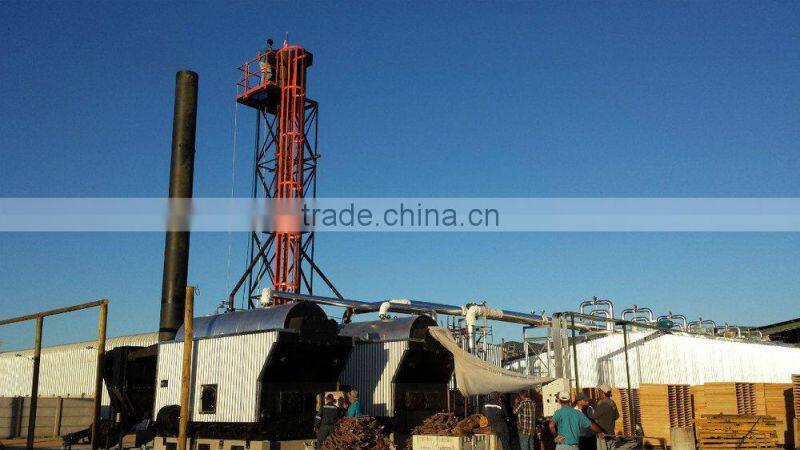

Wood boilers operation site for you:



1t 2t 4t 6t wood for firewood industrial steam boiler

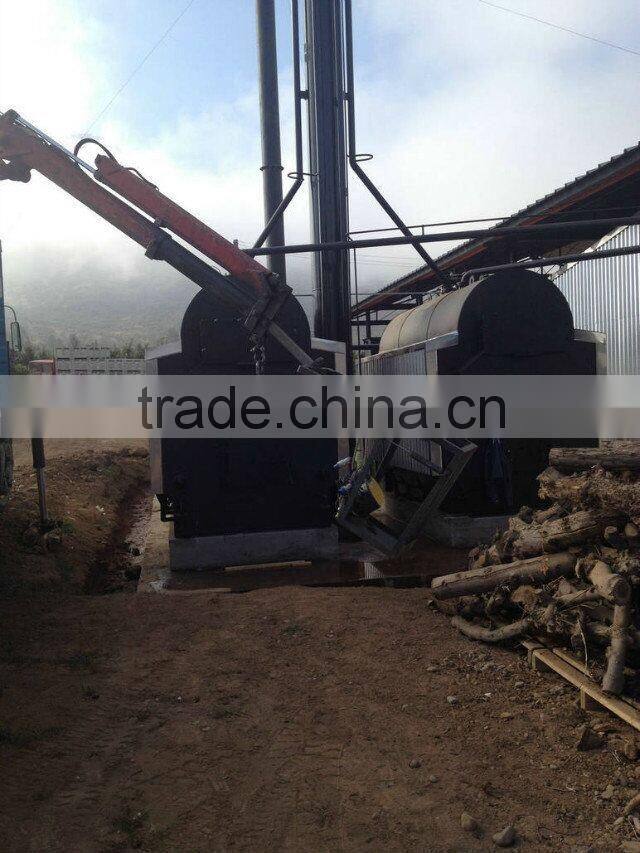

2 sets manual type wood steam boiler exported to Chile

1t 2t 4t 6t wood for firewood industrial steam boiler

1t 2t 4t 6t wood for firewood industrial steam boiler

wood fired manual type boiler woodfired boiler

Features:

1. Single cylinder, fire tube (Spirally corrugated tube) and water tube.

2. Packaged style,

3. Fuel can be wood pellet, peanut shell palm shell, coconut shell and other biomass fuel.

4. Hand fired type,and fix grate

5. Capacity 1Ton-6Ton/HR



1t 2t 4t 6t wood for firewood industrial steam boiler

lModel

DZH1-0.7-AII

DZH2-1.0-AII

DZH4-1.25-AII

DZH6-1.25-AII

Rated evaporation( t/h)

1

2

4

6

Rated steam pressure( Mpa)

1.0

1.0

1.25

1.25

Feed water temp(°C )

20

20

20

20

Rated steam temp(°C )

184

184

194

194

active grate area( M2)

1.85

3.4

5.18

7.55

Applicable coal style

AII

AII

AII

AII

flue gas temperature(°C )

157.3

163.1

180

166.3

Designed thermal efficiency (%)

80.33

80.54

80.28

80.94

Coal consumption (Kg/h )

118

238

472

685

Transportation Weight(t)

13.2

13.8

23

32

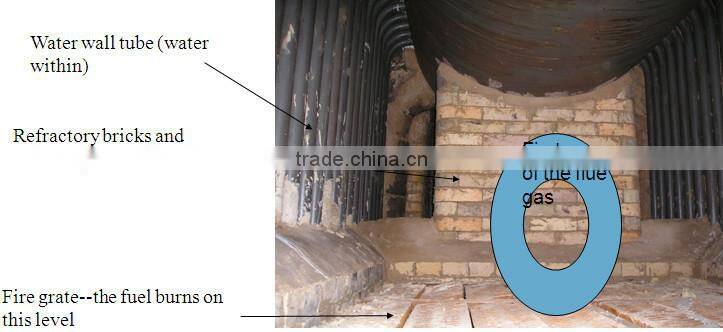

Wood boiler Internal structure pictures:

1t 2t 4t 6t wood for firewood industrial steam boiler



1t 2t 4t 6t wood for firewood industrial steam boiler

Other fuels such like(rice husk,corn cob,coconusts shell etc)

1t 2t 4t 6t wood for firewood industrial steam boiler

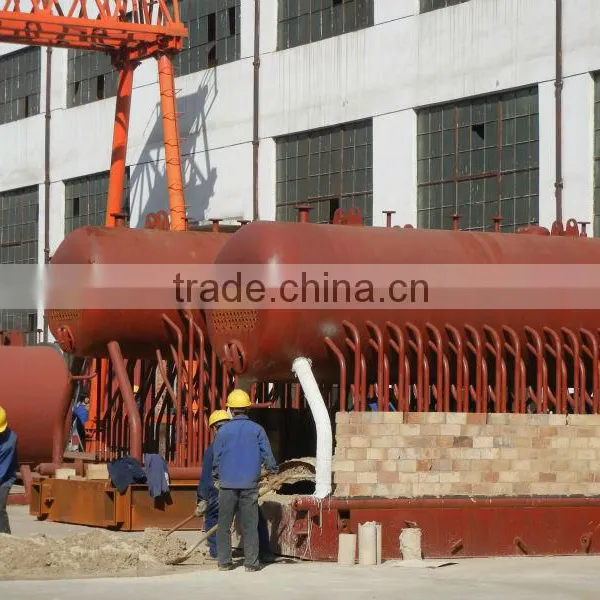

Manual type wood boiler in the workshop:

1t 2t 4t 6t wood for firewood industrial steam boiler

Company Introduction

   ----------Welcome to inquiry now,cherry 24H online service for you!---------------

Henan Yuanda Boiler Co.,LTD :



Henan Yuanda Boiler Co., Ltd. was established in 1956, After 50 years of development, Our main products have developed more than 150 kinds, Our main products including coal fired, biomass fired ,gas fired, oil fired boiler, which technology of all of the hot water boiler and industrial steam boiler have already quite mature . Especially in 2013, Yudan boiler did a full upgrade, first We are constantly learning and introducing new technology and second we have built another one new factory about 66,600 square meters to expand our production.

  • Member of China Industrial Boiler Association
  • China Welding Association
  • Leading enterprises which first obtained the national boiler manufacturing license in China

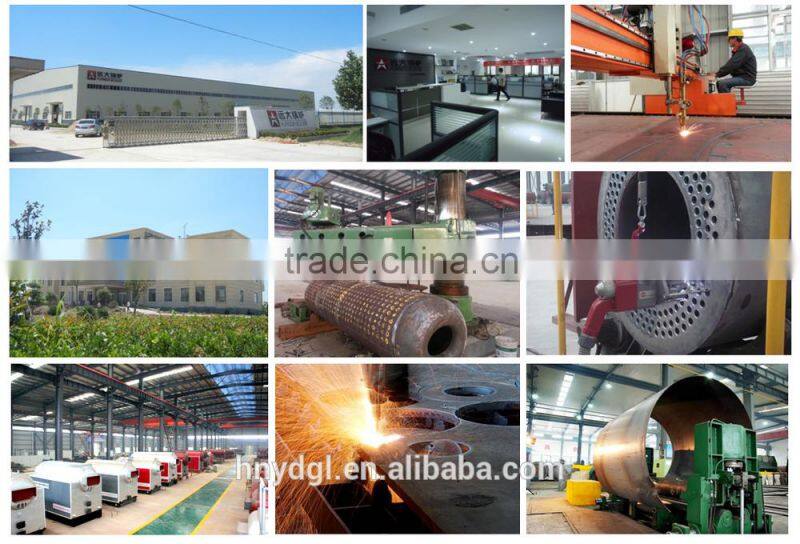

YUANDA TEAM:

1t 2t 4t 6t wood for firewood industrial steam boiler
1t 2t 4t 6t wood for firewood industrial steam boiler
FAQ

Yuanda Boilers Packing Standard:

Advantage: with more than 15 years exported experience,have long-term cooperation forwarder,can to suppy with lowest shipping cost for your reference.

Packing Standard: Boiler body in nude packing with protection film outsid, accessories are in export-use wooden box

1t 2t 4t 6t wood for firewood industrial steam boiler

0.2 to 1t/h capacity boiler with accessories put into normal 20'or 40' container

>2t/h capacity boiler main part should be put on flat rack, and accessories put into normal 20ft or 40ft container

1t 2t 4t 6t wood for firewood industrial steam boiler
