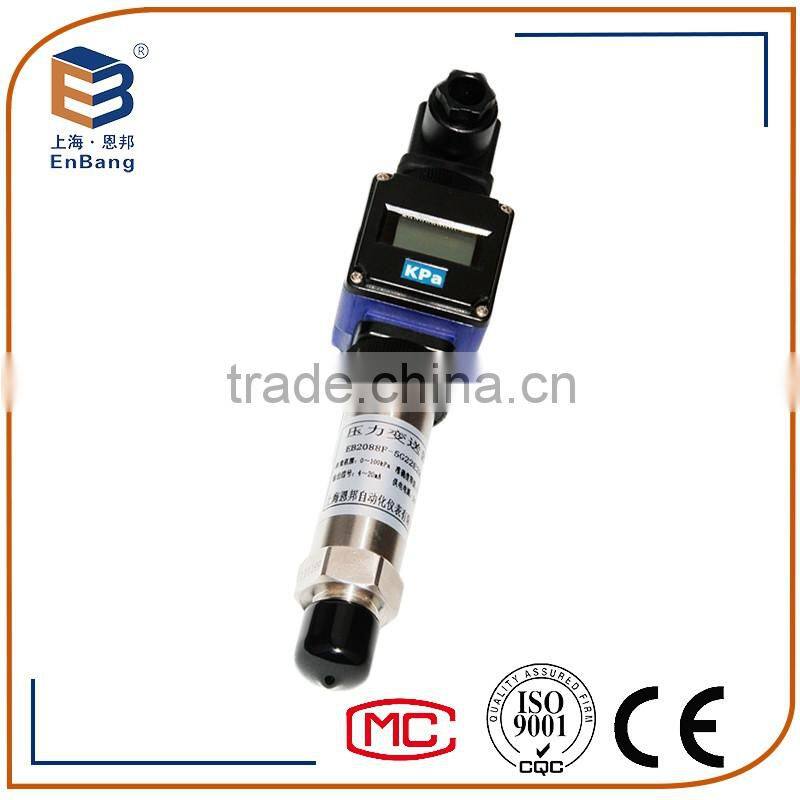

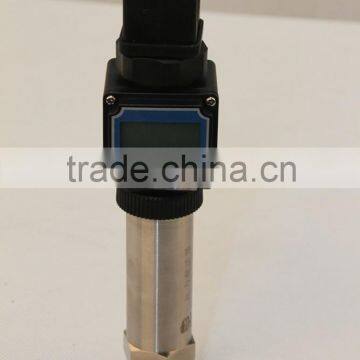

Low Cost Electric Low Cost Pressure Sensor

 Summary :

EB 2088F series pressure transmitter adopts the international advanced level of diffused silicon sensor core, with high precision electronic components, and the process of laser modulation and temperature compensation, linear compensation, signal amplification, V/I conversion, pressure overload and other process, and the process of long-term aging and stability, etc.. Completed functional testing of over-voltage, over current, reverse, lightning electromagnetic interference,and etc. Applicable to all industries such as petroleum, chemical, metallurgy, power station, ship, pharmaceutical, food and so on. It is a very high cost-performance of products. Can according to customer’s requirement with the scene LED/ LCD meter display and output of industry standard 4 ~ 20mA signal, 0% ~ 100% linear pointer table. According to customer requirements to provide intelligent HART communication output.

Characteristic :

Product performance is stable and reliable, strong overload and impact resistance, compact and firm structure, convenient installation, strong practicability, simple operation

High performance sensitive components: low temperature drift, good stability, high accuracy of measurement

Strong anti-interference ability: waterproof, dustproof, shockproof, anti-corrosion

Wide applicability: this Series products have many types and many kinds of connection mode, small volume, light weight, suitable for all kinds of measurement occasions

Technical Specification:

Measurement range: -100kPa ~ 2.0MPa, 0 ~ 60MPa

Output signal: Analog 4 - 20mA, 1 ~ 5V; Intelligent 4 - 20mA HART protocol communication

Working voltage: 24V DC, 12 ~ 36V DC, 18.5 ~ 220V DC, AC 50HZ, 45V

Precision: 0.1%F.S; 0.2%F.S; 0.5%F.S

Threaded Joint: M20*1.5; G1/2; flange connection (special specification can be customized according to customerdemand)

Temperature range: -20 ~ 70ºC

Explosion proof grade: normal; ExiaIICT6; ExdIIBT4;

Electrical connection: direct lead, explosion-proof connection, terminal connection(special specification according to customer demand for customized)

Suffix Codes and Description
