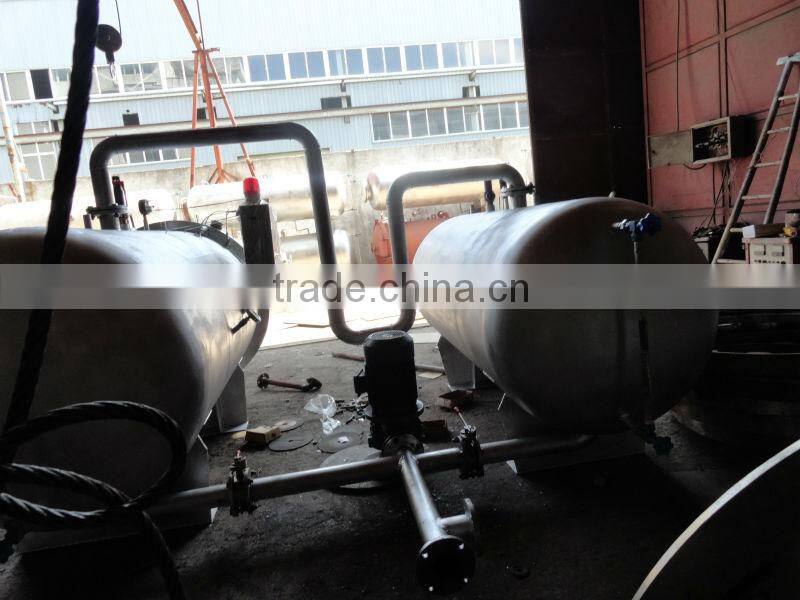

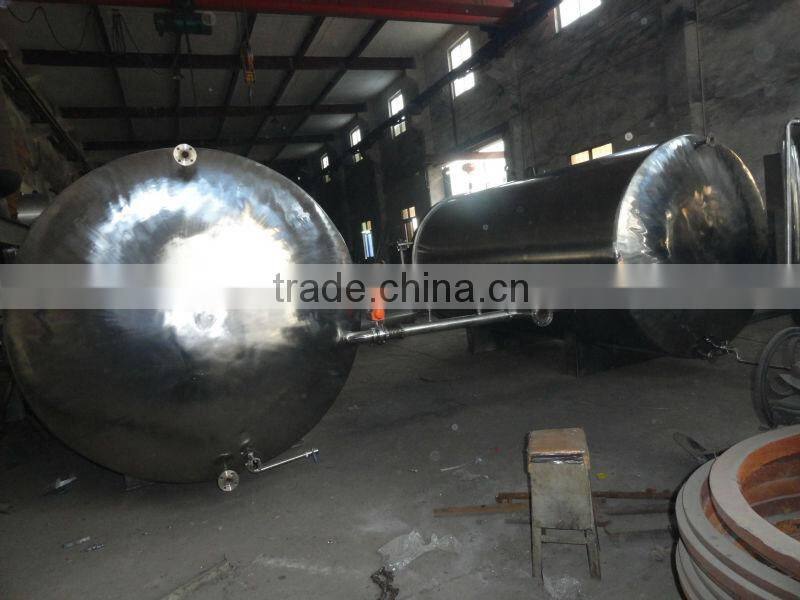

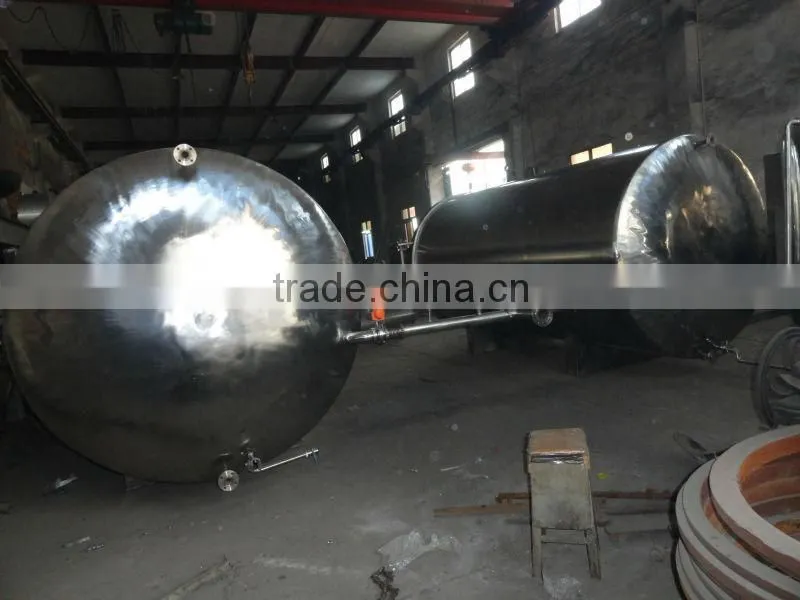

Help Center(Manufacturer)Water Rotary Immersion Retort / Spray Retort Sterilizer
Related Products
-
(Manufacturer)plastic Bottles Rotary Retorts /Autoclave /SterilizerUS$ 2,000 - 6,000MOQ: 1 Set -
(Manufacturer)plastic Bottles Rotary Retorts /Autoclave /SterilizerUS$ 2,000 - 6,000MOQ: 1 Set
-
(Manufacturer)Full Automatic Water Bath Sterilizing RetortUS$ 2,000 - 6,000MOQ: 1 Set
-
(Manufacturer)Horizontal Double Pan Retort Food ProcessingUS$ 2,000 - 6,000MOQ: 1 Set
-
(Manufacturer)Rotary Vacuum Fill Closing Retort Pouch MachineUS$ 2,000 - 6,000MOQ: 1 Set
Specifications
(Manufacturer)Water Rotary Immersion Retort / Spray Retort SterilizerSpecifications
1. Sterilize packed food
2. High stability and high sterilizing efficiency
3.Horizontal
4. Semi-Automatic
5.SUS304/316
Production details:
1. Directly heat,directly cool down,shorten the sterilizing time to ensure the quality of products.
2. The pressure is controlled in subsection to ensure no package transforming in the processing.
3. The glass bottle and fragile package would not be broken when the temperature changes because of the soft sterilization.
Description:
1)Steilizing type:wate-bath
2)Control type:Full automatic (we also produce semi-automatic type and manual type)
3)Energy resources:electricity and steam
4)Material of body:full stainless steel(SUS304,not easy to rust) ,Carbon steel,semi-carbon steel(Stainless steel retort's price is 1.5 times of carbon steel retort)
5)Design temperature:147degree
6)Design pressure:0.35Mpa(we can design the pressure as your food request)
7)The food can sterilize: Large bag meat(like roast chicken/duck,sausage etc,),bottles products resistant high temperature and high pressure and so on.
The advantages of our retort
1, Uniform water exchange mode realizes uniform temperature without dead angle
This equipment is developed based on the Double Layers Water Bath Type Sterilizing Retort. Compared with double-layer sterilizing retort, it can increase output by 50%,and save energy. At the same time, users can reduce their investment cost greatly.
2,Uniform water exchange mode realizes uniform temperature without dead angle
The circulation water within the kettle is switched continuously in all directions to ensure uniform heat distribution during each period. Therefore, foods placed in different positions of the plate can receive ideal uniform heating, which can avoid dead angle, make quality guarantee period more stable and longer, and reduce change of Fvalue and overheating.
3, High Temperature Instant Sterilization
It adopts double tanks of hot water circulation to make sterilization. The sterilizing tank heats the water to required temperature (except multilevel sterilization) to reduce time of sterilization and improve working efficiency.
4,High Sterilizing Precision
It adopts international advanced technology, and makes use of hot water circulation and dipping sterilization. During sterilization, temperature, pressure,time,water intake,drainage,air intake and exhaust are controlled intellectually, and the temperature is precise(±0.5°C).
5,Energy Saving
The medium used during sterilization can be recycled, which can save energy, time and manpower, and reduce cost of production
6,Automatic Control System
1. Control through touchable screen rather than switches
2. Adopt chart panel rather than dial.
3. All periods are controlled by simulative sensor and automatic valve.
4.Pressure and temperature are displayed digitally.
5.All procedures are recorded in disk, and can be pinted through printer.
The entire sterilization is contolled by computer PLC,and no manpower is required.
7,The function of Fvalue measurement
Each sterilizing kettle manufactured by Liang gong Company can be installed with Fvalure Measure instrument which has the function of Fvalue measurement .The Fvalue software makes a Fvalue calculation every 3 seconds .All sterilizing data, including sterilizing condition ,Fvalue ,time-temperature curve and time-pressure curve can be recorded or printed after being processed by the software.
8,Store sterilizing formula
Technical parameters of Autoclave
Volume |
600L |
1100L |
1900L |
2200L |
3100L |
4000L |
Body diameter (mm) |
800 |
900 |
1000 |
1100 |
1100 |
1200 |
Body length (mm) |
1000 |
1500 |
2000 |
2000 |
3000 |
3000 |
Material |
SUS304/ Q235-B |
|||||
Designed pressure |
0.35MPa |
|||||
Working pressure |
<0.3MPa |
|||||
Designed temperature |
140.7°C |
|||||
Working temperature |
<135°C |
|||||
Technical requirements of Autoclave
