Electrical Actuator, Quarter Turn Actuator, Motorized Actuator, Elektrischer Stellantrieb

Specifications

 I. Company Profile

 As a high-tech enterprise, Kangsaite Valve Co., Ltd. is specialized in the research & develop and production of various pneumatic valve, electrical valve, solinoid valve, diaphragm valve, pneumatic actuator, electrical actuator, etc. We boast solid technology, advanced production process, sophisticated testing facilities, superior products. We are equipped with CAD R &D and CIMS computer network mangement, processing center, mumerical controlled machine tool. Production, quality control, sales and service are executed in strict accordance with ISO9001 international quality standard system. With a view to ensuring the quality, the products are manufactured in accordance with such industrial stanards as ISO, DIN, 3A, IDF, SMS, JIS and GB so that the quality meets the specifications and requirements of FDA/GMP.


We have provided over million sets of pneumatic angle seat valve, the pneumatic (electrical) actuators, various pneumatic (electrical) ball & butterfly valves, and all kinds of control valves, which are widely used in such sectors as natural gas, oil, papermaking, printing and dyeing, dairy products, pharmacy, food, feed, beer, environmental water treatment, cosmetics and chemical. A huge amount of high-tech automatic control valves are and will be needed by valve factories, equipment manufacturers, valve distributors, project contractors, valve design institute and end users. Valves and pneumatic & electrical actuators from Kangsaite are good choice for automatic fluid control engineering and equipment modernization and win clients’ trust by their quality and service.

II. Product Information

Electrical Actuator (Modulating Type)

Model: KST-02, 05, 10, 20, 40, 60, 100
Torque Scope: 50-1000 N.m
Working Range: 0-360°
Ambient Temp.:-30°C~+60°C
Cover:Aluminum alloy
Protection Class:IP68
Voltage:24V AC, 24VDC, 110VAC, 220VAC, 380VAC

Type: On-off, regulating, passive contact

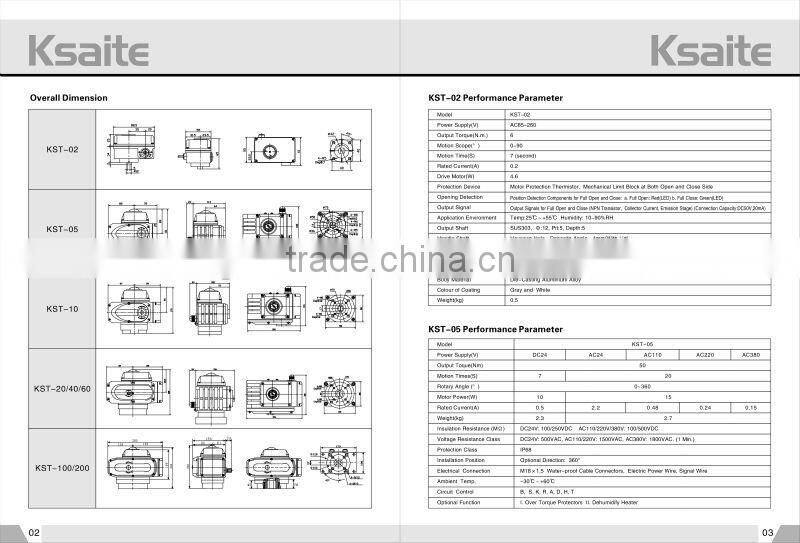

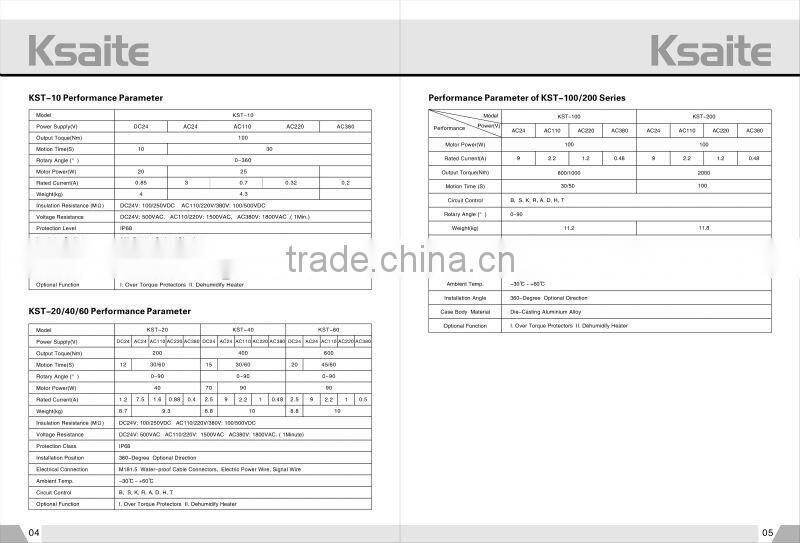

III. Product Dimension and Specification

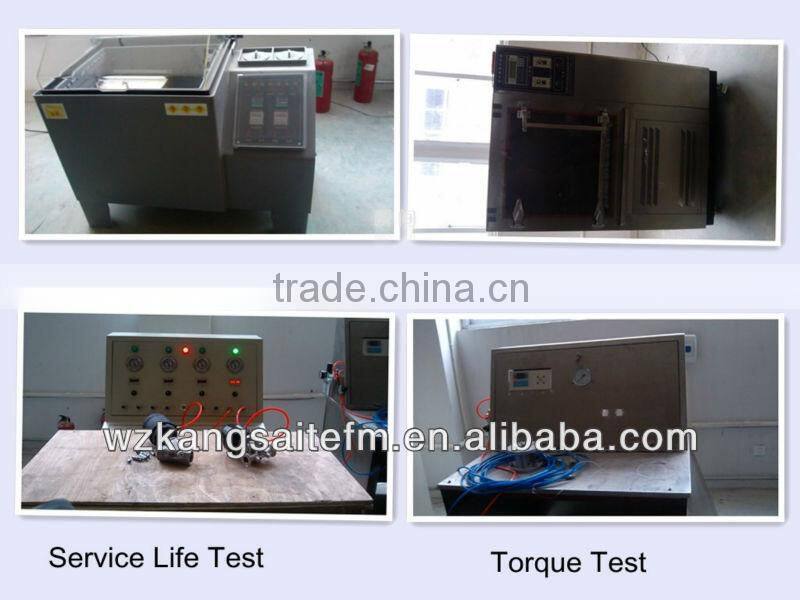

 IV. Test Machines
