Flexible copper conductor Rubber insulated cable 240mm
- 200 Kilometer / Kilometers per Month
- China main port
- T/T L/C D/P D/A
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Henan, China | Brand Name: | jytop | Model Number: | Rubber CABLE 240mm |
Insulation Material: | Rubber | Type: | Low Voltage | Application: | Industrial |
Conductor Material: | Copper | Jacket: | Rubber |
Product Description
Specifications
Rubber CABLE 240mm manufacturerfor the drives devices, household electrical instrument, all kinds of portable electrical equip
General Rubber Sheathed Flexible Cable
1. Description
Construction: Class 5 flexible plain copper conductor, Rubber insulated and rubber sheathed cable
Chinese Type | Description | Core qty | Nominal cross-section(mm2) | Application |
YQ YQW | 300/500V Light-type Rubber Sheathed Flexible Cable | 2,3 | 0.3~0.5 2, 3, 4, 5 | For portable electric instruments, equipments and tools |
YZ YZW | 300/500V Medium-type Rubber Sheathed Flexible Cable | 2, 3, 4, 5 3+1 | 0.75~6 1.5~6 | For portable electric instruments, equipments and tools and can afford larger external forces |
YC YCW | 450/750V Heavy-type Rubber Sheathed Cable | 1 2 3, 4 5 3+1 | 1.5~400 1~95 1~150 1~25 1.5~150 | For portable electric instrument, equipment and can afford larger external forces and weather-resistance and oil-resistance |
SPECIFICATION OF RUBBER CABLE H07RN-F
- Application
These cables are designed to provide high flexibility and have the capacity to withstand weather, oils/greases, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments.
- Standards
BS7919, CENELEC HD22.4 S4
- Technical data
Conductor Temperature rating
Class 5 flexible plain copper conductor operating temperature
to BS EN 60228:2005 (previously BS6360) -300C to +600C(850C max.)
Insulation Min. bending radius
EPR(Ethylene propylene rubber) Up to 25mm2: 6 x overall diameter
type E14 to BS 7655 Above 25mm2: 8 x overall diameter
Sheath
PCP (Polychloroprene) Type EM2 Core identification:
to BS7655 2 cores: Blue, Brown
Sheath color 3 cores: Green/Yellow, Blue, Brown
Black 4 cores: Green/yellow, Brown, Black, Grey
Voltage rating 5 cores: Green/yellow, Blue, Brown, Black, Grey
450/750V 6 cores and above: Black with white numbers,Green/Yellow

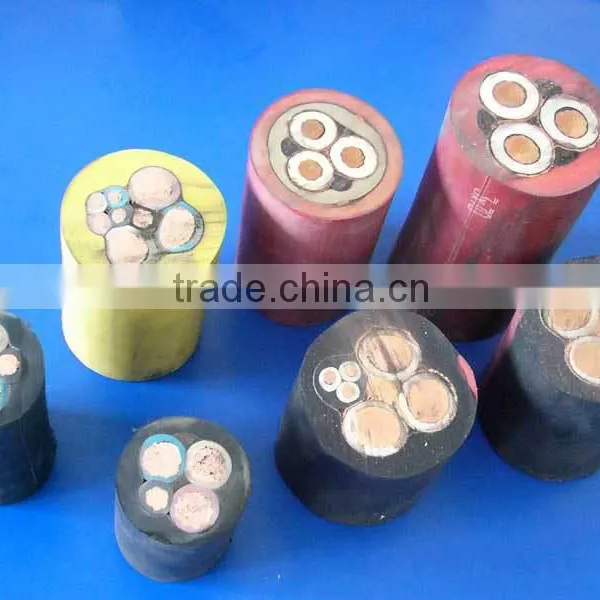

Rubber CABLE 240mm
