Specifications

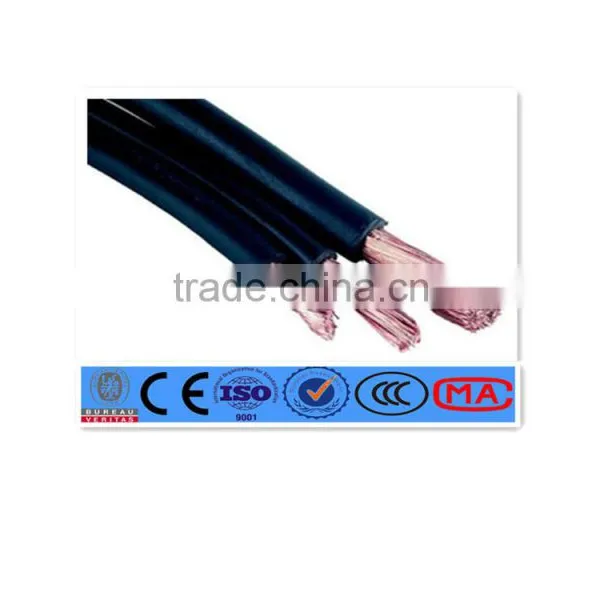

Rubber CABLE manufacturerfor the drives devices
household electrical instrument
all kinds of portable electrical equipments
1. Standard
Rubber insulated cable with rated voltage up to 450/750V is in accordance with the Chinese national standard GB5013, equivalent to IEC60245. Rubber insulated flexible wire and cable with rated voltage up to 450/750V is in accordance with the standard JB8735, equivalent to IEC60245.
2. Application
The cable is suitable for the drives devices, household electrical instrument, all kinds of portable electrical equipments and electromotive tools at A.C. rated voltage up to and including 450/750V. The long-time max. permissible working temperature of conductor is 60°C.
3. Type, Description and Specification
Chinese Type |
Description |
Rated Voltage(V) |
Qty. of Core |
Nominal Cross-Section(mm2) |
Application Site |
|
YQ YQW |
Light-type Rubber Sheathed Flexible Cable |
300/500 |
2,3 |
0.3~0.5 2, 3, 4, 5 |
For portable electric instruments, equipments and tools |
|
YZ YZW |
Medium-type Rubber Sheathed Flexible Cable |
300/500 |
2, 3, 4, 5 3+1 |
0.75~6 1.5~6 |
For portable electric instruments, equipments and tools and can afford larger external forces |
|
YC YCW |
Heavy-type Rubber Sheathed Cable |
450/750 |
1 2 3, 4 5 3+1 |
1.5~400 1~95 1~150 1~25 1.5~150 |
For portable electric instrument, equipment and can afford larger external forces and weather-resistance and oil-resistance |
