Home > Products > Building Wire > High Quality NYA Cable, NYA Factory price with CE
High Quality NYA Cable, NYA Factory price with CE
- 1000000 Kilometer / Kilometers per Month
- Main Ports of China
- T/T L/C D/P D/A
- NF24Q100-01 Carlisle Tensolite Aviation cables
- GSC-13-84943-07 GORE Aviation fiber optic transmission cable
- RCN8687 GORE Advantage products RCN8687 8989 9053
- TE 10612-24-9 Cheminax Spot inventory can be shipped at any time
- Power Accessories Photovoltaic lines Wires UL10269 high voltage cable
- Factory Direct House Wiring 2.5mm2 Single Core Flexible Copper Wire Electrical Wire Installation Electric Cables Price
Product Details
Place of Origin: | Henan, China | Brand Name: | JYTOP | Model Number: | pvc insulated wire |
Type: | Insulated | Application: | Other, General purpose | Conductor Material: | Copper |
Conductor Type: | Other, Stranded or Solid | Insulation Material: | PVC |
Product Description
May be you are also interested about
300/300V PVC Insulated Parallel Flexible Cords to BS 6500
300/500V PVC Insulated Twisted Twin Flexible Cords to BS 6500
300/300V PVC Insulated PVC Sheathed Parallel Twin Light Flexible Cords to BS 6500
300/500V Copper conductor PVC insulated flexible wire 3cores
300/500V PVC Insulated Twisted Twin Flexible Cords to BS 6500
300/500v pvc twin flat cable
JYTOP CABLE Company Description
1. CE, ISO 9001 Certificaes
2. More than 23 years experiences
3. Professional Manufacturer with Factory located in Henan Province.
4. Quick response and fast delivery.
5. Serve everyone with heart and soul.
Cable Description
High Quality NYA Cable, NYA Factory price with CE
Application:
Insulated conductor(Electrical Wiring H07V-R h07v-u 450/750V) used for laying in electric-installation tubes, under and on plaster installation in dry rooms and in closed installation conduits. Direct laying in cable guides is not permitted. Also applied for internal wiring of distribution and switching boxes equipment, same as for protective laying for lighting of nominal voltage up to 1000 V alternating current, or up to 750 V direct current against earth.
Standards:
National DIN VDE 0281 part 1; DIN VDE 0281 part 3; DIN VDE 0293; DIN VDE 0295
Certification: CE
nya cable Construction:

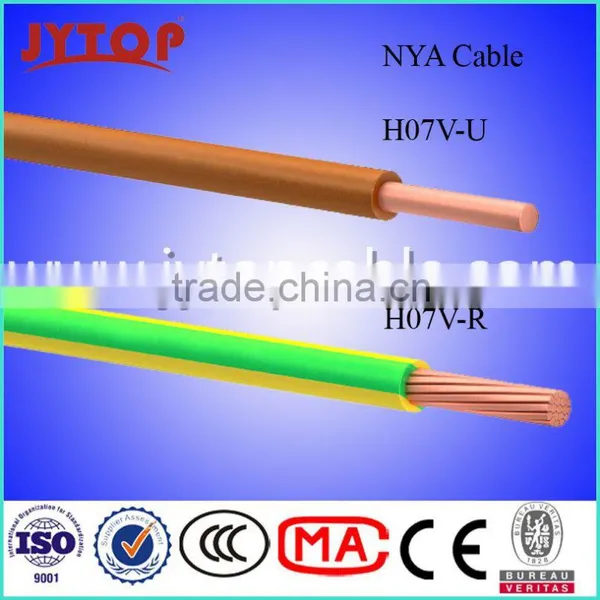

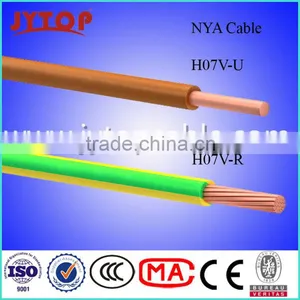

H07V-R (NYA) | |
Voltage: | 450/750V |
Code: | H07V-R |
Standards: | HD 21.3 S3, VDE 0281-3, BS 6004 |
Construction: | 1- Stranded Copper Conductor |
2- PVC insulation | |
Application: | Preferably for installation indoors, in cable ducts and in industrial plants or switching stations, under ground installation. |
Technical Data: | Max. operating temperature 70 ºC |
Short circuit temperature 160 ºC |
NYA CableTechnical characteristics:
Nominal cross- sectional area | App. Dia. of cable | Weight | Conductor DC resistance at 20°C | Max. current carrying capacity at 30°C | |
(mm2) | (mm) | (Kg/km) | (Ω/km) | Pipe A | Air A |
1.5 | 2.93 | 19.85 | 12.1 | 16 | 25 |
2.5 | 3.58 | 31.49 | 7.41 | 20 | 34 |
4 | 4.09 | 45.83 | 4.61 | 26 | 45 |
6 | 4.66 | 65.23 | 3.08 | 35 | 57 |
10 | 5.96 | 108.29 | 1.83 | 46 | 75 |
16 | 7.04 | 166.46 | 1.15 | 62 | 100 |
25 | 9.00 | 280.97 | 0.727 | 82 | 130 |
35 | 10.05 | 368.70 | 0.524 | 100 | 160 |
50 | 11.80 | 509.69 | 0.387 | 120 | 200 |
Certificates
Customers Visit
Some Project
Why Choose us?
For over 23 years, Zhengzhou Jinyuan Wire and Cable Co., Ltd., as a professional cable manufacturer has been producing customized cable for a wide range of applications based on high quality, excellent service and competitive market prices. This is an elite team with experienced personnel and strong technical support. Our achievements benefit by having access to the largest market for cheap labor and abundant resources in China and our determination to exceed our clients’ expectations.
PRODUCTS & STANDARDS
We can produce more than 2,000 types of cables and wires, such as
Bare Conductor: AAC, AAAC, ACSR, ACSR/AW, ACAR, ACSS, ACSS/AW, Aluminum Clad Steel Wire/Strand, Bare Copper Conductors, Copper Clad Steel Wire/Strand, Copper Clad Aluminum(CCA), Galvanized Steel Wire/Strand, etc.
Overhead Insulated Cable(abc cable): Covered Line Single Core Cable and Aerial Bundled Cable (ABC). ABC includes Duplex, Triplex, Quadruplex and more Cores Service Drop Cable.
PVC Insulated Building wire, H07V-U H07V-K, H05vv-f, Twin and flat cable and so on
PVC or XLPE Insulated Power Cable from 1kV to 36kV(armoured and unarmoured)
Control Cable
Welding Cable
Rubber Cable
Silicon Cable
We can produce cables according to the standards of IEC, ASTM, EN (BS, DIN, NF, etc.), AS/NZ and meet customers’ special requirements.
We also supply OEM services.
ACHIEVEMENTS & COMMITMENT
Our cable has been exported to South-East Asia, South Asia, Middle-East, Europe, North and South America, Africa, Australia & New Zealand and so on. Zhengzhou Jinyuan Wire and Cable Co., Ltd.’s commitment is to be recognized as a zero-defect world class manufacturer in cable industry through continuous improvement of our quality, processes, and products, and by our determination to exceed our clients’ expectations.
Welcome to contact us for more information about the nya, nya cable.
1. Is it a cable factory?
Definitely, we are a wire and cable Manufacturer with 23 years history, our factory located in Zhengzhou, Henan Province,China.
2. Any certificates:
Yes, the CE and ISO 9001:2008 are available.
For bare conductors there are Type Test Report available
3. What Standards you are using?
We can producing the wire and cables according to the popular Standards, such as IEC, ASTM, BS, DIN,SANS,CSA or as the clients requirements
4. OEM services?
Yes, We supply OEM services.
5. Delivery time
It depends on the cable type and quantity you need, you can contact us for the details
6. Payment terms:
Usually we would prefer L/C, T/T, or negotiate with us.
7. Packing
Usually it is packing in coil for PVC builing wire, for the powe cable and bare conductors used to packing by Drums, or as clients requirements.
