High Quality nyaf, nyaf Cable, single core cable with Factory Price
Company Description
1. CE, ISO 9001 Certificaes
2. More than 23 years experiences
3. Professional Manufacturer with Factory located in Henan Province.
4. Quick response and fast delivery.
5. Serve everyone with heart and soul.
Application
Description
These cables are indicated for executing permanent installations in housing, premises and offices, electrical control panels, as well as domestic and industrial lighting. They are easy to install thanks to their superslide insulation and great flexibility.
Reference Standards
UNE-EN 50525-2-31, EN 50525-2-31 and IEC 60227-3 Description
Construction for nyaf and nyaf Cable
|
1. Conductor |
Flexible electrolytic copper conductor (Class V) according to BS EN 60228:2005 (previously BS6360) and EN 60228. |
|---|---|
|
2. Insulation |
PVC insulation, type TI-1, according to BS 7655 and HD 21.3S3:1995/A2:2008. |
|
Rated voltage |
450/750 V |
|
Test voltage |
2.500 V in A.C. |
|
Maximum temperature |
70 ºC |
|
Other characteristics |
Colours according to UNE-EN 50525-1 and EN 50525-1 Non-flame propagating according to UNE-EN 60332, EN 60332 and IEC 60332 PVC insulation with reduced hydrogen chloride (HCl) emission. |
|
european |
EN 60332-1 |
|
International norm |
IEC 60332-1 |
Technical data for nyaf ,nyaf Cable
|
Section (mm2) |
Resistance at 20 °C (Ohm/km) |
External Diameter (mm) |
Weight (kg/km) |
|---|---|---|---|
|
1x1,5 |
13,3 |
2,80 |
19 |
|
1x2,5 |
7,98 |
3,40 |
29 |
|
1x4 |
4,95 |
3,90 |
43 |
|
1x6 |
3,3 |
4,40 |
61 |
|
1x10 |
1,91 |
5,75 |
106 |
|
1x16 |
1,21 |
6,75 |
156 |
|
1x25 |
0,78 |
8,40 |
238 |
|
1x35 |
0,554 |
9,75 |
324 |
|
1x50 |
0,386 |
11,50 |
466 |
|
1x70 |
0,272 |
13,20 |
661 |
|
1x95 |
0,206 |
16,00 |
879 |
|
1x120 |
0,161 |
17,50 |
1.115 |
|
1x150 |
0,129 |
19,40 |
1.387 |
|
1x185 |
0,106 |
22,30 |
1.682 |
|
1x240 |
0,0801 |
25,00 |
2.174 |
|
1x300 |
0,0641 |
26,70 |
2.664 |
|
1x400 |
0,0486 |
31,20 |
3.387 |
nyaf picture 1
nyaf Cable picture 2
kabel nyaf

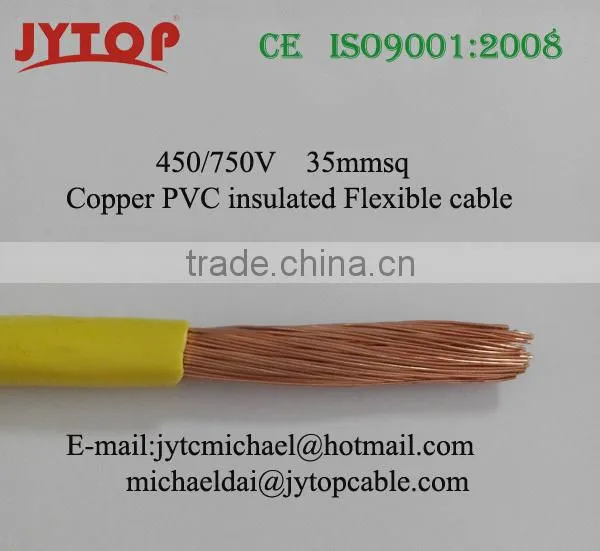

nyaf cable picture
H07V-K Picture
Why Choose us?
For over 23 years, Zhengzhou Jinyuan Wire and Cable Co., Ltd., as a professional cable manufacturer has been producing customized cable for a wide range of applications based on high quality, excellent service and competitive market prices. This is an elite team with experienced personnel and strong technical support. Our achievements benefit by having access to the largest market for cheap labor and abundant resources in China and our determination to exceed our clients’ expectations.
PRODUCTS & STANDARDS
We can produce more than 2,000 types of cables and wires, such as
Bare Conductor: AAC, AAAC, ACSR, ACSR/AW, ACAR, ACSS, ACSS/AW, Aluminum Clad Steel Wire/Strand, Bare Copper Conductors, Copper Clad Steel Wire/Strand, Copper Clad Aluminum(CCA), Galvanized Steel Wire/Strand, etc.
Overhead Insulated Cable(abc cable): Covered Line Single Core Cable and Aerial Bundled Cable (ABC). ABC includes Duplex, Triplex, Quadruplex and more Cores Service Drop Cable.
PVC Insulated Building wire, H07V-U H07V-K, H05vv-f, Twin and flat cable and so on
PVC or XLPE Insulated Power Cable from 1kV to 36kV(armoured and unarmoured)
Control Cable
Welding Cable
Rubber Cable
Silicon Cable
We can produce cables according to the standards of IEC, ASTM, EN (BS, DIN, NF, etc.), AS/NZ and meet customers’ special requirements.
We also supply OEM services.
ACHIEVEMENTS & COMMITMENT
Our cable has been exported to South-East Asia, South Asia, Middle-East, Europe, North and South America, Africa, Australia & New Zealand and so on. Zhengzhou Jinyuan Wire and Cable Co., Ltd.’s commitment is to be recognized as a zero-defect world class manufacturer in cable industry through continuous improvement of our quality, processes, and products, and by our determination to exceed our clients’ expectations.
Welcome to contact us for more information about the NYAF cable or Kabel nyaf
1. Is it a cable factory?
Definitely, we are a wire and cable Manufacturer with 23 years history, our factory located in Zhengzhou, Henan Province,China.
2. Any certificates:
Yes, the CE and ISO 9001:2008 are available.
For bare conductors there are Type Test Report available
3. What Standards you are using?
We can producing the wire and cables according to the popular Standards, such as IEC, ASTM, BS, DIN,SANS,CSA or as the clients requirements
4. OEM services?
Yes, We supply OEM services.
5. Delivery time
It depends on the cable type and quantity you need, you can contact us for the details
6. Payment terms:
Usually we would prefer L/C, T/T, or negotiate with us.
7. Packing
Usually it is packing in coil for PVC builing wire, for the powe cable and bare conductors used to packing by Drums, or as clients requirements.
