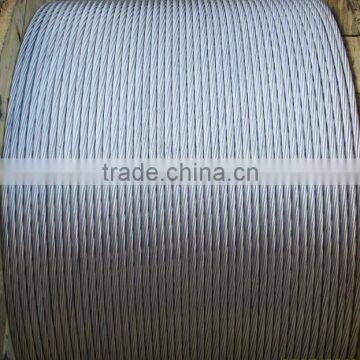

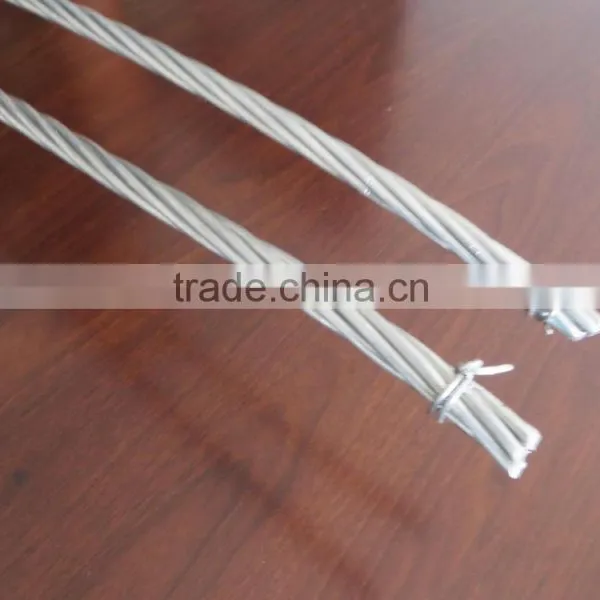

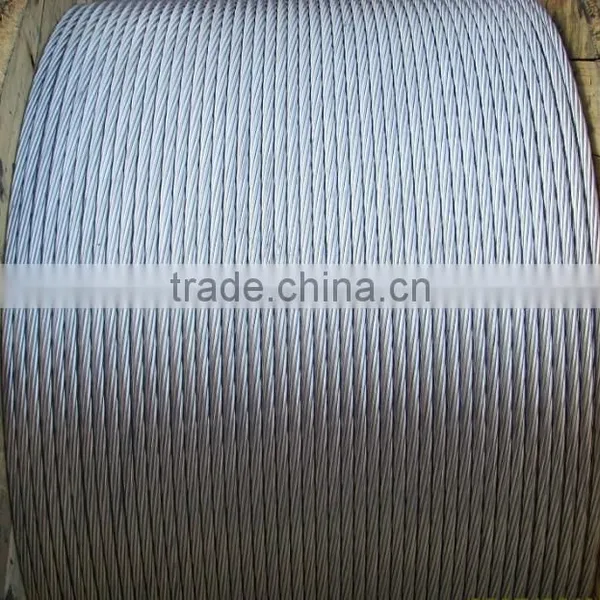

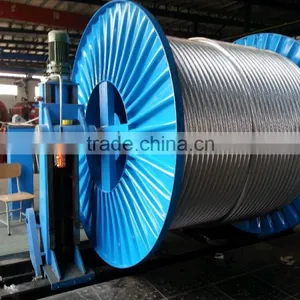

Help CenterAAC Conductor / All Aluminum Conductor/ AAC Cable/ AAC Wire
Related Products
-
ACS CCS CCA WIRE Aluminum Clad Steel/ Copper Clad Aluminum/ Copper Clad Steel WireUS$ 0.01 - 20MOQ: 1000 Meters -
AAAC Conductor / All Aluminum Alloy Conductor/ AAAC Cable/ AAAC WireUS$ 0.2 - 20MOQ: 1000 Meters
-
Overhead Aluminum ACSR ConductorUS$ 0.2 - 20MOQ: 1000 Meters
-
AAC AAAC ACSR ACAR Overhead Aluminum ConductorUS$ 0.1 - 30MOQ: 1000 Meters
-
Racoon ACSR Cable ACSR Aluminium ConductorUS$ 0.02 - 100MOQ: 1000 Meters
BARE CONDUCTOR AS PER ASTM STANDARDS
1.1 AAAC-6201
All-Aluminum Alloy Conductor.
STANDARDS
AAAC-6201 bare conductor meets or exceeds the following ASTM standards:
l B-398 Aluminum-Alloy 6201-T81 Wire for Electrical Purposes.
l B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
CONSTRUCTION
Aluminum alloy 6201 wires. concentrically stranded.
|
Code word |
Size (kcmil) |
Strand-ing |
Diameter (ins.) |
Weight per 1000 ft. (Lbs) |
Rated strength (Lbs) |
Resistance /1000 ft. |
Allowable ampacity+ (Amps) |
ACSR with equiv.diam. |
Approx EC cond. with equivalent resistance |
|||
|
Indivi- dual wire |
Complete conductor |
DC at 20℃ |
AC at 75℃ |
Size |
Stranding (AL/STL) |
|||||||
Akron |
30.58 |
7 |
0.0661 |
0.198 |
28.5 |
1110 |
.659 |
.785 |
107 |
6 |
6/1 |
6 |
Alton |
48.69 |
7 |
0.0834 |
0.250 |
45.4 |
1760 |
.414 |
.493 |
143 |
4 |
6/1 |
4 |
Ames |
77.47 |
7 |
0.1052 |
0.316 |
72.2 |
2800 |
.260 |
.310 |
191 |
2 |
6/1 |
2 |
Azusa |
123.3 |
7 |
0.1327 |
0.398 |
115.0 |
4460 |
.163 |
.195 |
256 |
1/0 |
6/1 |
1/0 |
Anaheim |
155.4 |
7 |
0.1490 |
0.447 |
144.9 |
5390 |
.130 |
.154 |
296 |
2/0 |
6/1 |
2/0 |
Amherst |
195.7 |
7 |
0.1672 |
0.502 |
182.5 |
6790 |
.103 |
.123 |
342 |
3/0 |
6/1 |
3/0 |
Alliance |
246.9 |
7 |
0.1878 |
0.563 |
230.2 |
8560 |
.0816 |
.0973 |
395 |
4/0 |
6/1 |
4/0 |
Butte |
312.8 |
19 |
0.1283 |
0.642 |
291.7 |
11000 |
.0644 |
.0769 |
460 |
266.8 |
26/7 |
266.8 |
|
||||||||||||
Main Products:
Factory
Package
Certificate
All Aluminum Conductor(AAC),
All Aluminum Alloy Conductor(AAAC),
Aluminum Conductor Steel Reinforced(ACSR),
Aluminum Conductor Aluminum-Clad Steel Reinforced (ACSR/AW),
Aluminum Conductor Aluminum Alloy Conductor Reinforced (ACAR),
Aluminum Conductor Steel Supported (ACSS),
Aluminum Conductor Aluminum-Clad Steel Reinforce (ACSS/AW),
Aluminum Clad Steel Wire/Strands,
Bare Copper Conductors,
Copper Clad Steel Wire/Strands (CCS) ,
Copper Clad Aluminum(CCA),
Galvanized Steel Wire/Strands, and so on.
Main Products:
**Bare Conductor: AAC, AAAC, ACSR, ACSR/AW, ACAR, ACSS, ACSS/AW,
Aluminum Clad Steel Wire/Strand (ACS),
Hard Drawn Bare Copper Conductor (HDBC),
Copper Clad Steel Wire/Strand (CCS),
Copper Clad Aluminum Wire/Strand (CCA),
Galvanized Steel Wire/Strand (GSW), etc.
**Overhead Insulated Cable: Covered Line Single Core Cable and Aerial Bundled
Cable (ABC). ABC includes Duplex, Triplex, Quadruplex
and multi-core Service Drop Cable… (600V-36kV)
**PVC or XLPE Insulated Armored Power Cable 1kV -36kV. (Low smoke, halogen
free, fire resistant, water resistant, high temperature cable…)
**PVC Insulated Wire up to with 300/500V, 450/750V, 600/1000V. (Building wire
includes nylon jacket and flat flexible multi-core wires)
**Instrument Cable: Control Cable, Signal Cable, Telephone Cable, etc.
**Concentric Cable
**Welding Cable
**Rubber Cable
**Cable& Conductor Accessories
**Cable Making Machine and Materials
We can produce cables according to the standards of GB, IEC, ASTM, EN (BS, DIN, NF, etc.), AS/NZ , SANS, etc. And also can design and manufacture the cable as per customers’ special requirements by OEM supply.
JINYUAN—YOUR POWERFUL AND RELIABLE SOLUTION FOR WIRES AND CABLES.
