AAC AAAC ACSR ACAR Overhead Aluminum Conductor

AAC AAAC ACSR ACAR Overhead Aluminum Conductor thumbnail-1

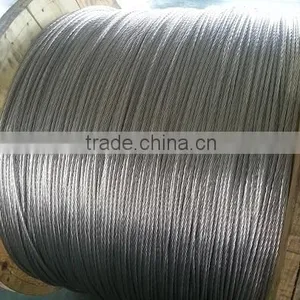

AAC AAAC ACSR ACAR Overhead Aluminum Conductor thumbnail-2
AAC AAAC ACSR ACAR Overhead Aluminum Conductor thumbnail-3
AAC AAAC ACSR ACAR Overhead Aluminum Conductor thumbnail-4
AAC AAAC ACSR ACAR Overhead Aluminum Conductor thumbnail-5
AAC AAAC ACSR ACAR Overhead Aluminum Conductor thumbnail-6
AAC AAAC ACSR ACAR Overhead Aluminum Conductor photo-1

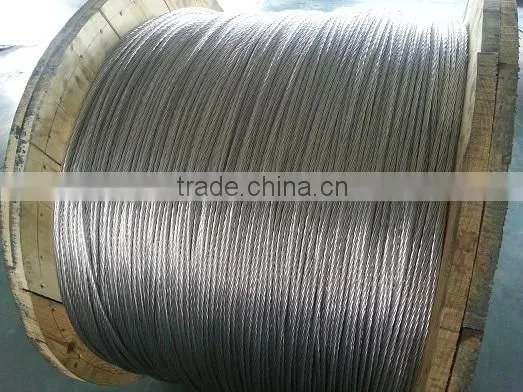

AAC AAAC ACSR ACAR Overhead Aluminum Conductor photo-2

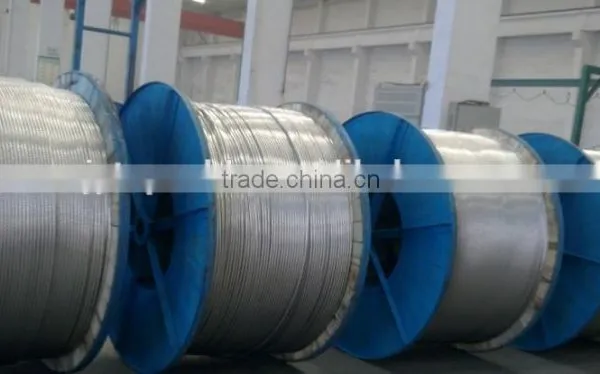

AAC AAAC ACSR ACAR Overhead Aluminum Conductor photo-3

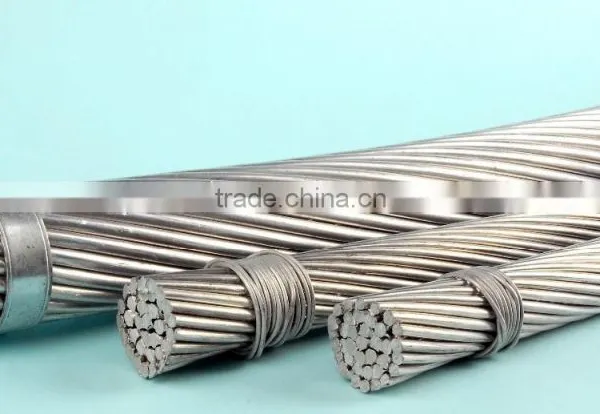

AAC AAAC ACSR ACAR Overhead Aluminum Conductor photo-4
AAC AAAC ACSR ACAR Overhead Aluminum Conductor photo-5
AAC AAAC ACSR ACAR Overhead Aluminum Conductor photo-6
US$ 0.1 - 30 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
JYTOP
Model Number:
aluminum conductor
Contact Supplier Request Quote Chat Now
Zhengzhou Jinyuan Wire And Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name JYTOP
Model Number aluminum conductor
Insulation Material Other, bare
Type High Voltage
Application Overhead
Conductor Material Aluminum
Jacket Other, bare

BARE CONDUCTOR AS PER ASTM STANDARDS







1.1         AAAC-6201

All-Aluminum Alloy Conductor.



STANDARDS

 AAAC-6201 bare conductor meets or exceeds the following ASTM standards:

l  B-398 Aluminum-Alloy 6201-T81 Wire for Electrical Purposes.

l  B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.

CONSTRUCTION

Aluminum alloy 6201 wires. concentrically stranded.



Code

word

Size

(kcmil)

Strand-ing

Diameter

(ins.)

Weight

per

1000 ft.

(Lbs)

Rated

strength

(Lbs)

Resistance

/1000 ft.

Allowable

ampacity+

 (Amps)

ACSR with

equiv.diam.

Approx

EC cond.

with

equivalent

resistance

Indivi-

dual

wire

Complete conductor

DC at

20℃

AC at

75℃

Size

Stranding

(AL/STL)

Akron

30.58

7

0.0661

0.198

28.5

1110

.659

.785

107

6

6/1

6

Alton

48.69

7

0.0834

0.250

45.4

1760

.414

.493

143

4

6/1

4

Ames

77.47

7

0.1052

0.316

72.2

2800

.260

.310

191

2

6/1

2

Azusa

123.3

7

0.1327

0.398

115.0

4460

.163

.195

256

1/0

6/1

1/0

Anaheim

155.4

7

0.1490

0.447

144.9

5390

.130

.154

296

2/0

6/1

2/0

Amherst

195.7

7

0.1672

0.502

182.5

6790

.103

.123

342

3/0

6/1

3/0

Alliance

246.9

7

0.1878

0.563

230.2

8560

.0816

.0973

395

4/0

6/1

4/0

Butte

312.8

19

0.1283

0.642

291.7

11000

.0644

.0769

460

266.8

26/7

266.8











1.2         AAC

All-Aluminum Conductor.



STANDARDS

 AAC bare conductor meets or exceeds the following ASTM standards:

l   B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.

l   B-231 Aluminum Conductors, Concentric-Lay-Stranded.



CONSTRUCTION

Aluminum 1350-H19 wires, concentrically stranded.



Code

word

Size

(AWG

or kcmil)

Stranding

Diameter(ins.)

Weight

per

1000ft.

(Lbs)

Rated

strength

(Lbs)

Resistance

 /1000 ft.

Allowable

ampacity+

(Amps)

No.of

wires

Class

Individual

wire

Complete

cable

DC at

20℃

AC at

75℃

Peachbell

6

7

A

.0612

.184

25

563

.658

.805

103

Rose

4

7

A

.0772

.232

39

881

.414

.506

138

Iris

2

7

AA.A

.0974

.292

62

1350

.260

.318

185

Pansy

1

7

AA

.1093

.328

78

1640

.207

.252

214

Poppy

1/0

7

AA.A

.1228

.368

99

1990

.164

.200

247

Aster

2/0

7

AA.A

.1379

.414

125

2510

.130

.159

286

Phlox

3/0

7

AA.A

.1548

.464

157

3040

.103

.126

331

Oxlip

4/0

7

AA.A

.1739

.522

198

3830

.0817

.0999

383

Sneezewort

250

7

AA

.189

.567

234

4520

.0691

.0846

425








1.3         ACAR

Aluminum Conductor. Aluminum Alloy Conductor Reinforced.



STANDARDS

 ACAR bare conductor meets or exceeds the following ASTM standards:

l  B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.

l  B-398 Aluminum-Alloy 6201-T81 for Electrical Purposes.

l  B-524 Concentric-Lay-Stranded Aluminum Conductors, Aluminum Alloy Reinforced ACAR, 1350/6201.



CONSTRUCTION

Aluminum alloy 1350-H19 wires, concentrically stranded about an aluminum alloy 6201 core. Although the alloy strands generally comprise the core of the cable, in some constructions they are distributed in layers throughout the aluminum alloy 1350-H19 strands.

Size

(kcmil)

Stranding

(EC/6201)

Diameter(ins)

Weight

per

1000 ft.

(Lbs.)

Rated

strength

(Lbs.)

Resistance

/1000 ft.

Allowable

ampacity+

(Amps)

Individual wire

Complete

cable

Dc at

20℃

AC at

75℃

6201

1350

355.0

12/7

0.1367

0.1367

0.683

332.1

8500

.0514

.0624

519

465.9

12/7

0.1566

0.1566

0.783

435.8

11000

.0392

.0477

616

503.6

12/7

0.1628

0.1628

0.814

471.1

11900

.0362

.0441

646

653.1

12/7

0.1854

0.1854

0.927

611.0

15400

.0279

.0342

760

739.8

30/7

0.1414

0.1414

0.990

692.7

15300

.0240

.0296

831

739.8

18/19

0.1414

0.1414

0.990

691.6

18800

.0252

.0308

814

853.7

30/7

0.1519

0.1519

1.063

799.3

17500

.0208

.0257

907

853.7

18/19

0.1519

0.1519

1.063

798.0

21500

.0218

.0268

890













1.4         ACSR

Aluminum Conductor. Steel Reinforced.



STANDARDS

 ACSR bare conductor meets or exceeds the following ASTM standards:

l  B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.

l  B-231 Aluminum Conductors, Concentric-Lay-Stranded.

l  B-232 Aluminum Conductors, Concentric-Lay-Stranded, coated steel reinforced(ACSR)

l  B-341 Aluminum-Coated Steel, Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)

l  B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced(ACSR)

l  B-802 Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced(ACSR)



CONSTRUCTION

Aluminum 1350-H19 wires, concentrically stranded around steel core. Core wire for ACSR is available with class A, B, or C galvanizing; “aluminized” aluminum coated(AZ); or aluminum – clad - (AW). Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable.

Code

word

Size

(AWG or

kcmil)

Strand-

ing

(Al/Stl)

Diameter(ins.)

Weight per 1000 ft.

(Lbs)

Content (%)

Rated

strength

(Lbs)

Resistance

  /1000 ft.

Allowable

ampacity+

(Amps)

Individual wire

Steel

core

Complete

cable

Al

St

Total

Al

St

DC at

20℃

AC at

75℃

Al

Stl

Turkey

6

6/1

.0661

.0661

.0661

.198

24

12

36

67.88

32.12

1190

.641

.806

105

Swan

4

6/1

.0834

.0834

.0834

.25

39

18

57

67.87

32.12

1860

.403

.515

140

Swanate

4

7/1

.0772

.103

.103

.257

39

28

67

58.1

41.9

2360

.399

.519

140

Sparrow

2

6/1

.1052

.1052

.1052

.316

62

29

91

67.9

32.1

2850

.254

.332

184

Sparate

2

7/1

.0974

.1298

.1298

.325

62

45

107

58.12

41.88

3460

.251

.338

184

Robin

1

6/1

.1181

.1181

.1181

.354

78

37

115

67.88

32.12

3550

.201

.268

212

Raven

1/0

6/1

.1327

.1327

.1327

.398

99

47

145

67.89

32.11

4380

.159

.217

242

Quail

2/0

6/1

.1489

.1489

.1489

.447

124

59

183

67.88

32.12

5310

.126

.176

276




Main Products:

AAC AAAC ACSR ACAR overhead aluminum conductor



Factory

AAC AAAC ACSR ACAR overhead aluminum conductor



Package

AAC AAAC ACSR ACAR overhead aluminum conductor



Certificate

AAC AAAC ACSR ACAR overhead aluminum conductor



You may also interested in:
Bare conductors


All Aluminum Conductor(AAC),

All Aluminum Alloy Conductor(AAAC),

Aluminum Conductor Steel Reinforced(ACSR),

Aluminum Conductor Aluminum-Clad Steel Reinforced (ACSR/AW),

Aluminum Conductor  Aluminum Alloy Conductor Reinforced (ACAR),

Aluminum Conductor Steel Supported (ACSS),

Aluminum Conductor Aluminum-Clad Steel Reinforce (ACSS/AW),

Aluminum Clad Steel Wire/Strands,

Bare Copper Conductors,

Copper Clad Steel Wire/Strands (CCS) ,

Copper Clad Aluminum(CCA),

Galvanized Steel Wire/Strands, and so on.







Main Products:



**Bare Conductor: AAC, AAAC, ACSR, ACSR/AW, ACAR, ACSS, ACSS/AW,

Aluminum Clad Steel Wire/Strand (ACS),

Hard Drawn Bare Copper Conductor (HDBC),

Copper Clad Steel Wire/Strand (CCS),

Copper Clad Aluminum Wire/Strand (CCA),

Galvanized Steel Wire/Strand (GSW), etc.

**Overhead Insulated Cable: Covered Line Single Core Cable and Aerial Bundled

Cable (ABC). ABC includes Duplex, Triplex, Quadruplex

and multi-core Service Drop Cable… (600V-36kV)

**PVC or XLPE Insulated Armored Power Cable 1kV -36kV. (Low smoke, halogen

free, fire resistant, water resistant, high temperature cable…)

**PVC Insulated Wire up to with 300/500V, 450/750V, 600/1000V. (Building wire

includes nylon jacket and flat flexible multi-core wires)

**Instrument Cable: Control Cable, Signal Cable, Telephone Cable, etc.

**Concentric Cable

**Welding Cable

**Rubber Cable

**Cable& Conductor Accessories

**Cable Making Machine and Materials



We can produce cables according to the standards of GB, IEC, ASTM, EN (BS, DIN, NF, etc.), AS/NZ , SANS, etc. And also can design and manufacture the cable as per customers’ special requirements by OEM supply.



JINYUAN—YOUR POWERFUL AND RELIABLE SOLUTION FOR WIRES AND CABLES.
