Europen ce Certificate Double Layer Steel Plate Roll Forming Machine Manufacturers
- tianjin new port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
eu Country Trapezoidal Roof and Wall Steel Sheet Hydraulic Rolling Macine Equipment
-
Metal Roofing Profile Two Deck Roll Forming Machine
-
China Supplier Building Machine Color Steel Roofing Sheet Rolling Machine
-
Euro Market Double Decker Metal Roof Tile Rollforming Machine
-
CE Roof and Wall Steel Sheet Rollformer Double Layer Rollforming Machine
-
CE Type Aluminum Iron Sheet Metal Roof Roll Forming Machine China
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Other, machine manufacturer | |
| Production Capacity | 15-20/min | Place of Origin | Hebei, China | |
| Brand Name | HC | Model Number | HC12-19 machine manufacturer | |
| Power(W) | 4+4KW | Voltage | 380V | |
| Dimension(L*W*H) | 10300X1550X1910mm | Weight | 6.9T | |
| Certification | ISO/CE | Warranty | 1year | |
| After-sales Service Provided | Overseas service center available |
Product Description

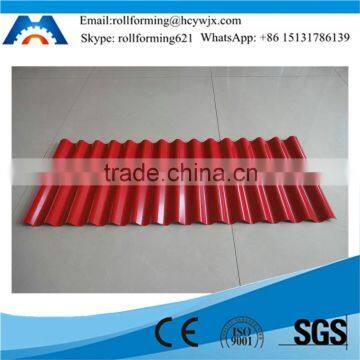

europen ce certificate double layer steel plate roll forming machine manufacturers
![]() | Huachen is FACTORY which manufacture machine and also do export. |
We have exported over 70 countries, and familiar with your require. | |
Suitable to GI, PPGI, aluminum and Zinc coil. | |
Free 1 year gurantee, and life long service. |
Intruduction:
Machine consisit of uncoiler and its base, coil sheet guilding equipment, roll forming system, cutting system, hydraulic station, controling system and supporter table.
Application:
This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site
1). The Main Parameter For machine manufactuerers
No. | main parameter of machine manufacturer | |
1 | Suitable to process | Color steel plate |
2 | Width of the plate | 1250mm |
3 | Roller | up 15 rows down 17 rows |
4 | Dimensions | 8600*1550*1910mm |
5 | Power | 4+4kw |
6 | Thickness of the plate | 0.3-0.6mm |
7 | Productivity | 10m/min |
8 | Material of the cutting blade | Cr12 |
9 | Diameter of the roller | Φ70mm |
10 | Weight | About 3.5T |
11 | Voltage | 380V 50Hz 3phases |
14 | Control system | PLC control |

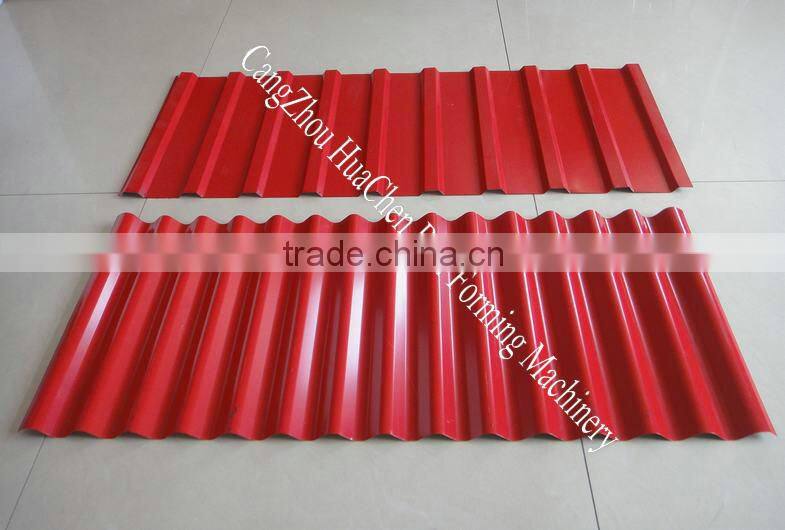

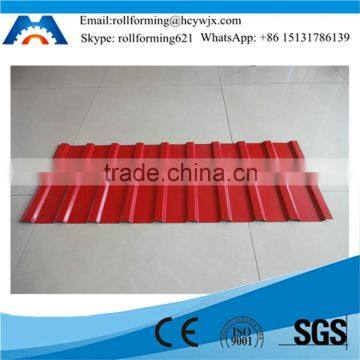

2). Check If machine manfuacturer Profile Suitable to You.

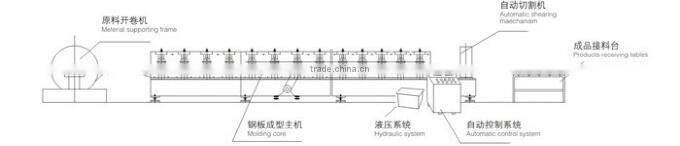

3). This is The Whole Line of machine manufacturer
Manual Uncoiler—Machine Manufacturers—Computer Control System— Hydraulic Control System—Form Cutter

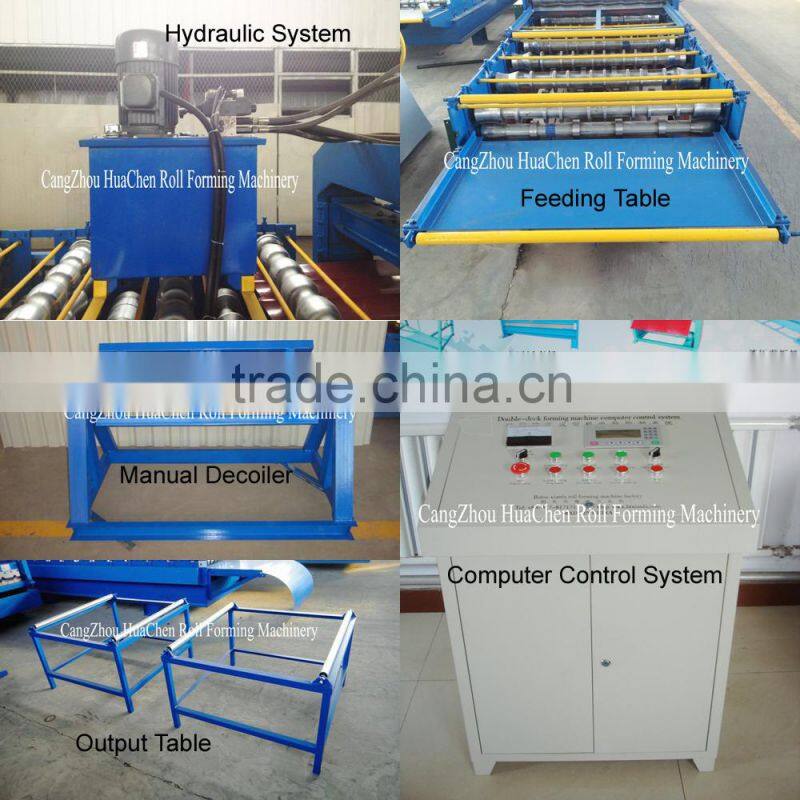

4). Components and Technical Specification
1. Manual Uncoiler
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T
Inner diameter: 500-508mm
2. Feeding Table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
3. Hydraulic System
Power:4kw,Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
4.Computer Control Cabinet
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
PLC:EURA
5.Cutting System:
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment

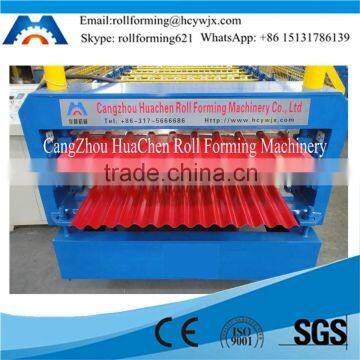

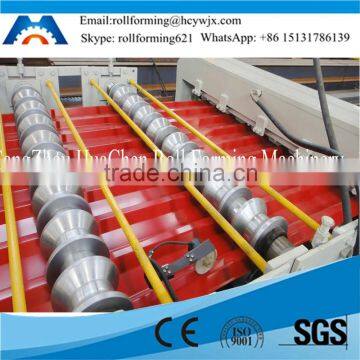

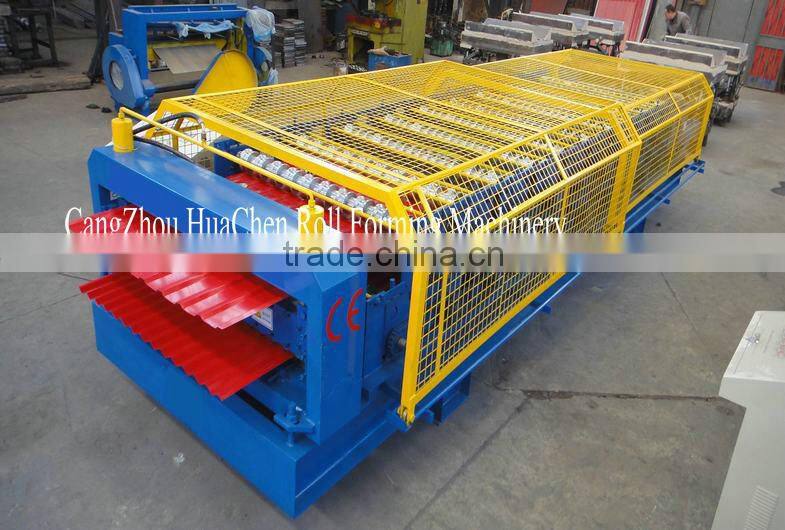

6.Main Roll Forming Machine:
7.Output Table
Detail Pics:

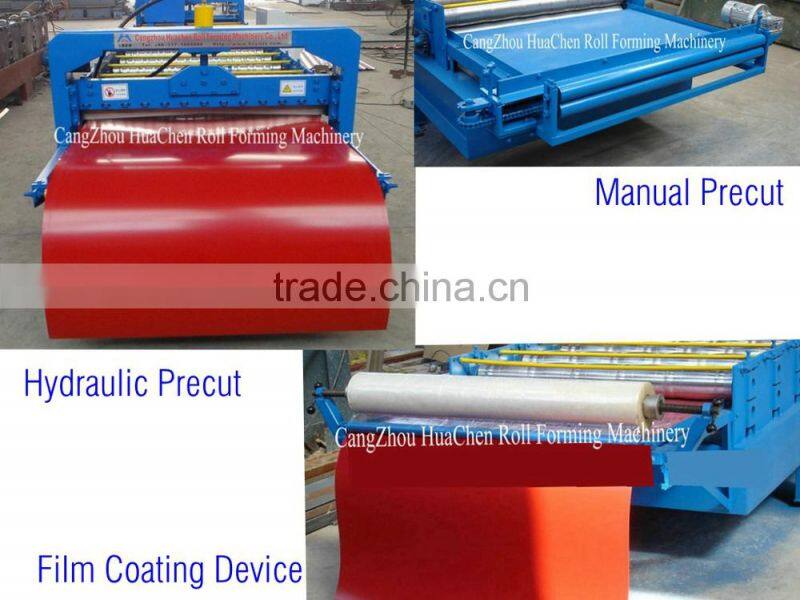

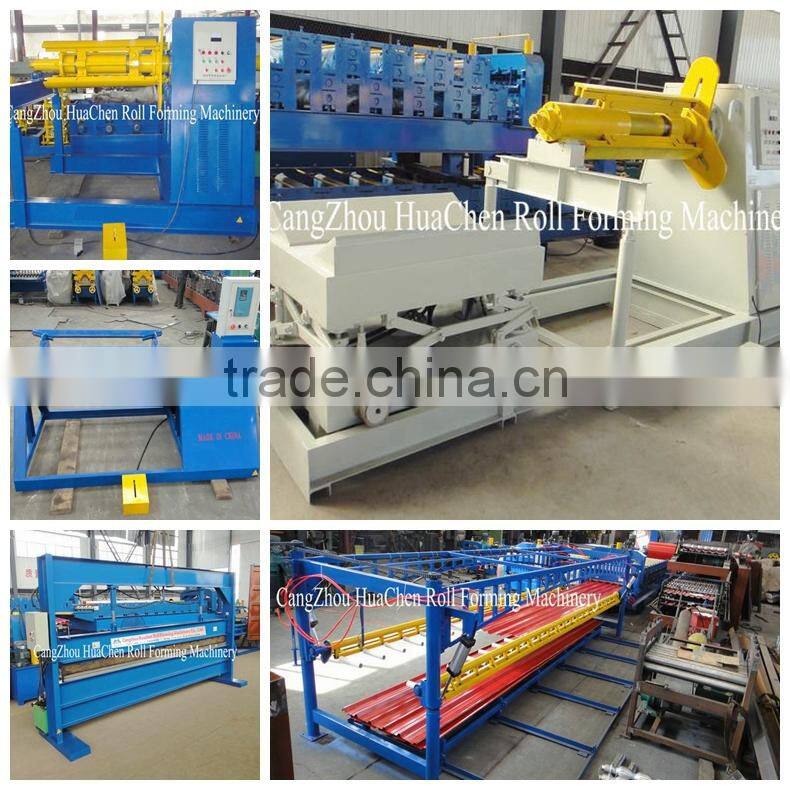

I Think You May Need These Useful Accessory.
Why Not Choose Some Hydraulic Device To Save Labours?
Roofing Sheet Making Machine Corrugated Sheet Making Machine Double Layer Roll Forming Machine
Glazed Tile Forming Machine Glazed Tile Roll Forming Machine Glazed Tile Forming Machine

Double Layer Roof Tile Machine Double Layer Step Tile Roof Machine Double Layer Roof Tile Machine
Hydraulic Uncoiler Hydraulic Stacker Roof Sheet Ridge Cap Machine
U Type Gutter Machine Round Downpouts Machine K Type Gutter Machine
C Purlin Machine Metal Stud And Track Machine Steel Door Frame Forming Machine
Floor Deck Machine Roof Sheet Hydraulic Arch Machine Steel Coil Slitting-Cutting-Recoiling Line
We have CE certification and ISO certification.
