Home > Products > C/Z Purlin Machine > Automatic Metal Stud and Track Roll Forming Machine With Non Stop Cutting

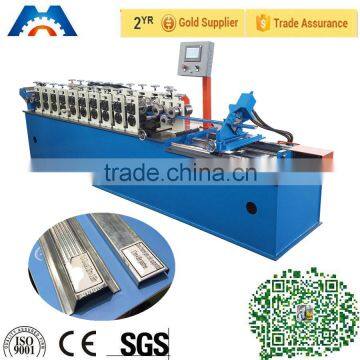

Automatic Metal Stud and Track Roll Forming Machine With Non Stop Cutting
- Tianjin new port
- T/T
You May Like
-
CE and ISO Furring Omega Steel Profile Roll Forming Machine
-
Metal Stud/Track/Furring Channel Roll Forming Machine
-
C U Omega Shape Rolling Forming Machine,Metal Light Keel Roll Forming Machine
-
Auto-change Purline CE Certificated c Channel Roll Forming Machine
-
Cassettes Angle Bar Roll Forming Machine, Angle Iron Rollformer,angle Steel Production Machine Quality Choice
-
Liming Galvanized Steel C Purlin Roll Forming Machine
Product Details
| Place of Origin | Hebei, China | Brand Name | HC | |
| Model Number | HC64 | After-sales Service Provided | Overseas service center available |
Product Description
After Automatic metal stud and track roll forming machine finished,we take pictures and keep the finished sheets to our showroom.We test our machine strictly to make sure every customer get it satisfied. Your profile drawing is welcomed and acceptable. We can also design the roll forming machine as your requirement.
Detailed Parameters of Automatic metal stud and track roll forming machine , want to operate it yourself ?
No. | Automatic metal stud and track roll forming machine | |
1 | Suitable material | Color steel sheet ,galvanized steel sheet, aluminium sheet |
2 | Width of material | 170mm or as you required |
6 | Thickness of material | 0.3-0.6mm or as your needs |
2 | Working speed | 45m/min |
3 | Main motor power | 5.5kw |
4 | Hydraulic station power | 3kw |
5 | Electrical control system | PLC control system |
7 | Shaft diameter | 40mm |
8 | Roller station | 10 rows |
10 | Dimension | 6100x1150x1510mm |
11 | Weight | About 1.6 T |
12 | Voltage | 380V 3phase 50HZ or as the customer's requirements |
13 | Material of roller | High grade 45# forged steel plated with hard chrome plating |
14 | Material of cutting | Cr12 mould steel with quenched treatment |
15 | Working time | Can be 24 hours |
16 | Workers | 1-2 only |
Please Note: All the parameters can be designed as your requirement.
Let me show you how to operate Automatic metal stud and track roll forming machine
Decoiling→Feeding & Guiding→Roll Forming →Cutting→Finished Products To Support Table
Not interested in this design ? Here are other profiles for your reference.
Worry about Packing and delivery ?
1.Main Automatic metal stud and track roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 20' container to shipping.
