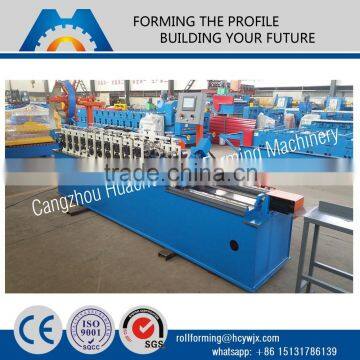

HC high speed c profile metal stud and track roll forming machine

FOB Price

USD $15,000 - $39,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port tianjin newport
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Tile Forming Machine
Tile Type	Steel	Use	Other, stud and track roll forming machine
Production Capacity	15-20/min	Place of Origin	Hebei, China
Brand Name	HC	Model Number	HC65 stud and track roll forming machine
Power(W)	7.5+3kw	Voltage	380V
Dimension(LWH)	6100X1150X1510mm	Weight	1.6T
Certification	ISO/CE	Warranty	1year
After-sales Service Provided	Overseas service center available

Product Description

HC high speed c profile metal stud and track roll forming machine

about us

	Huachen is FACTORY which manufacture machine and also do export.
	We have exported over 70 countries, and familiar with your require.
	Suitable to GI, PPGI, aluminum and Zinc coil.
	Free 1 year gurantee, and life long service.

Intruduction:

Machine consisit of uncoiler and its base, coil sheet guilding equipment, roll forming system, cutting system, hydraulic station, controling system and supporter table.

Application:

This machine use non stop system producing metal stud and track. The shape is customized. We have done more than 10 type of models with punching.

machine details

1). The Main Parameter For stud and track roll forming machine

No.	main parameter of Stud and track roll forming machine
1	Suitable to process	Color steel plate
2	Width of the plate	170mm
3	Roller	13 rows
4	Dimensions	36007501110mm
5	Power	4+4kw
6	Thickness of the plate	0.3-0.4mm
7	Productivity	max 45m/min
8	Material of the cutting blade	Cr12
9	Diameter of the roller	Φ60mm
10	Weight	About 1.9T
11	Voltage	380V 50Hz 3phases
14	Control system	PLC control

2). Check If stud and track roll forming machine Profile Suitable to You.

3). This is The Whole Line of stud and track roll forming machine

Manual Uncoiler—Stud And Track Roll Forming Machine—Computer Control System—Hydraulic Control System—Form Cutter

4). Components and Technical Specification

1. Manual Uncoiler
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T
Inner diameter: 500-508mm
2. Feeding Table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
3. Hydraulic System
Power:4kw,Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
4.Computer Control Cabinet
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
PLC:EURA
5.Cutting System:
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment

6.Main Roll Forming Machine:

Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

7.Output Table

Detail Pics:

more products

Roofing Sheet Making Machine Corrugated Sheet Making Machine Double Layer Roll Forming Machine

Glazed Tile Forming Machine Glazed Tile Roll Forming Machine Glazed Tile Forming Machine

Double Layer Roof Tile Machine Double Layer Step Tile Roof Machine Double Layer Roof Tile Machine

CE Double Layer Roof Machine IBR & Wave Forming Machine Double Roof Tile Forming Machine

Hydraulic Uncoiler Hydraulic Stacker Roof Sheet Ridge Cap Machine

Roof Tile Ridge Cap Machine Rolling Shutter Door Forming Machine Shutter Door Slats Forming Machine

U Type Gutter Machine Round Downpouts Machine K Type Gutter Machine

C Purlin Machine Metal Stud And Track Machine Steel Door Frame Forming Machine

Floor Deck Machine Roof Sheet Hydraulic Arch Machine Steel Coil Slitting-Cutting-Recoiling Line

load and certificate

We have CE certification and ISO certification.
