steel profile c shape/ c purlin forming machine for sale
| | Huachen is FACTORY which manufacture machine and also do export. |
We have exported over 70 countries, and familiar with your require. | |
Suitable to GI, PPGI, aluminum and Zinc coil. | |
Free 1 year gurantee, and life long service. |
Intruduction:
Machine consisit of uncoiler and its base, coil sheet guilding equipment, roll forming system, cutting system, hydraulic station, controling system and supporter table.
Application:
C purline formed by C purline forming machine,advantages of well compressive strength and flatness; automatioc measureing, cutting and punching; high-level of automation and conveniently installation.It can be used in the main body stress structure of the large and medium-size enterprises civil construction, like the plant, warehouse, locomotive shed, hangar, exhibition building, theatre, stadiums, roofing load-bearing load and wall surface support of the arbour.

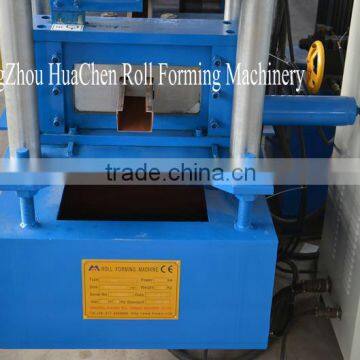

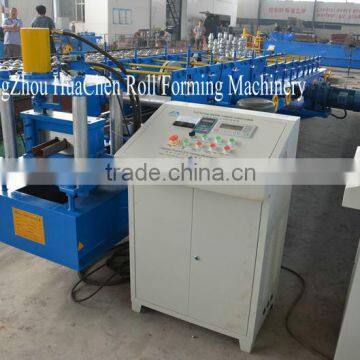

This is The Whole Line of c purlin forming machine Equipment.
Manual Uncoiler—C Purlin Forming Machine—Computer Control System—Hydraulic Control System—Form Cutter
The Main Parameter For C Purlin Roll Forming Machine
No. | main parameter of C purlin Forming Machine | |
1 | Suitable to process | Color steel plate |
2 | Width of the plate | 175/465mm |
3 | Rollers | 13 rows |
4 | Dimensions | 6.7*1.35*1.51m |
5 | Power | 4+4kw |
6 | Thickness of the plate | 1.5-3mm |
7 | Productivity | 8-10m/min |
8 | Diameter of the roller | Φ80mm |
9 | Weight | About 5.6T |
10 | Voltage | 380V 50Hz 3pha ses |
11 | Material of the cutting plate | Cr12 |
12 | Hydraulic | 40# |
13 | Processing precision | Within 1.00mm |
14 | Control system | PLC control |
Check If C Purlin Forming Machine Profile Suitable to You.
Roofing Sheet Making Machine Corrugated Sheet Making Machine Double Layer Roll Forming Machine
Glazed Tile Forming Machine Glazed Tile Roll Forming Machine Glazed Tile Forming Machine
Glazed Tile Roof Machine Glazed Tile Forming Machine Glazed Tile Forming Machinery
Double Layer Roof Tile Machine Double Layer Step Tile Roof Machine Double Layer Roof Tile Machine
CE Double Layer Roof Machine IBR & Wave Forming Machine Double Roof Tile Forming Machine
Hydraulic Uncoiler Hydraulic Stacker Roof Sheet Ridge Cap Machine
Roof Tile Ridge Cap Machine Rolling Shutter Door Forming Machine Shutter Door Slats Forming Machine
U Type Gutter Machine Round Downpouts Machine K Type Gutter Machine
C Purlin Machine Metal Stud And Track Machine Steel Door Frame Forming Machine
Floor Deck Machine Roof Sheet Hydraulic Arch Machine Steel Coil Slitting-Cutting-Recoiling Line
We have CE certification and ISO certification.
