Help Center2016 Hot Sales Light Gauge Steel Truss Framing Machine
Related Products
-
Automatic Metal Stud and Track Roll Forming Machine With Non Stop CuttingUS$ 12,000 - 17,000MOQ: 1 Set -
CE and ISO Furring Omega Steel Profile Roll Forming MachineUS$ 12,000 - 17,000MOQ: 1 Set
-
Metal Stud/Track/Furring Channel Roll Forming MachineUS$ 12,000 - 17,000MOQ: 1 Set
-
C U Omega Shape Rolling Forming Machine,Metal Light Keel Roll Forming MachineUS$ 12,000 - 17,000MOQ: 1 Set
-
Auto-change Purline CE Certificated c Channel Roll Forming MachineUS$ 18,000 - 26,000MOQ: 1 Set

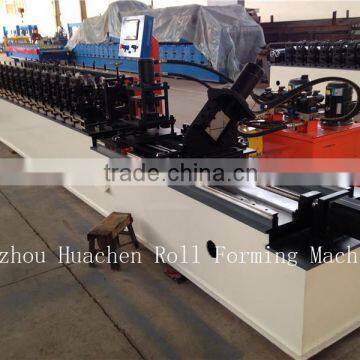

After Light Gauge Steel Truss Framing Machine finished,we take pictures and keep the finished sheets to our showroom.We test our machine strictly to make sure every customer get it satisfied. Your profile drawing is welcomed and acceptable. We can also design the roll forming machine as your requirement.
Detailed Parameters of Light Gauge Steel Truss Framing Machine , want to operate it yourself ?
No. | Light Gauge Steel Truss Framing Machine | |
1 | Suitable material | Color steel sheet ,galvanized steel sheet, aluminium sheet |
2 | Width of material | 170mm or as you required |
6 | Thickness of material | 0.3-0.6mm or as your needs |
2 | Working speed | 45m/min |
3 | Main motor power | 5.5kw |
4 | Hydraulic station power | 3kw |
5 | Electrical control system | PLC control system |
7 | Shaft diameter | 40mm |
8 | Roller station | 10 rows |
10 | Dimension | 6100x1150x1510mm |
11 | Weight | About 1.6 T |
12 | Voltage | 380V 3phase 50HZ or as the customer's requirements |
13 | Material of roller | High grade 45# forged steel plated with hard chrome plating |
14 | Material of cutting | Cr12 mould steel with quenched treatment |
15 | Working time | Can be 24 hours |
16 | Workers | 1-2 only |
Please Note: All the parameters can be designed as your requirement.
Let me show you how to operate Light Gauge Steel Truss Framing Machine
Decoiling→Feeding & Guiding→Roll Forming →Cutting→Finished Products To Support Table
Not interested in this design ? Here are other profiles for your reference.
Worry about Packing and delivery ?
1.Main Light Gauge Steel Truss Framing Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 20' container to shipping.
