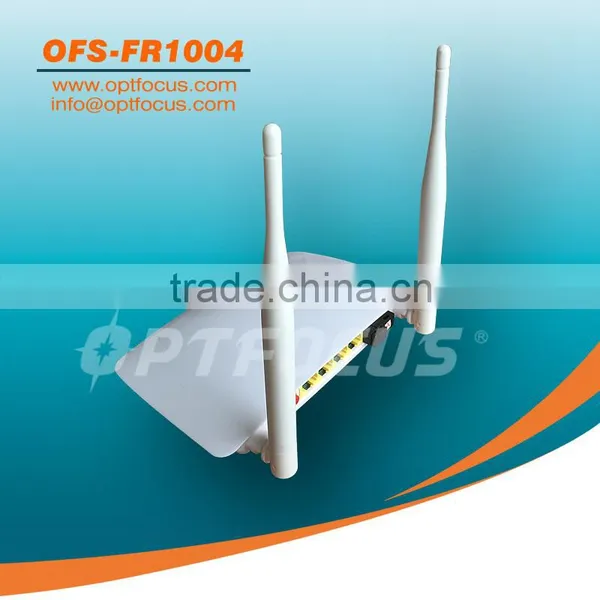

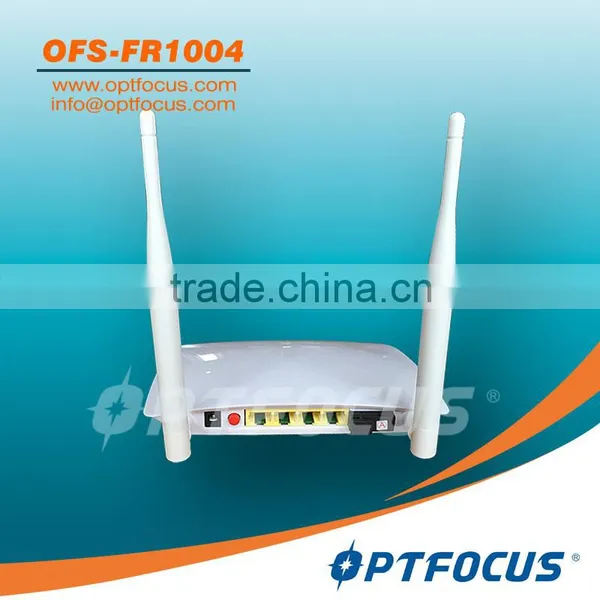

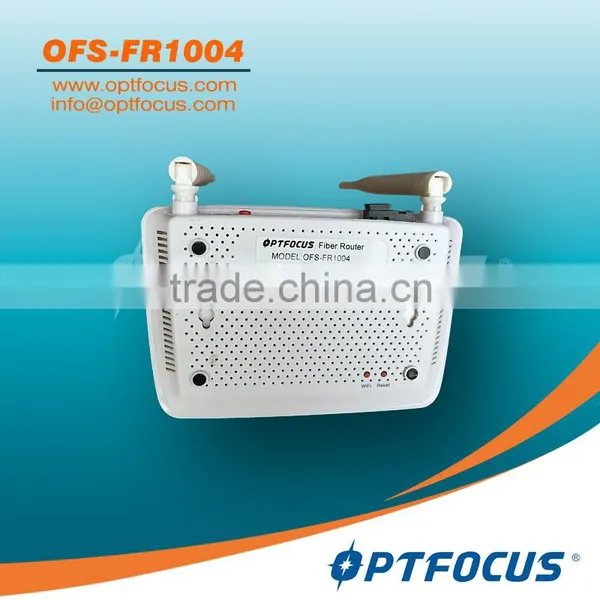

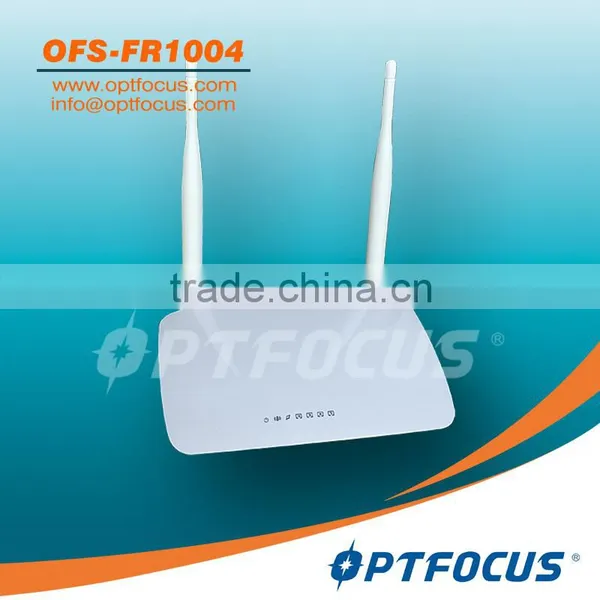

Wireless Optical Router
- 10000 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
-
4 cores mini FTTH terminal box/fiber patch panel/mini ODF
-
12 color optical patch cables
-
PON Optical Power Meter
-
Fix type optical patch papel
-
ZTE GPON terminal ZXA10 F601 FTTH or FTTO GPON ONU With one ethernet ports
-
ZTE ZXA10 F620 GPON optical network ONU With 4 ethernet ports and 2 voice ports apply to FTTH mode
Product Details
| Brand Name | OPTFOCUS | Model Number | OFS-FR1004 |
Product Description
Feature:
- 1. Optical Ethernet interface supports up to 100M;
WAN :Single –mode ,single fiber or dual Fiber(optional),SC connector OR SFP connector;
Nominal wavelength:TX1310nm/RX1550nm,TX1550nm/RX1310nm or dual Fiber 1310nm;
- 2. 4 Lan is 10/100M Auto MDI/MDIX RJ45 port
support VLAN 802.Q tagging
Support Port mapping/Interface Grouping for running IGMP- IPTV
Support IPV4,IPV6.
Support TR-069 to manage and upgrade router with NMS/ACS server
- 3. Wifi support IEEE 802.11b/g/n compliant with 300Mbps high-speed data rate,
- Wireless modes: Gateway,Bridge,AP
- Wireless users access control
- Wireless security - 64/128bit WEP, WPA/WPA2, 802.1x and WPS
- Quick and easy setup with Web-based management utility
- Supports UPnP, DDNS, static routing, VPN Pass-through
- Supports virtual server, special application and DMZ host ideal for creating a website within your LAN
- Only have 1 SSID for wireless connection (required 4 SSIDs).
Specifications:
Standard | IEEE 802.11n,IEEE 802.11g,IEEE 802.11b |
Frequency Band | 2.4GHz-2.4835GHz |
Radio type | IEEE 802.11b: DSSS(CCK/DQPSK/DBPSK) IEEE 802.11g: OFDM(64-QAM, 16-QAM, QPSK, BPSK) IEEE 802.11n: OFDM(BPSK/QPSK/16-QAM/ 64-QAM) |
Data Rate | 11n: 300/270/243/216/162/108/81/54/27Mbps 150/135/121.5/108/81/54/40.5/27/13.5Mbps 130/117/104/78/52/39/26/13Mbps 65/58.5/52/39/26/19.5/13/6.5Mbps 11g: 54/48/36/24/18/12/9/6M(adaptive) 11b: 11/5.5/2/1M(adaptive) |
Access Protocol | CSMA/CA,CSMA/CD,TCP/IP,ICMP,NAT,PPPoE, DHCP , Wired static , Wifi Client , UDP, DDNS, |
Wireless Mode | Gateway, Bridge, ap |
Security
| 64/128bit WEP WPA(AES,TKIP with IEEE 802.1x) WPA2(AES,TKIPwith IEEE 802.1x) WPS |
RF Output Power(Typical) | 802.11n: 15±1dBm for OFDM mode 802.11g: 16±1dBm for OFDM mode 802.11b: 18±1dBm fro CCK mode |
Receive Sensitivity | 11n : -65±2dBm@10% PER 11g : -70±2dBm@10% PER 11b : -86±2dBm@8% PER |
Antenna | 2pcs 5dBi antenna |
Dimension (mm) | 170*120*35mm |
Weight |
|
