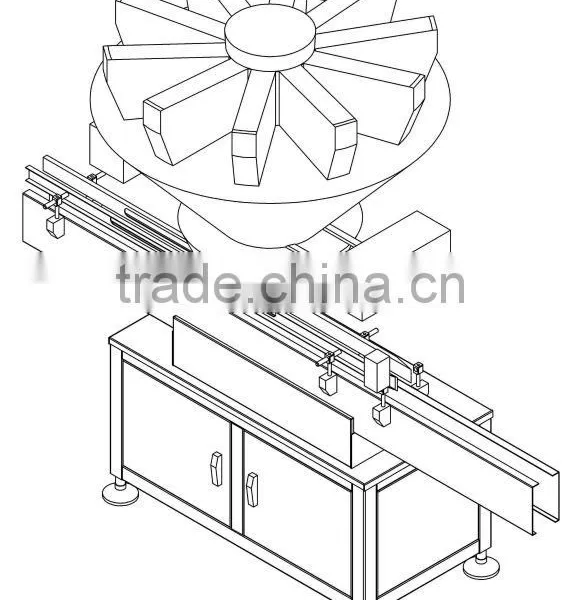

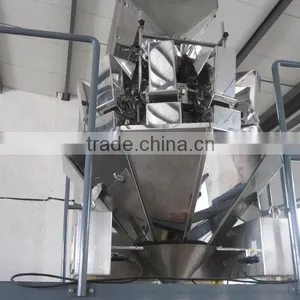

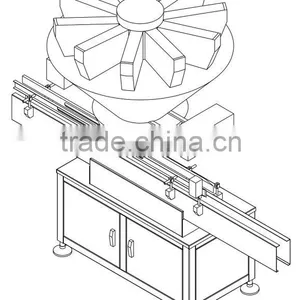

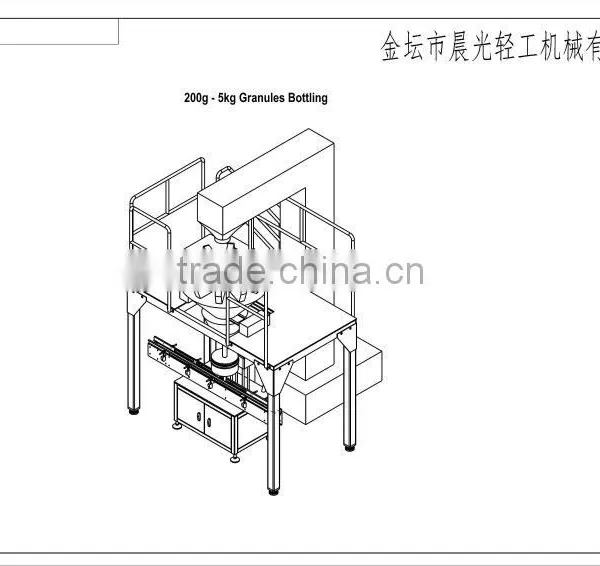

Help Center20g - 5kg Granules & Particle Bottle Filling Machine (E.g Fill Desiccant Gel)
Related Products
-
Snack/ Shrimp Strip/ Pistachio Nuts/ Peanuts Pouch Packing Machine - GD8-250CUS$ 35,000 - 58,000MOQ: 1 Set -
Honey/ Shampoo/ Cream/ Medical/ Powder Sachet Packaging Machine DXD SeriesUS$ 13,500 - 55,000MOQ: 1 Set
-
0.5-5kg Granules and Powder Packing Weighing Machine CF-2W-5LUS$ 15,000 - 20,000MOQ: 1 Set
-
GD6-200C Rotary Pouch Filling MachineUS$ 1 - 45,000MOQ: 1 Set
-
DXD-210 Automatic Horizontal Pouch Preformed Packing MachineUS$ 1 - 50,000MOQ: 1 Set
Main characteristic:
The filling process is under control of PLC. All operations complete on the touching screen. It has excellent specialties - stable, reliable operation, high effieiency, excellent regulation performance and high precision filling. It is easy to operate, no need to change any components while changing the bottles and filling volume. It is an ideal packaging equipment for bottling granules in Chemical, Food, Medicine, and Daily chemical industries etc.
Performance advantages:
1. Control system - Schneider PLC control system, random trimming filling measurements, simple operation on touch screen, easy and reliable.
2. Real-time alarm - automatic stopping and alarming when the system appears serious breakdown.
3. Electrical elements - adopting international famous brand to ensure the remarkable quality and stability.
4. Counting detection - real-time counting bottles output, reflecting the output directly.
5. Filling detection - No bottle no filling, it will not conduct filling if the containers are not on position.
Technical parameters:
1. Filling nozzle: 1 head ( can be selected more according to production request)
2. Weigher hopper: 10 or 14 are optional
3. Applicable container shape: Round, Square & Flat
4. Filling volume: 20g - 5kg
5. Filling Accurancy: ≤ ± 1%
6. Production speed: ≤ 1200 bph (based on 1kg granules)
7. Voltage: 220 V/ 380 V three-phase four wire (depends on buyer request)
Suitable Products:
- Outside: Standard Export Wooden Case Pack
- Inner: Stretch Film
- Technicial guidance & pre-maintain;
- Quality guarantee for 1 year;
- Able to send engineer to install. (Hotel & delivery fee paid by customer);
Contact:
Jennifer
JIN TAN CHENGUANG LIGHT-INDUSTRY MACHINERY CO., LTD
ADD: No. 198, 2nd Road, South Circle Jintan, Jiangsu Province, China
QQ: 1241498672
Tel: (86) 519 - 6808 8770
Company Profile
Jintan Chenguang Light-Industry Machinery was founded in 1996, which is a high-tech company focusing on R&D and producing packaging machinery.
The company is located in Jintan, Jiangsu Province, Yangtze River Delta. To the east lies Shanghai; to the west Nanjing. It takes about an hour to reach Changzhou railway station or Nanjing airport. Our company covers an area of 18,000 m² and building area 8,456 m² with registration capital of RMB6,000,000. The main products are brand "JING JIU" series filling machine, capping machine, labeling machine, pouch packaging line and related auxiliary equipments such as the bottle unscramble, bottle feeder, cap sender, cap sorter, packing table, etc. Many techniques have obtained Chinese Patents. Company's products have been purchased by more than 20 provinces, 600 clients home and abroad. Due to convincing quality and excellent service, our company enjoys a high requtation in this field.
Because our company has been sticking to the Technological innovation and relying on many colleges and institutes, we possess a series of independent intellectual property rights products and techniques. So far, the company has developed eight patent new products, won eighteen National Patent, and has two High-tech products in Jingsu Province. As early as 2003 the company was rated as "high-tech enterprises", in 2013, we earned the award of "China 10 outstanding manufacturer of in-household care products industry". Apart from the innovation, we also lay emphasis on inner management as well as brand construction. At present, our company has passed ISO9001 & ISO14000. Since 2002, JINGJIU has been awarded famous-brand products in Jiangsu Province for eleven years in a row. In 2013, JINGJIU was awarded Well-know trademarks of Changzhou City.
Welcome to visit Chenguang to create our prosperous future all together.
