DXD-180 Automatic Bag Powder Packaging Machinery

Specifications

1.auto material level controller
2.one/two filling head is selected
3.auto detection(full/less)

Technical performance

The packaging machinery is under control of PLC.Can realize the packaging of powder,granules,water aqua and viscous liquid.It also can realize the three-side sealing and four-side sealing easily.This packaging machinery is the  most ideal bag-packaging machine up to now.



Performance advantages

1. Control system---This packaging machinery adopts Mitsubishi PLC control system, filling dose random fine-tuning

2. Control panel---This packaging machinery is equipped with colour touching-screen,easy-operated , stable and reliable

3.Temperature control---This packaging machinery uses digital show,directly visable.

4.Work–bin design---This packaging machinery adopts automatic detection,(full,automatic stop feeding;less,automatic feeding). (powder feeder is assorted and extra expense products)

5 Filling exchanging---Can realize various material filling including powder,granules ,water aqua ,and viscous liquid by exchanging filling head.

6.Electrical elements-----Adopting international famous brand to ensure the remarkable quality, stability and high precision

7.Machinery elements---The parts contacted with the material adopt 316 high-quality stainless steel,the other parts use the 304 high-class stainless steel.

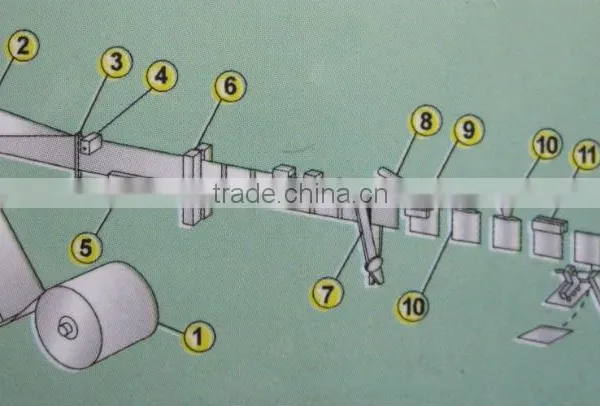

include the components as follows:

Film shapping shelf

Film sending shelf

Standard horizontal strip heat- sealing device

Standard vertical strip heat -sealing device

Double -bags device

Standard cutting device

Easy tear cutting

Vacuum openning device

Bottom sealing

Automatic material level controller system

Photoelectric tracking detection device

LCD screen operation system

Micro-computer controll system

Frequency conversion control system

Packing product eduction device

Date hard-pressuring system

duct requirements---Molding film bag. (film for customers'own)

9. Maintenance condition---This packaging machinery fully accords to the GMP requirements, easy to disassemble and clean.

10..Real-time alarm---This packaging machinery can realize automatic alarming when the fault happens,automatic stopping and alarming when the system appears serious breakdown.

11.Appearance design---With the production of organic glass olive and maintenance, convenient operation,  beauty and  generous

12.Double bags work--- This packaging machinery Can realize double bags packaging according to need.



Technical parameters

1.Packing bag width:60mm – 180mm

2.Packing bag height:100mm – 220mm

3.Maximum packing measure:5g - 350g(powder)(the quantity of packaging measurement is related with the material density etc)

4.Voltage: 220V/380V

5.Fillinging error:≤±1%

6.Filling speed: 40-80bags/min

7.Roll film diameter:≤450mm

8.Air-consuming amount:0.8 m³/min

9.Machine weight:1050 kg

10.Overall Dimension:3260mm/ 1020mm/ 2390mm
