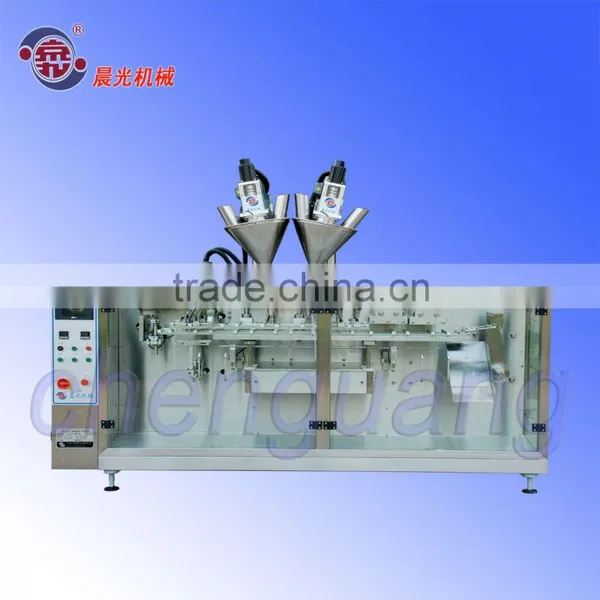

Help CenterDXD-210 Shaped-bag Horizontal Packaging Machine
Related Products
-
DXD-180 Automatic Horizontal Bag Packaging MachineUS$ 38,000 - 45,000MOQ: 1 Set -
20g - 5kg Granules & Particle Bottle Filling Machine (E.g Fill Desiccant Gel)US$ 15,000 - 30,000MOQ: 1 Set
-
Snack/ Shrimp Strip/ Pistachio Nuts/ Peanuts Pouch Packing Machine - GD8-250CUS$ 35,000 - 58,000MOQ: 1 Set
-
Honey/ Shampoo/ Cream/ Medical/ Powder Sachet Packaging Machine DXD SeriesUS$ 13,500 - 55,000MOQ: 1 Set
-
0.5-5kg Granules and Powder Packing Weighing Machine CF-2W-5LUS$ 15,000 - 20,000MOQ: 1 Set
Specifications
1.Double heads filling2.Speciallized for shapped-bag
3.Automatic detection(full/less)
4.Double-bags device
5.Filling dose
Technical performance:
The packaging machine is under control of PLC.Can realize the filling of powder,granules,liquid and mini-viscous liquip.It is suite for shapped-bag packaging .It also can realize the three-side sealing and four- side sealing easily.It is the most ideal bag-packaging machine up to now.
Performance advantage:
1. Control system----Mitsubishi PLC control system, Filling dose random fine-tuning
2. Control panel----Colour touching-screen,easy-operated , stable and reliable
3. Temperature control: using digital temperature control is intuitive form.
4.Work–bin design----Automatic detection.( Full, automatic stop feeding ;Less, , automatic feeding).( The powder feeding machine is the matching product, the expense is extra)
5.Filling exchanging----Can exchange voious kinds of filling heads,powder,granules ,liquid ,and various
6.Electrical elements---Adopting international famous brand to -ensure the remarkable quality, stability and high precision
7.Machine elements----The parts contacted with the material use the 316 high-quality stainless steel and non-poisonous, anti-corrosive PTEF hose.Other machine parts use the 304 high-class stainless steel.
Including the following components:
Bag-sending shelf
Standard horizontal strip heat- sealing device
Double-bags device
Easy tear cutting
Vacuum openning device
Automatic material level controller
Photoelectric tracking detection device
LCD screen operation system
Micro-computer controll system
Frequency conversion control system
Packing product eduction device
Date hard- pressing system
duct requirements --- film bag molding. (shapped-bag for customers own)
9. Maintenance condition---Fully accords to the GMP requirements, easy to disassemble and clean.
10.Real-time alarm----Automatic alarming when the fault happens,automatic stopping and alarming when the system
appears serious breakdown
11. Appearance design,----Adoptting high-quality organic glass and maintenance door, convenient operation, beauty and generous
Main technical paremeter:
1.Packing bag width:85mm – 210mm
2.Packing bag height:140mm – 280mm
3.Maximum packing measure:5g - 350g(powder according to the proportion of powder materials have differen
weight,)
4.Power: 3Kw
Voltage: 220V/380V
5.Filling error: ≤±1%
6.Filling speed: 20-60bags/hour
7.Air-consuming amount:0.6 m3/min
8.Overall Dimension:3000mm/ 1100mm/ 2050mm
9.Machine weight: 900 kg
