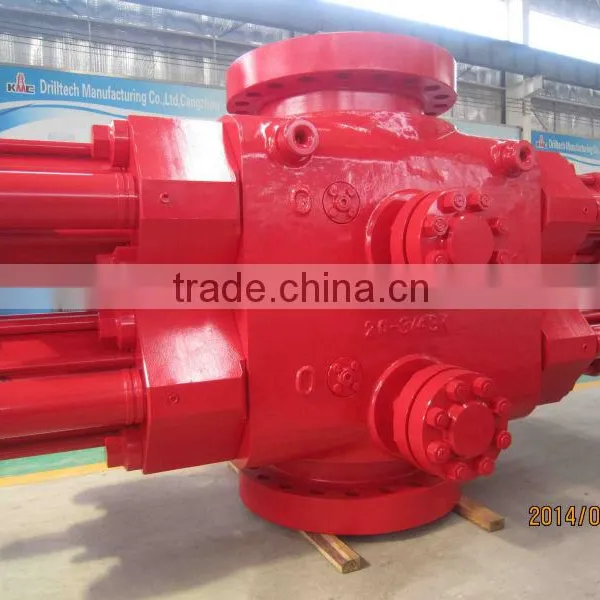

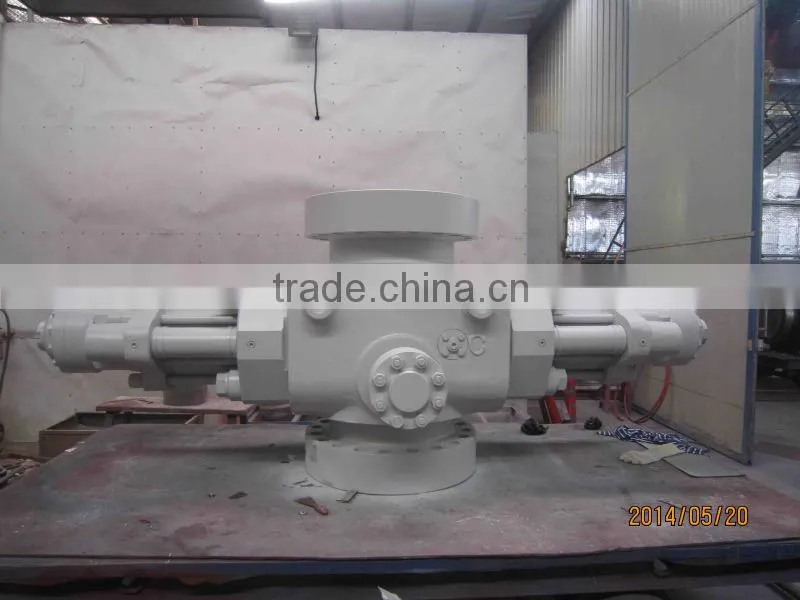

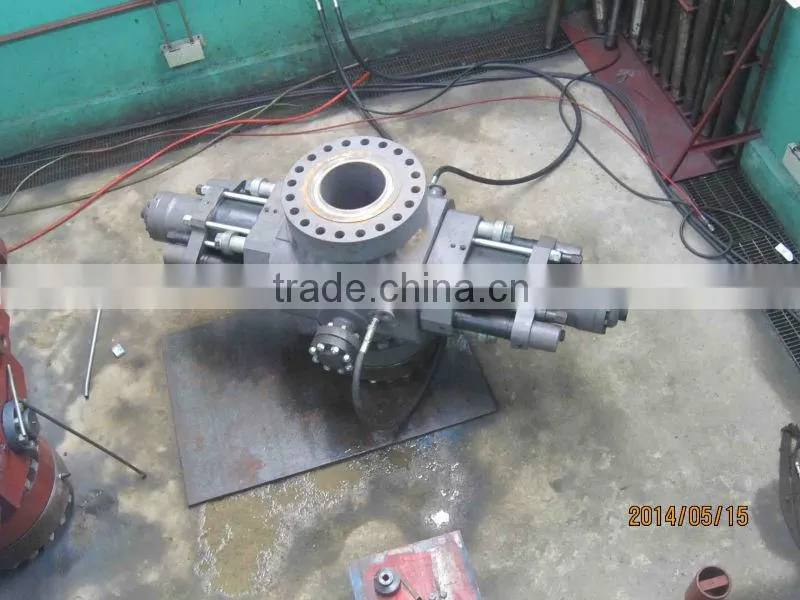

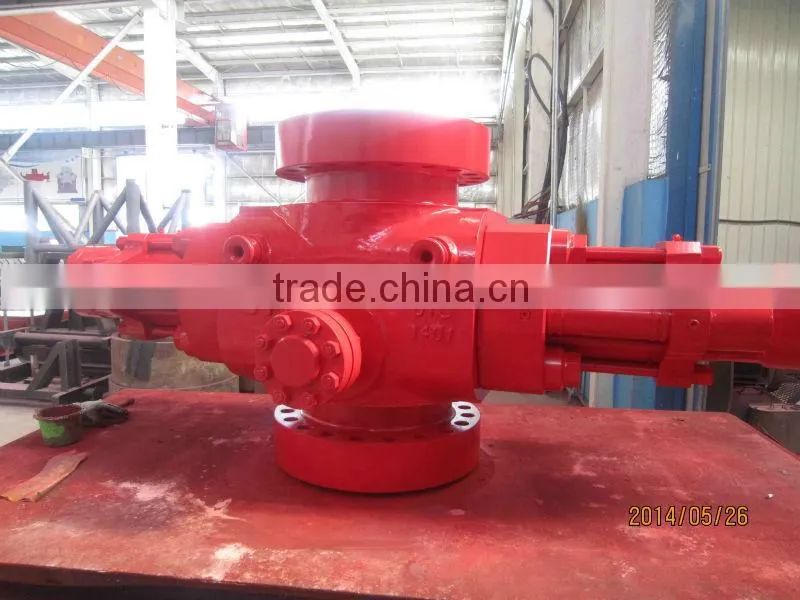

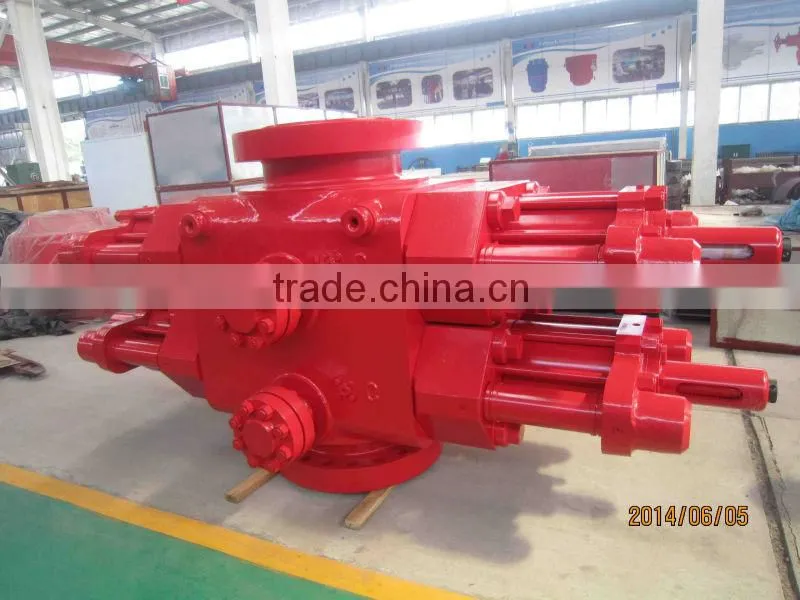

20 3/4" 3000psi Double Ram Cameron Pipe Ram BOP

Iron sheet case or according to clients' requirements

Specifications

Double ram blowout preventer
Bore : 20 3/4"
API Spe.16A
NACE MR-01-75
Manual and hydraulic locking system

Style: Double ram bop

Bore:from 7 1/16'' to 21 1/4''

Working pressure: from 10,000psi to 15,000psi

Top connection:6BX BX157/158/159 SST Studded

Bottom connection:6BX BX157/158/159 SST Flange



Features:

1,Pipe ram,blind ram,variable bore ram and shear ram are all available;

2,It's easy and convenient to change rams along with openning bonnets by hydraulic pressure;

3,the outlets on the both sides of the body make operation on side flexible;

4,Manual locking system and hydraulic locking system are available;

5,The pressurize self-sealing sealing mechanism is used between the body and bonnents,as to apply too much pretightening force to secre the reliability of sealing;
