Help CenterCNC Plasma Cutting/CNC Plasma ADT-HC6500
Related Products
Specifications
CNC Plasma cutting1.Power anti-interference Plasma cutting software
2.Stable hardware structure
3.CE,ISO

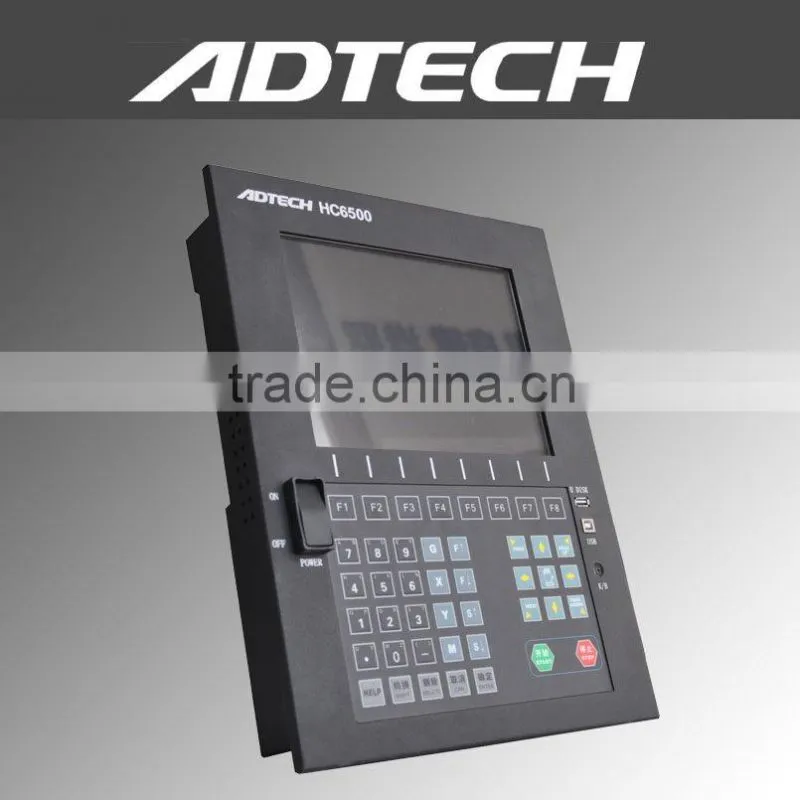

ADT-HC6500 Gantry Flame/CNC controller for plasma cutter uses 10.4 Inch LDC display screen. ARM9 processor technology, it available 4 Axis step/servo motor control, powerfully anti-interface performance, single program can save 50 thousand lines of processing code, at the same time, it can supporting external standard PS keyboard, and USB upgrade the program. ADTECH plasma cutting system passed CE, Operation easily and conveniently. It can applied in Gantry plasma/Flame cutting machine and CNC plasma/gas cutting machne.
ADTECHCNC controller for plasma cutter Characteristics:
1) Perfect flame / plasma cutting processes;
2) Support numerous functions, including time delay, preheating, perforating, changing nozzle, moving parts, lift adjustment, displacement perforating, partial image zoom-in, and view;
3) Perforation point selection is supported;
4) With suspended function; it can go back to the suspended position and continue carrying out the program if there is movement after the pause;
5) Track continuous backing function is provided;
6) With plasma arcing detection, initial positioning, and turning signal control functions;
7) Break point recovery function, featuring power-off protection during the processing;
8) Graphic library contains a great number of part figures, which can be edited to generate programs automatically. Rectangle edge-sharing function is supported;
9) Figure processing functions enable it to carry out such functions on figure being processed as rolling, X and Y mirror, line selection, point selection, steel plate calibration, size, array, derangement, and zoom in/out;
10) Figure display function, capable of displaying real-time track;
11)Capable of programming; nest processing files and writing G code are adopted;
12) Perfect and stable file system; the USB disk can read file or folder directly, featuring convenient on-scene operation;
13) With diagnosis function, helping customers settle the machine problems quickly;
14) Capable of controlling 4 stepping/servo motors at the same time, double axes can be synchronous, or the 3rd and 4th axis functions can be developed once again according to the actual demand;
15) System default setup and restore functions can better protect the system parameters;
16) Enable to custom the input and output terminals to improve the system performance, benefiting the future maintenance;
17) User-defined M compound instruction code is supported to expand the processing technologies of the system;
18) Support input methods in many languages, which would be better to identify the file name;
19) User-friendly operating interface with wizard or menu function is adopted;
20) Flame cutting controller owns perfect gap compensation function;
21) Flexible switching of locking and inching is supported;
22) 10.4 inch color LCD display, with user-friendly and easy-to-use operating interface.
