Specifications

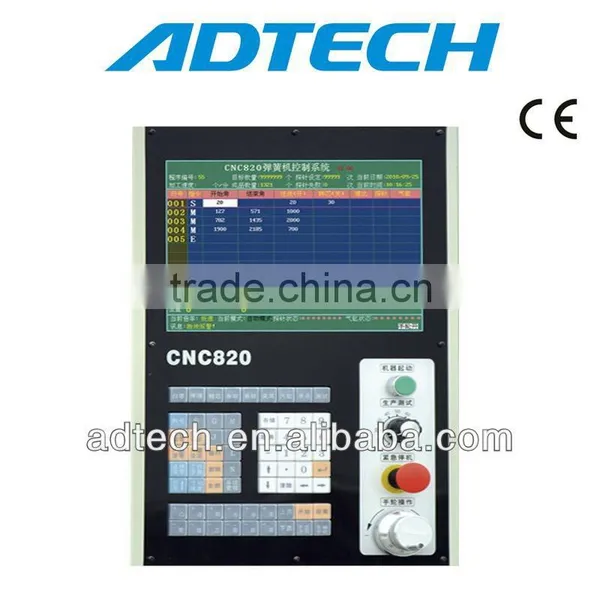

ADT-CNC820/6 is six axis spring controller which widely applied in kinds of former spring machine and spring equipment.Product feature
- 15 inch color LCD display,resolution:640*480;
- Supports U disk function , Convenient system update;
- Supports USB and RS232 communication function, connect with computer conveniently ;
- Adopt ARM9 handler , high efficiency;
- 4-6axis servo control;
- Supports 8 groups of probe cylinders;
- Handwheel processing and test processing function;
- Optional hand-held boxes to facilitate the transfer machine
- Rich in safety inspection function;
- Visible, simple and easy programming
Product Function
l Simple and visual form programming is adopted, Chinese and English display are optional.
l Data could be entered after having moved all shafts to the destination position manually, or be edited directly for the spring programming.
l On-line programming function, can program without stopping machine while processing.
l Cam, wire feeding, rotation core are worked at the same time. The precision of wire feeding is ±0.01mm, the cam and wring angle axes can be accurate as ±0.1. Every rotation shaft has independent functions of zero returning.
l Support wire frame tangled lines, break the alarm detection and wire frame accelerated output function.
l Support as many as 8 groups of probes and cylinders operating, high speed probe testing ensures the accuracy of the springs.
l Conditional transfer and absolute transfer are supported, which improve the flexibility of programming and make it easy to detect the defects.
l Support revolving programming function
l The system provides several groups of system parameters for conveniently maintaining the system and changing the parameters.
l The code verification function could prevent others from changing the system parameters without authorization. The program can save as many as 1000 files.
