Help CenterCNC Spring Coiler GH-CNC580
US$ 1 - 1
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ADTECH
Model Number:
GH-CNC580
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4 Axes PCI Motion Control Card ADT-8948NegotiableMOQ: 1 Piece -
CNC Brush Making Controller ADT-ZM400BNegotiableMOQ: 1 Piece
-
Brush Making Machine Controller ADT-ZM310US$ 1 - 1MOQ: 1 Set
-
Universal Type Lathe CNC SystemNegotiableMOQ: 1 Piece
-
4 Axis CNC Milling System ControllerNegotiableMOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
ADTECH
Model Number
GH-CNC580
Specifications
1.GH-CNC580 is a 5 axes computerized compression spring machine,including wire feeding axis,outside diameter axis, space axis a-

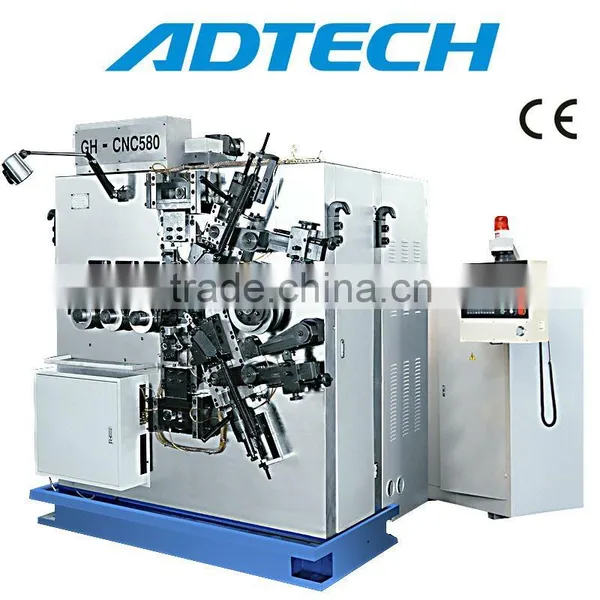

5 axes CNC spring coiling machine GH-CNC580 feature:
- GH-CNC580 is a 5 axes computerized compression spring coiling machine,including wire feeding axis,outside diameter axis, space axis and cutting tool axis.
- Wire feeding axis is controlled by a 25KW servo motor,can feed unlimited length,and tolerance is between 0.1mm.The highest feeding speed is 30meters/min.
- The cutting tool axis has 2 sets 7kw servo motors,separatelly control the upper and lower blocks.
- space axis is controlled by a 3.8KW servo motor,and it could gurantee high precisely pitch of screw by a ball screw.
- outside diameter axis is controlled by a 2.7KW servo motor,through cam and planar lever to change it.
Technical paremeters for 5-axis cnc compression spring machine GH-CNC580:
Model
GH-CNC580
Axes Number
5
Wire size
3-8mm
Outer diameter
150mm
Max. Feeding length
unlimited
Wire feeding servo motor
25kw
Cutterservo motor
7.0kw
Outside diameter servo motor
3.8kw
Pitch servo motor
2.7kw
Power AC
380V 50Hz
Dimensions(LxWxH)
2500x1800x2250mm
Weight
8000kg
