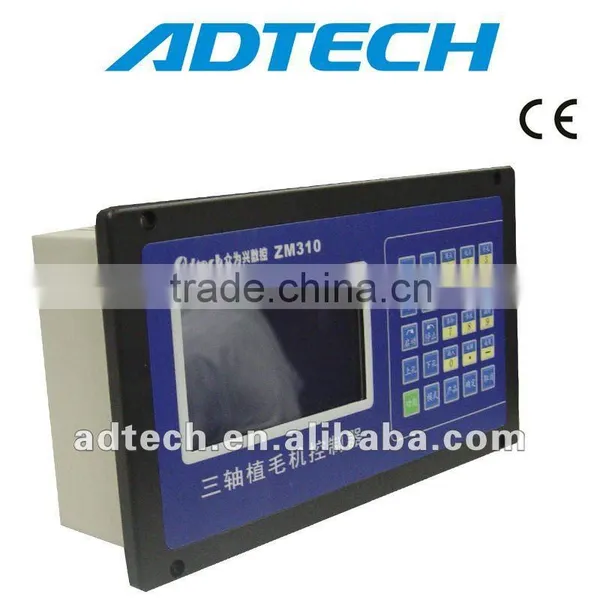

Help CenterBrush Making Machine Controller ADT-ZM310
Related Products
Specifications
1) Designed for brush-making machine;2) High speed tufting machine controller;
3) High precision brush machine controller.
Product characteristics
Strong anti-interference ability
Be able to customize the system.
Users can upgrade the system by themselves.
Short circuit protection for output; with long product life
Multifunction, reasonable price, best cost-effective in the same products.
Product features
Self-colored display screen, 240*128 resolution
3 axes stepper & servo motor controlling.
Chinese and English operating system.
Tufting speed can reach 700 holes per/min.
Support bicolor hair planting.
Maximum storage of 2000 processing files with each up to 100,000 holes
High-speed built-in CPU enables fast and stable processing.
U-Disk function enables fast and convenient copy of processing files among different machines.
Support Z axis 360 unlimited rotation
Short circuit protection for output; with long product life
Function Introduction
Two operation modes of processing data: configuring and editing
Automatic / semi-automatic / test-work processing modes are optional.
Hole-dividing function, can create regular graphics of hair-planting or drilling hole quickly.
Reproducing function, supports the whole and parts of the processing hole reproducing, no need to input the processing data over again.
Parallel locomoting function enables holistic parallel locomoting of hole position of brushes perfectly and then process it, which make the operation easily and quickly, no need to modify data manually.
Editing functions of processing data, such as ADD, ALT,INSERT, DELETE, make it convenient to solve these problems: the deviation of hole position, hole-repeating and hole-missing.
You can process the hole where you are appointing.
For long processing hole distance, you can decelerate the main shaft until the platform is in the right position, or stop the main shaft at a high place until the platform is in the right position.
Various kinds of types are made automatically, such as plum blossom shaped holes, Herringbone holes, elliptical holes etc.
Various alarm functions: repeat tufting alarm, servo alarm, brush plate alarm, air pressure alarm, aluminum wire alarm and etc.
High-position shutdown when changing color.
Set all kinds of processing parameters for machines, such as speed of processing, configuring, returning to origin and skipping distance of each axis.
Screen Saver function.
Password saver function.
Self-testing input/output signals helps users to clear the faults quickly and easily.
Application
Three axes guiding-type brush machine
Three axes brush drilling machine
compressed-thread brush machine
horse-nail brush machine
orbicular brush machine
three axes besom brush machine
three axes rolling brush machine
three axes dishing brush machine
