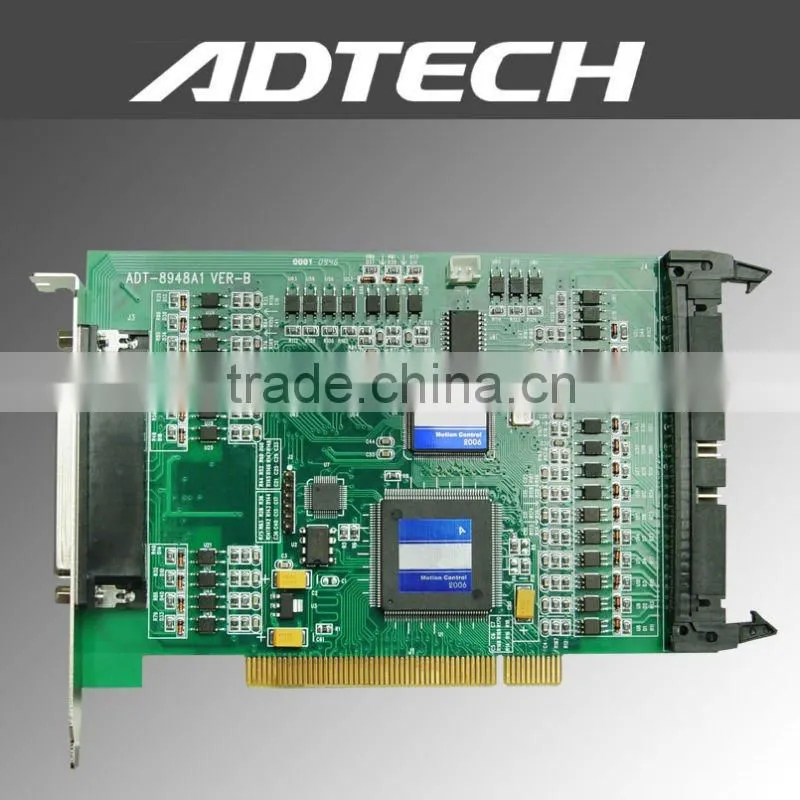

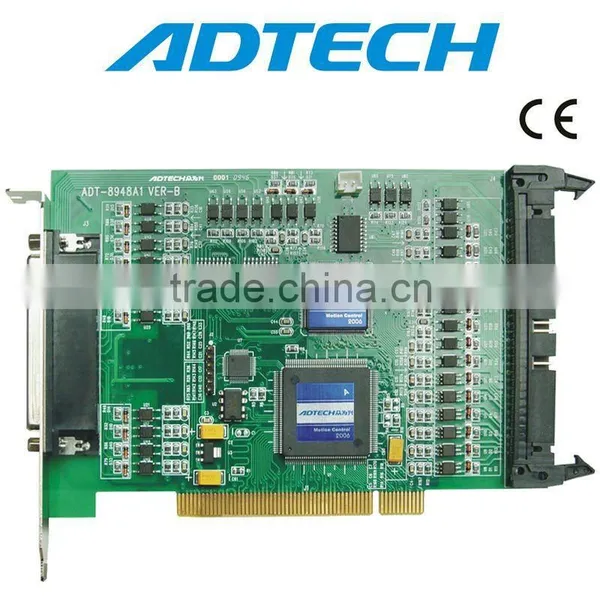

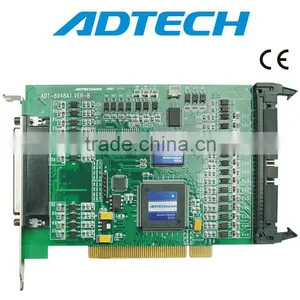

4 axes PCI motion control card ADT-8948

Specifications

1. 32-bit PCI bus, PnP
2. 4-axis servo/stepper motor control; each axis can control independently
3. The frequency error of pulse input is less than 0.1%
4. Maximum pulse output frequency is 4MHz
5. Pulse output can be either single pulse (pulse + direction) or double pulse (pulse + pulse)
6. All the 4 axes have position(coder) feedback input; 32-bit counting; maximum frequency is 4MHz, maximum counting range: -2,147,483,648~+2,147,483,647
7. Offer many kinds of control modes such as quantitative motion, continuous motion, back-to-home motion, multi-axis interpolation, arc interpolation and continuous interpolation
8. Linear or S-curve acceleration/deceleration
9. Asymmetric linear acceleration/deceleration
10. 2-4 axes linear interpolation, arc interpolation
11. Each axis has two 32-bit compare registers, which can be used for software limit
12. Receive signals from servo motor drive, e.g. coder Z-phase signal, in-position signal, alarm signal, etc
13. Each axis has 3 STOP signals, which are used to search for home and Z-phase of coder
14. The speed can be changed in real-time in the motion process
15. Read the logical position, real position, driving speed, acceleration and driving state in real-time in the motion process
16. Position counter is integrated with variable cyclic function; the logical position counter and actual position counter are 32-bit up/down cyclic counters
17. Each axis has 8 input signal, include 2 positive/negative limit signals,3 stop signals,1 servo in-position signal, 1 servo alarm signal and 1 general input signal. Except limit signals, other 6 signals can be used as general input  signals by setting them as invalid.
18. Handwheel and external signal operation
19. Up to 16 motion cards can be used in one system, control 64 axis
20. Support operating systems: DOS, WINDOWS95/98/NT/2000/XP, WINCE
21. Support developing software with C, VC++, VB, BC++, C++builder, LabVIEW and Delphi is possible.

Applications:



Carving machine, Cutter, Laser carving, Laser cutting, Graphic plotter, Tapping machine   Dispensing machine, Welding machine, Drilling machine, Punch machine

Automatic detection of electronic fitting, Automatic detection of press, Cutting and welding of semiconductor, All kinds of NC cutting

Industrial robot, Measure of space coordinates, Biological and medical auto-sampling and processing equipment
