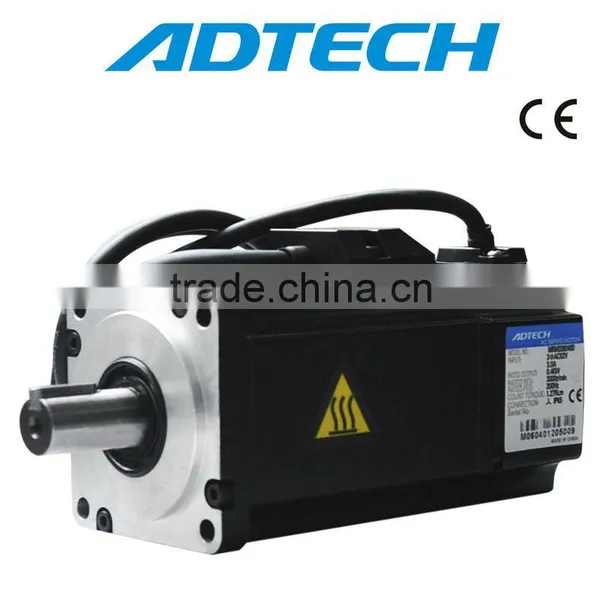

AC Servo Motor MRMS06040D

Name: AC Servo Motor MRMS06040D
Brand: ADTECH
SKU: 107842459
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

ADTECH

Model Number:

MRMS06040D

Type:

Servo Motor

ADTECH (Shenzhen) Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Brand Name ADTECH

Model Number MRMS06040D

Type Servo Motor

Output Power 400W

Phase Single-phase

Certification CE

AC Voltage 208-230 / 240 V

Place of Origin Guangdong, China

Specifications

1.400W servo motor, 3000prm/minute;
2.Low-inertia series servo motor;
3.High quality ac servo motor;
4.Voltage: 220V

MRMS06040DAC Servo Motor

Label Instruction
Mode	MRMS06040D-
Phase	3 phase	Voltage	AC220V
Current	3.0A
Rated power	200W
RPM	3000 rpm
Input frequency	200Hz
Torque	1.27Nm
Connect Mode	Y connect	IP Grade	Dust-close drip-proof
MRMS 06 040 D Rated speed C=2500RPM Rated power 0.4KW D=3000RPM Flange 60mm E=3500RPM Adtech Servo Motor

MRMS Series AC Servo Motor Parameters List

Mode	MRMS-	06020D	06040D	08075D	08100D
Rated power	W	200	400	750	1000
Rated voltage	V	220(AC)
rated speed/max speed	Rpm	3000/3600
Rated torque	Nm	0.637	1.27	2.39	3.3
Peak torque (instant)	Nm	1.91	3.81	7.2	9.9
Torque coefficient	Nm/A	0.507	0.543	0.612	0.753
Rotational inertia	kgm2x10-4	0.215	0.382	0.951	1.18
Rated current valid	A	1.45	3	5	5.5
mechanicaltime constant	ms	0.16	0.76	0.62	0.54
Encoder	2500 PPR 9 pin (Incremental 15 pin/Absolute )
Working mode	S1 (continuous working)
Insulation grade	F class (150°C)
DielectricVoltagewithstand	AC:1500V,1min
Insulation resistance	DC:500V,≥10MΩ
Structure	Complete shut-off, self-cooled
Vibrate	Under 2.5 G
Altitude	Under 1000 M
Operate environment	Temperature:0~40°C,Humidity:under 90% RH
Installation	Flange install

Static/dynamic friction torque	3.0Nm / 2.5Nm
Interval	0.2mm
Power	12W
Voltage of start	DC 18V
Exciting voltage	DC 24V
Weight	1.45kg
