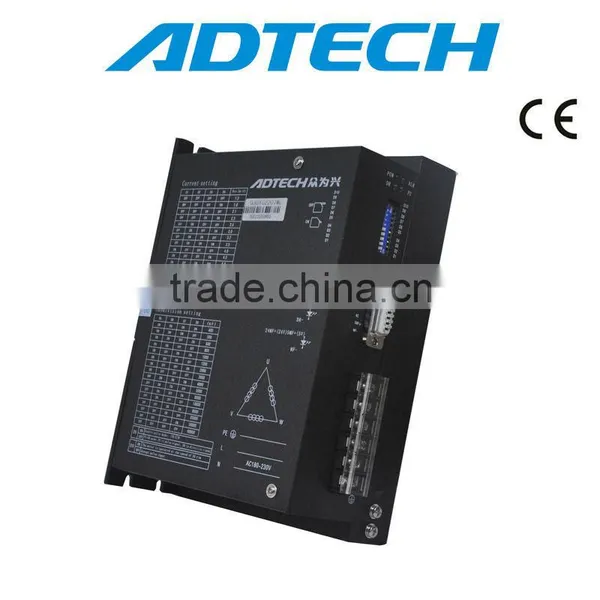

3 Phase Hybrid Stepping Driver Q3BYG2207MC
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
ADTECH
Model Number:
Q3BYG2207MC
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
QS7AA030M Signal Phase AC Servo Driver 220VNegotiableMOQ: 1 Set -
2-Phase Stepper Drive Q2BYG806EMNegotiableMOQ: 1 Set
-
400W AC Servo Motor MRMS06040DNegotiableMOQ: 1 Set
-
2 Phase AC Servo Motor Driver QS7AA050M2NegotiableMOQ: 1 Set
-
3-phase Hybrid Stepping Driver Q3BYG2207MBNegotiableMOQ: 1 Piece
Place of Origin
China
Brand Name
ADTECH
Model Number
Q3BYG2207MC
Specifications
3-phase stepper motor controller1)maximal resolution:60000 step/rotation
2)low noise, low heat, high efficiency motor driver
Q3-BYG2207MC 3-phase Hybird Stepper Motor Driver. The I/O signals are isolated by photoelectric mode. Auto half-current locking. Power interruption protection Failure protection function Optional sub-division, enabling (MF) function. Low noise, low heat,
| SK. | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| Pulse/r | 60000 | 30000 | 20000 | 12000 | 10000 | 6000 | 5000 | 4000 |
| SK. | 8 | 9 | A | B | C | D | E | F |
| Pulse/r | 3000 | 2000 | 1200 | 1000 | 800 | 600 | 500 | 400 |
| Marks | Function | Remarks |
| PU+ | Positive terminal of photoelectric isolation for input signal | Connected to +5V power supply, programs with voltage of +5V- 24V can be driven. If higher than +5V, the current-limiting resistor is needed. For details, please refer to the part of input interface. |
| PU- |
D2=OFF: Stepper pulse signal; D2=ON: Positive stepper pulse signal |
Descent edge is effective. The motor moves for one step when the pulse changes from high value to low value. The input resistance is 220Ω. Requirements: Low electrical level: 0-0.5V; high electrical level: 4-5V; pulse width>2.5us. |
| DR+ | Positive terminal of photoelectric isolation for input signal | Connected to +5V power supply, programs with voltage of +5V- 24V can be driven. If higher than +5V, the current-limiting resistor is needed. For details, please refer to the part of input interface. |
| DR- |
D2=OFF: direction control signal; D2=ON: reverse stepper pulse signal |
Used for changing the rotating direction of the motor. The input resistance is 220Ω. Requirements: Low electrical level: 0-0.5V; high electrical level: 4-5V; pulse width>2.5us. |
| MF+ | Positive terminal of photoelectric isolation for input signal | Connected to +5V power supply, programs with voltage of +5V- 24V can be driven. If higher than +5V, the current-limiting resistor is needed. For details, please refer to the part of input interface. |
| MF- | motor releases signal | When in effective state (low electrical level), the current for the motor's winding is shut off and the driver stops working. Then the motor is in free state. |
| TM+ | Positive terminal of photoelectric isolation for home position output | When it is at the home position, the electrifying of motor’s winding is effective; photoelectric isolation output (high electrical level) |
| TM- | Negative terminal of photoelectric isolation for home position output signal | +terminal connected to the current-limiting resistor for output signal, TM connected to output place. Max. driving current: 50mA; max. voltage: 50V. |
| FL+ | Positive terminal of photoelectric isolation for over-heat/under-voltage protection | When the driver's temperature is higher than 70°C or the voltage is too low, the current for the motor's winding will be shut off and FL is set effective (low electrical level). When the temperature drops to 50°C, the driver will automatically resume its running and the FL signal be deleted. FL+ is connected to current-limiting resistor for the input signal, FL-to the output place. Max. driving current:50mA; max. voltage: 50V. |
| FL - | Negative terminal of photoelectric isolation for over-heat/under-voltage protection. | |
| ~AC | Power supply | AC110V~220V |
| +A,-A | Wiring for motor | |
| +B,-B |
Q3-BYG2207MA 3-phase CNC Stepper Motor Driver Feature parameter:
| Colling mode | air swept type |
| Environment Temperature | -20°C~70 |
