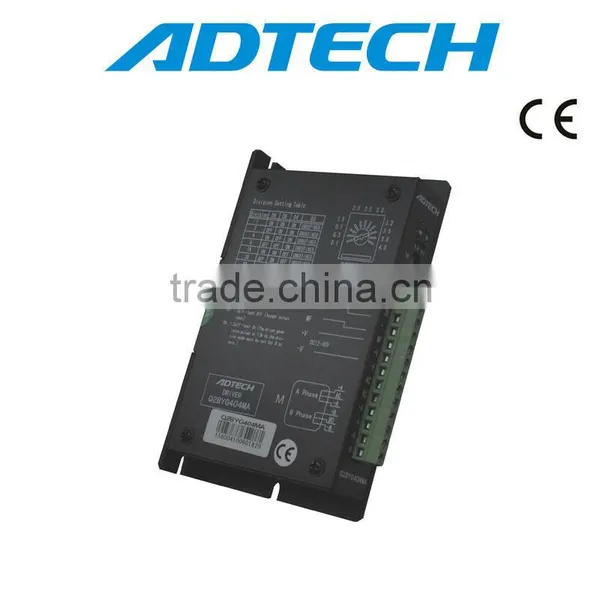

2-phase Hybird Stepper Motor Driver Q2BYG404MA

Name: 2-phase Hybird Stepper Motor Driver Q2BYG404MA
Brand: ADTECH
SKU: 107842435
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ADTECH

Model Number:

Q2BYG404MA

ADTECH (Shenzhen) Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ADTECH

Model Number Q2BYG404MA

Motor Type Stepper Motor

Specifications

1)Double pulse and single pulse Hybird Step Motor Driver
2)Voltage range 15V~40VDC
3)Low noise and strong technical surpport

Q2-BYG404MA 2-phase Hybird Step Motor Driver Feature:

DC power supply , with voltage range 15V-40V;
Photoelectric isolation signal input, signal compatible with TTL;
Auto current reduction in static state, maximum drive current 4.0A/phase;
Optional subdivision precisions with maximum subdivisions of 128;
Outer dimensions: 136*92*25mm;
Be able to drive two-phase hybrid 42 and 56 series stepper motors with four, six and eight wires.

Q2-BYG404MA 2-phase Hybird Stepper Driver Function description:

Functions	Marks	Remarks
Indicator	Power Supply	The indicator will be illuminated when the system works normally after electrified.
	Failure Indication	The indicator illuminated when in the overcurrent, overvoltage and overheat states.
Input Signal	DR+	Direction signals: high/low electric level signal when in single-pulse control mode; Reverse rotation signal when in double-pulse control mode
	DR-
	PU+	Pulse signal: pulse control signal when in single-pulse control mode; Obverse rotation stepping pulse signal when in double-pulse control mode.
	PU-
	EN+	EN signal: Input the signal to EN/stop. EN at the high electric level; the driver cannot work when at the low electric level. When not in use, suspend it.
	EN-
Power Input	V+	DC power supply positive: +DC15V~+DC40V
	V-	DC power supply positive: +DC15V~+DC40V
Output Signal	A+	Phase A of stepper motor
	A-
	B+	Phase B of stepper motor
