CNC4940 4 Axis CNC Milling Control Centre

Specifications

CNC4940 is a high end 4 axis CNC Milling Centre
10 inch LCD screen
Based on FPGA + ARM platform dedicated CNC system

Based and updated from ADT-CNC4840, ADTECH launch the new product ADT-CNC4940 CNC milling centre. It’s a high end CNC system uses ARM 9 CPU+FPGA, double core processor, with big screen and new functions such as build-in PLC, which supports linear/umbrella tool magazine. With professional input/output board, reducing the electrical cabinet wiring and machine manufacturer’s cost.

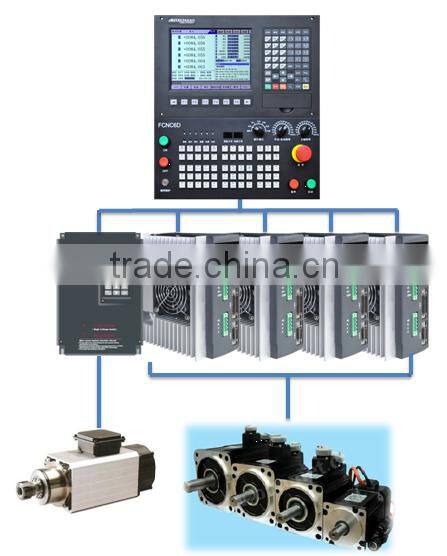

• 4 axis movement, 4 axis interpolation linkage movement.
• 4 stepper/servo motor control.
• Independent servo spindle.
• Speed prospect processing, control the speed transition smooth.
• Support straight line magazine, disc magazine, cylinder tool change and magazine features customize.
• System self diagnose and parameters backup, recovery function.
• Support USB, Ethernet, serial communication, U disk, SD card operation.
• Support MPG running G code.
• G code track preview, real-time tracking and syntax check function.

Function:

• Pulse frequency up to 1M;
• 56 input and 48 output ports;
• 2-channel 0-10v analog output Control;
• a set of PWM analog control port;
• 256M built-in electronic disk, support 8G storage space expansion.

Application:

• Metal parts processing (car / boat, electrical hardware processing industry).
• Glass products (mobile phones, televisions, computers, electrical switches and other glass panel processing).
• Wooden furniture garden art (furniture, handicrafts, wooden temple sculpture landscaping).
• Flexible processing line (milling, grinding, polishing and other processes producing line factory).



ADT-CNC4940 Six Axis CNC Milling Controller Relative Product:

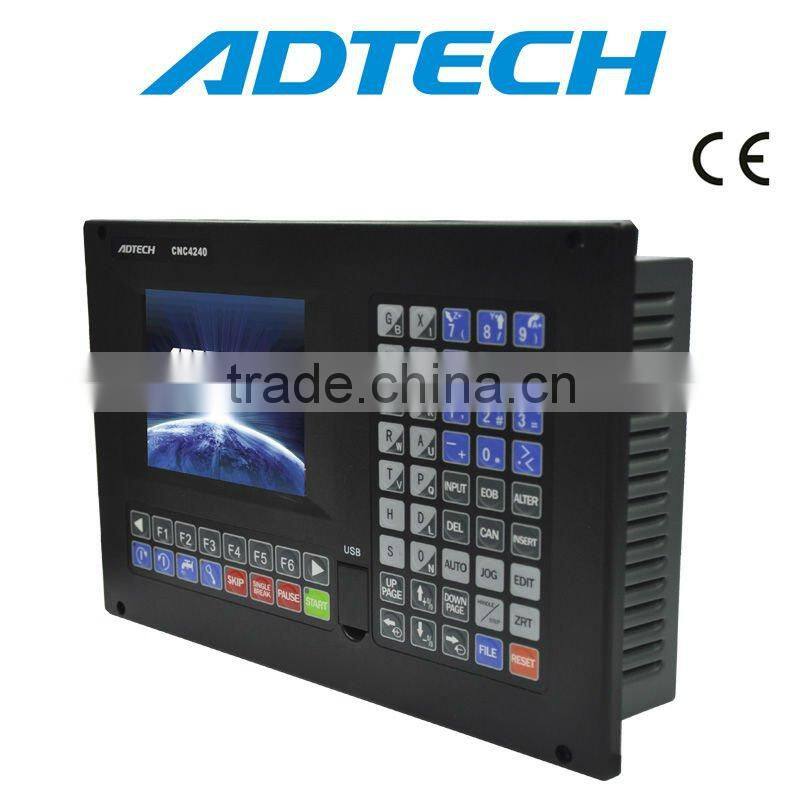

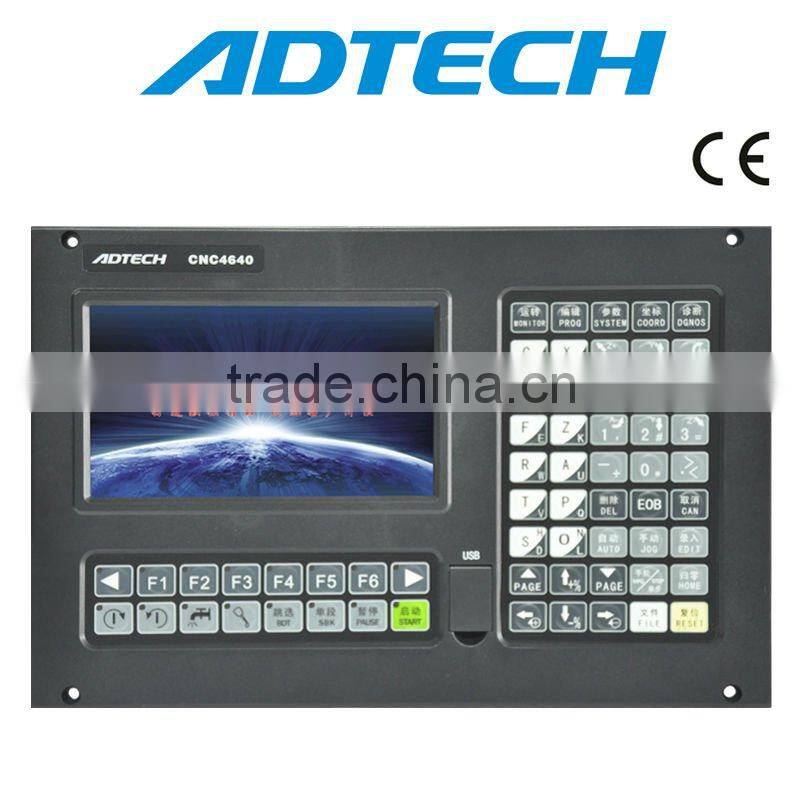

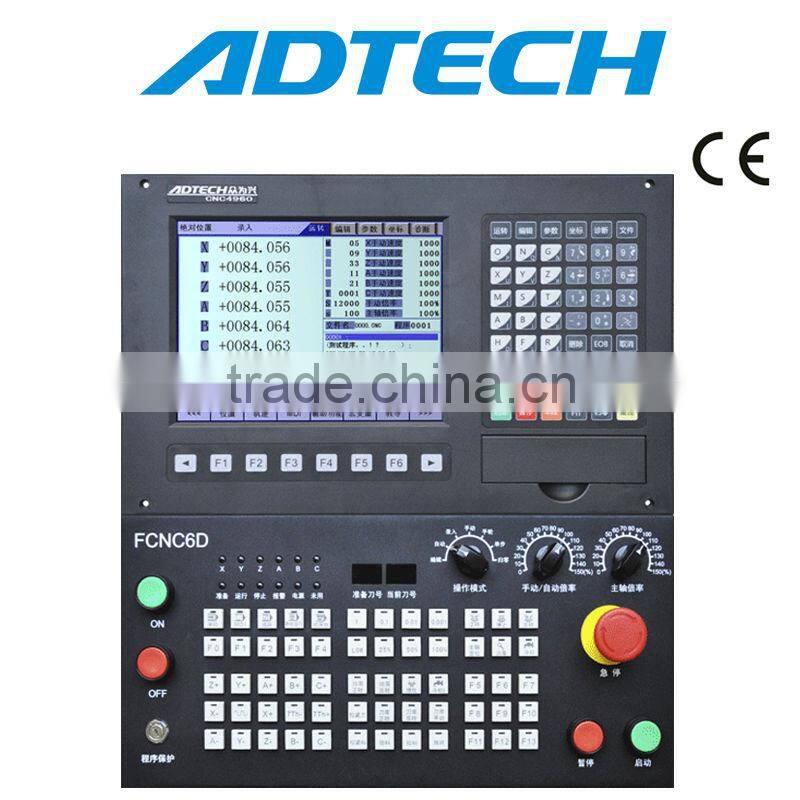

ADT-CNC4960 Four Axis CNC Milling Controller	ADT-CNC4240 Eonomic Type CNC Milling Controller	ADT-CNC4640 Four Axis CNC Milling Controller
