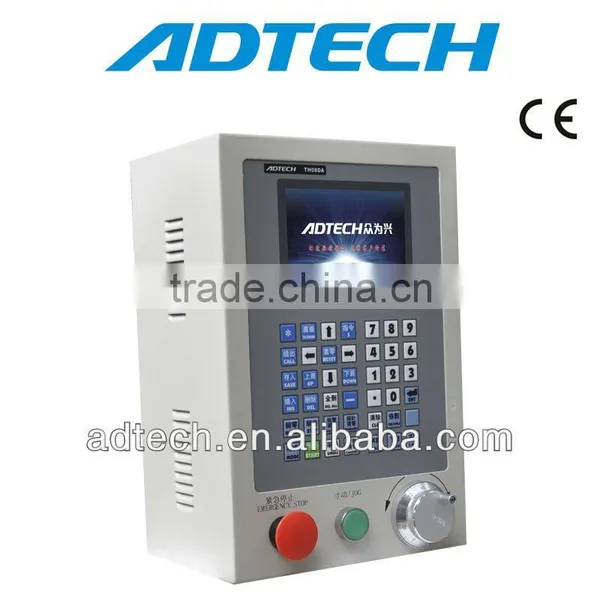

Help CenterTwo-Three Spring Controller ADT-TH08DA
Related Products
-
ADT-HC4500 CNC Flame/Plasma Cutting Controller5NegotiableMOQ: 1 Piece -
ADT-HC4300 Economical Type CNC Plasma/flame Cutting Control System5NegotiableMOQ: 1 Piece
-
CNC Plasma Cutting Control System ADT-HC6500NegotiableMOQ: 1 Set
-
ADT-CNC4960 Four Axis Milling/Drilling CNC ControllerNegotiableMOQ: 1 Piece
-
ADT-CNC4620 Lathe CNC ControllerNegotiableMOQ: 1 Piece
Specifications
1) special designed for sping machine2) 5.7 inch color LCD spring controller
3) 2-3 axes servo spring controller
4) CE/ISO
2-axis TH08DA Spring mahcine controller Product Feature
1. 5.7 color LCD
2.Two-three axes servo control
3.Supports four-eight groups of probe cylinders
4.Support wire frame tangled lines, break the alarm detection function.
5.Hand wheel processing,
6.testing processing
7.Visible, simple and easy programming
8.Comprehensive information clew function
2-axis TH08DA Spring mahcine controller Application
Compression spring former, Torsion spring former, Disc spring former
2-axis TH08DA Spring mahcine controller Performance Introduce
1. Simple and visual form programming is adopted, Chinese and English display are optional.
2. Data could be entered after having moved all shafts to the destination position manually, or be edited directly for the spring programming.
3. Cam, wire feeding, wring angle are worked at the same time. The precision of wire feeding is plus-minus 0.01mm, the cam and wring angle axes can be accurate as plus-minus 0.1degree. Every rotation shaft has independent functions of zero returning.
4. 2 axes control system support 4 groups of probes and cylinders operating, 3 axes control system support as many as 8 groups of probes and cylinders operating, high speed probe testing ensures the accuracy of the springs.
5. Conditional transfer and absolute transfer are supported, which improve the flexibility of programming and make it easy to detect the defects.
6. The system provides several groups of system parameters for conveniently maintaining the system and changing the parameters.
7. The code verification function could prevent others from changing the system parameters without authorization. The program can save as many as 100 files.
2-axis TH08DA Spring mahcine controller Optional parts:
Name |
Model |
Q’ty |
Remark |
Wire board |
TH834-F5 |
1piece |
Compulsory |
Data cable |
D25GG |
1piece |
Compulsory |
Data cable |
D9M |
2 piece |
Compulsory |
User's Manual |
|
1book |
Compulsory |
USB cable |
D15G |
1piece |
Optional |
Servo cable |
|
1 piece |
Optional |
Handheld box |
CNC4A |
1piece |
Optional |
size:
TH08DA CNC Spring Making Controller used on Compressing Spring Machine. See picture below:
