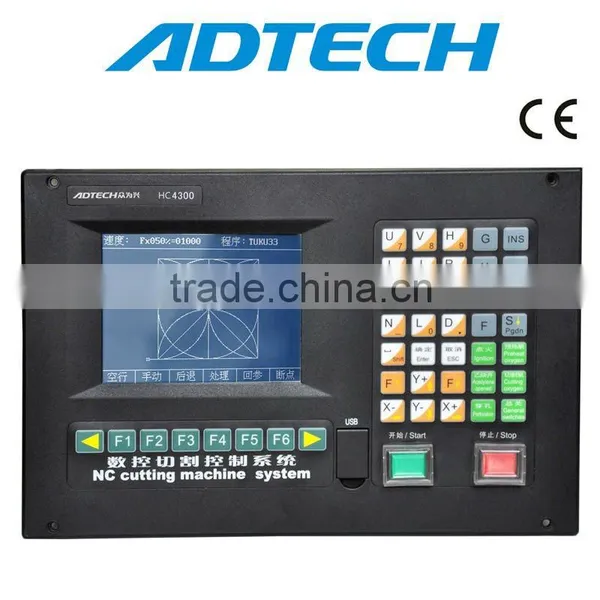

ADT-HC4300 Economical Type CNC Plasma/flame Cutting Control System5

Name: ADT-HC4300 Economical Type CNC Plasma/flame Cutting Control System5
Brand: ADTECH
SKU: 107839749
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ADTECH

Model Number:

HC4300

ADTECH (Shenzhen) Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ADTECH

Model Number HC4300

Specifications

1.portable cutting controller
2.ecnomical type
3.easy for operate

Display: 320*240; 5.7 Inch LCD display;
Memory: 32M RAM, 256M Flash ROM;
Control axis: 3 axes; Linkage axis: 2 to 3 axes;
Programmable input/output: 32/16 (fully optical coupler insolated);
Pulse output: pulse + direction or pulse + pulse;
USB, series port;
Support Auto-height controller;
Perfect plasma/flame Process; Kerf &gas compensation;
Adopt ARM7 processor technology.
Breakpoint recovery function, and power-off protection is offered during processing;

Plasma arcing detection, initial locating, and turning signal control;

Figure library;
Help on line: easier for the new users to guide;
Figure processing functions: Material Deployment, rotate, and X, Y Mirror on the process figure;
Functions of replacing gun nozzle of cutting gun, displacement perforation and moving parts;
Track can return to the origin continuously;
Delay, preheating and perforation functions;
Graphics display, real-time track moving display;
Processing files in the NCS can be copied to the U-disk;
User can copy the latest program to the controller by U disk to take the latest application update and upgrade;
Track input is done by CAD graphics file transmission via U disk and on-site manually writing G code;
Use 32-bit high-performance CPU and super-large scale programmable element FPGA, apply real-time multi-task control technology and hardware interpolation technology
Process structure of the whole machine is logical, and matched with full optocoupler isolation control, which has strong plasma anti-interference ability;
USB and RS232 serial communication control, the function of reading file by U disk directly, with easy on-site operations;
Stepping motor uses high-subdivision driver with high precision and stable running;
Signal inspection function is set inside, to help user resolve machine malfunction fast;
Available to control 3 stepping/servo motors at the same time, and two axes can synchronize or develop the function of the third axis again according to the actual requirements;
