Specifications
CNC flame cutting controller-ADT-HC8200Indutrial computer plasma controller
I/O : 28/29,
Hardare: 16G; Software:1G

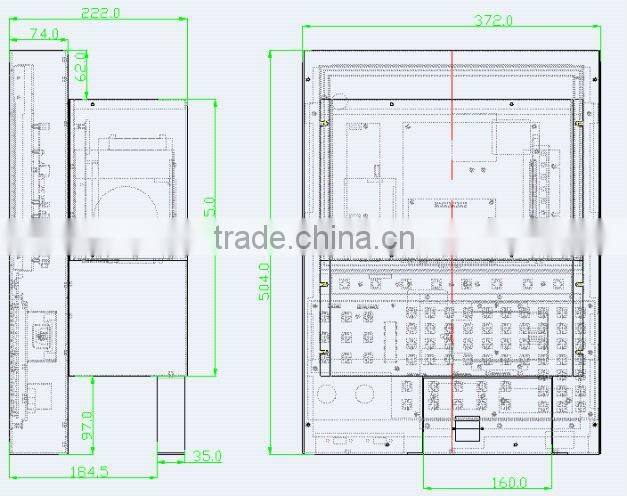

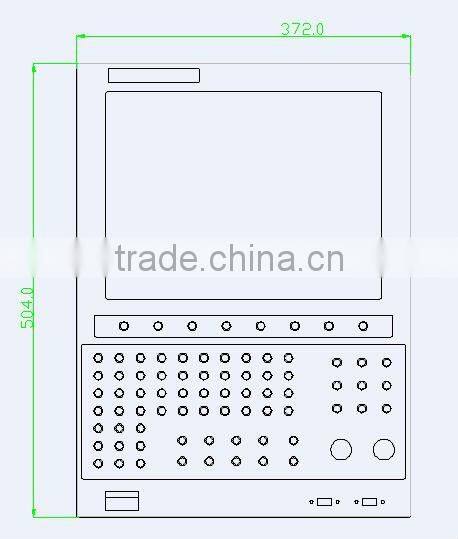

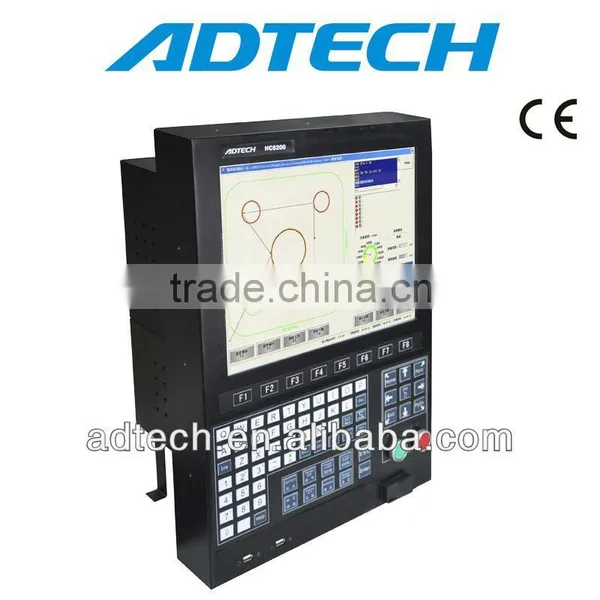

ADT-HC8200 cutting control system
ADT-HC8200 CNC flame cutting controller and plasma controller is new high-end gantry type controller for Flame / plasma cutting machine. It is a 4 axis CNC flame/plasma controller and it adopts industrial computer as the processing core and windows operating system, it can display processing code, support CAD DXF transfer. It is a desirable and trusted plasma/plasma cutting system by its stable quality of hardware, mature and completely of software.
ADT-HC8200 CNC flame control system is a high-grad type 4 axis step/servo control. Industrial computer control support window XP operation system, Multi-language compile, supports CAD, DXF file transformation.
ADT-HC8200 CNC flame control system feature:
- Windows operation system;
- IPC (Industrial computer) processor core;
- Multi-language compile, supports CAD, DXF file transformation;
- Perfect process for plasma/oxy-fuel cutting/ plasma mark/ powder-spraying laying out;
- Kerf, gas compensation function;
- User friendly operation interface; editable graphics library;
- The breakpoint memory function: supports sudden pause process memory, alarm & power off memory;
- Product Configuration:
- CPU: Intel(R) Atom(TM) CPU N270 @ 1.60GHz
- Display (all-in-one machine): 15 Inch industrial LCD colorful display screen
- Storage & Hardware: 1GB,16G, CF card
- USB: USB2.0
- Keyboard: industrial keyboard
- Case: Steel Structure
- Power: PS/2 standard, ATX Power,300W, AC 220 Input
- Interface Board Power: 24V
- Max. pulse frequency: 1HMZ
Components:

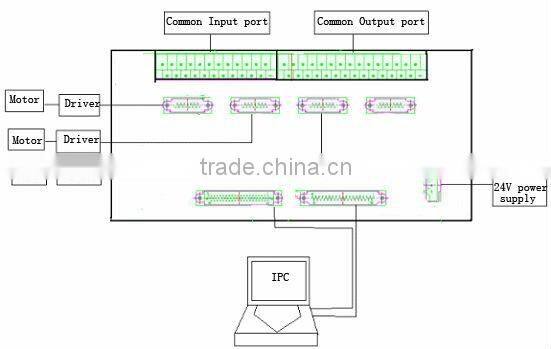

Electronic Box + Control Panel + Screen Display+ Data line + Connector
Optional Parts:
HC4A Wireless MPG + Nesting Software
ADT-HC8200 CNC flame control system Function
- Industrial computer as the processing core of this plasma controller. It adopts the windows operating system so that it could rapid process work with multi-task, multi-window and multithread technology and easy to operate.
- 15 inch industrial level LCD display can show plenty of information.
- Perfect flame/plasma/dusting alignment/plasma mark processing, gas compensation etc.
- Friendly human-machine interface, editable graphic libraries, vary graph, multi-language design as well as online helps system.
- Pause, continue, breakpoint & power failure memory, backward, forward and other practical functions.
- Super large storage space, can easily running big procedure.
- Support CAD DXF document exchange
- Support USB removable stockade and internet data transmit
- Optional transforms more than 5 sets cutting types like preview, flame, plasma, plasma mark & dusting alignment.
- Cutting sequence redefine functions when nesting support hand nesting.
- Support functions of quick-wear parts testing, replace, time remember and alarm etc.,
- Steel plate area cutting by user optional.
- Compatible ISO-G code and ESSI Code
|
HC8200 CNC flame/plasma cutting controller |
Product Model |
ADT-HC8200 |
Supply voltage |
88-264VAC, 125-373VAC |
Frequency |
47-63Hz |
TPY |
AC220V, 50Hz |
Power consumption |
No-load energy consumption < 300W |
Working temperature |
0°C-55°C |
Storage temperature |
-20°C-80°C |
Working humidity |
20%-95% |
Storage humidity |
0%-95% |
|
|
|

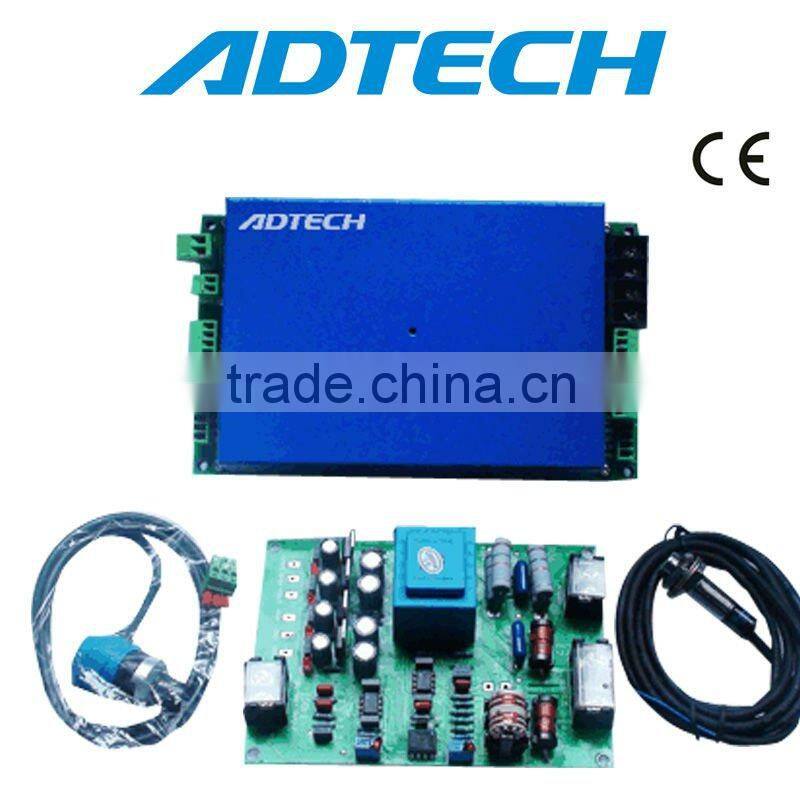

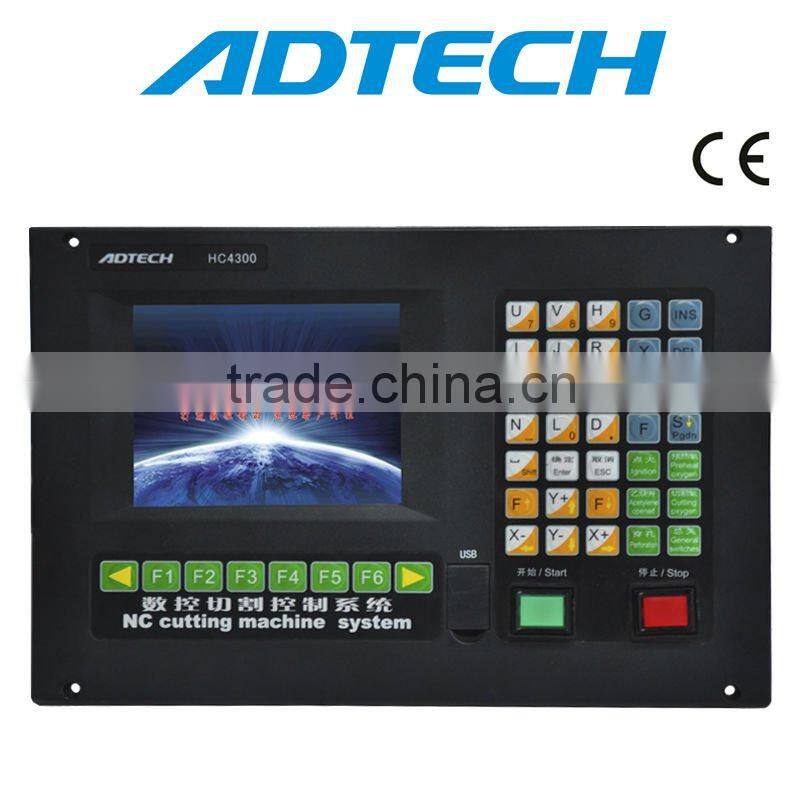

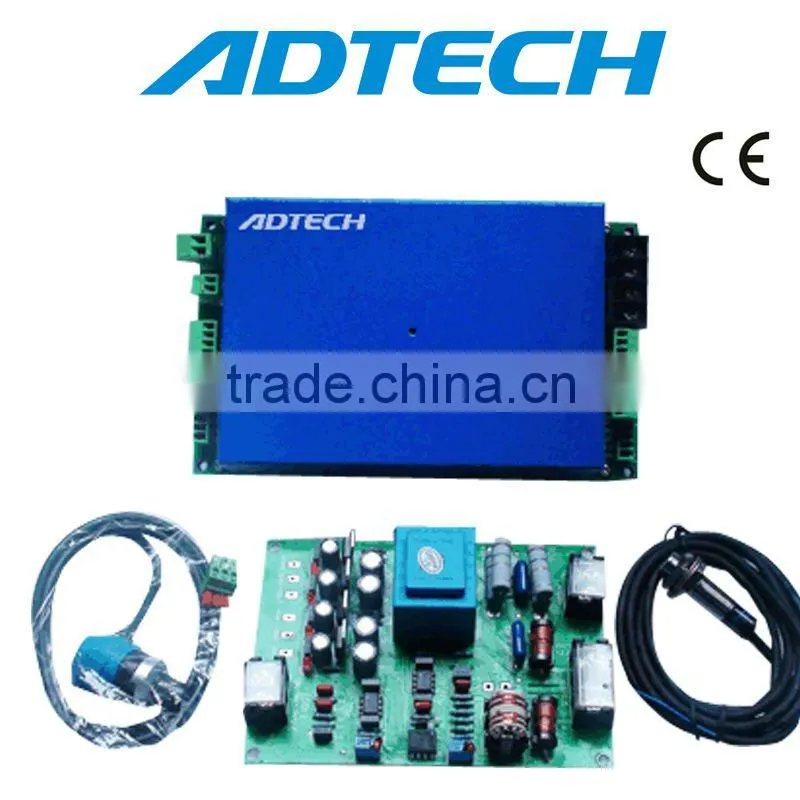

| ADT-HC4300CNC Plasma/flame cutting control system | ADT-HCA1003 CNC Plasma Torch Height Controller |

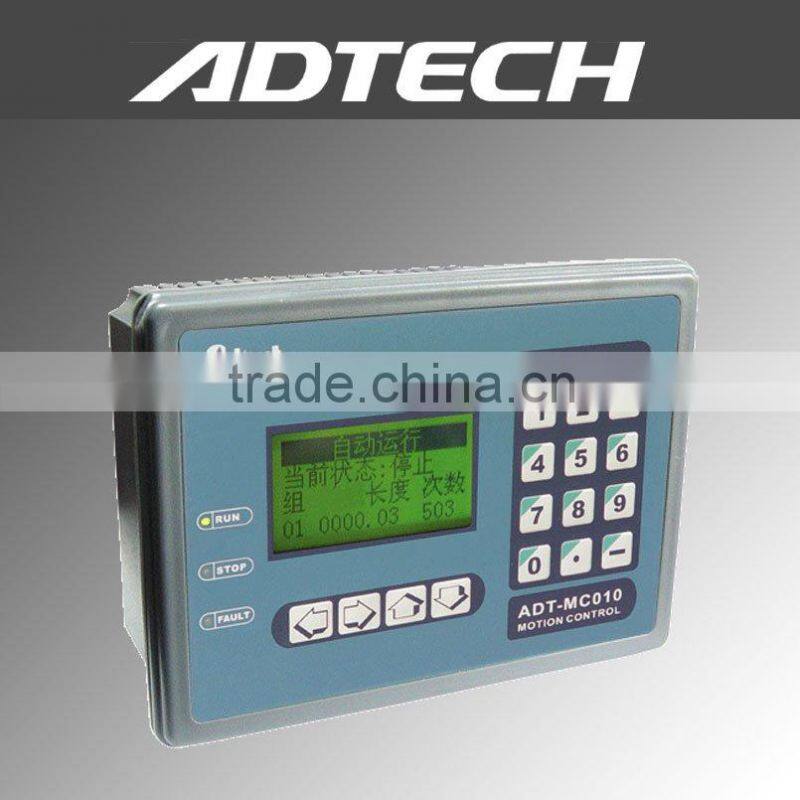

ADT-MC010 Controller For Sealing and Cutting Machine |
