ADT-CNC4640 4 Axis Cnc Milling Control System

Name: ADT-CNC4640 4 Axis Cnc Milling Control System
Brand: ADTECH
SKU: 107839495
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Milling Machine

Place of Origin:

Guangdong, China

ADTECH (Shenzhen) Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Milling Machine

Place of Origin Guangdong, China

Brand Name ADTECH

Model Number ADT-CNC4640

Specifications

1) 4-axis cnc controller
2) 7.0 inch color LCD display screen
3) New design model
4) ATC and macro function

ADT-CNC4640 Economic Type 4-axes cnc turning controller , it is updated version , and stronger function.

ADT-CNC4640 Economic Type 4-axes cnc turning controller Application:

Function:

Self-diagnosis
Diagnose CPU, memory, LCD, I/O interface, parameter state, coordinates and processing program comprehensively every time the system is started or reset; diagnose power supply, principal axis, limit and I/O ports in real-time during operating.
Compensation
Automatic reverse clearance compensation
Automatic tool length compensation
Automatic tool radius compensation
Automatic tool radius biasing and automatic tool tip transition
Abundant instruction system
Scaling instruction
Mirror processing instruction
Tool biasing instructions
Program cycle, program skip, program shift, program transfer, different end processing modes, macro definition and program management instructions
Fixed-point instructions: starting point, setting point, etc.
Linear, arc and spiral interpolation instructions
Six workpiece coordinate systems, nine extension coordinate systems and one reference point
Full English menu operation & full screen edit
4640/4620 CNC system uses cascading menu structure and full Chinese operation to ensure simple operation and visibility.
Abundant error-correction functions
Point out the nature and correct the errors in operation.
Program exchange between CNC system and PC
Perform CAD/CAM/CAPP auxiliary programming with abundant software in PC, and then transmit CNC program to the system through communication interface (USB disk, RS232 interface), or transmit the programs from the system to PC.

System operating condition

Operating voltage	24V DC (with filter)
Operating temperature	0°C— 45°C
Optimum operating temperature	5°C— 40°C
operating humidity	10%——90%(no condensing)
Optimum operating humidity	20%——85%
Storage temperature	0°C—50°C
Storage humidity	10%——90%
Operating environment	No excessive dust, acid, alkali, corrosive and explosive gases, no strong electromagnetic interference.

ADT-CNC4640 Economic Type 4-axes CNC Milling System Main Feature:

Optional Spare Parts:


Handheld box-CNC4A	(Additional panel- FCNC4M

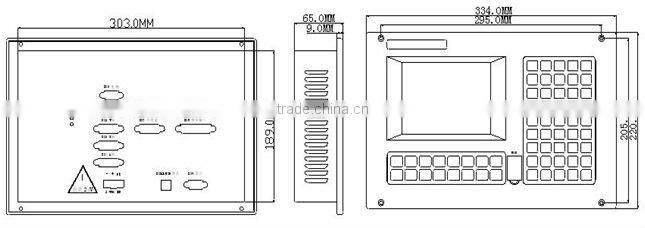

ADT-CNC4640 Economic Type 4-axes CNC Milling System SIZE:
